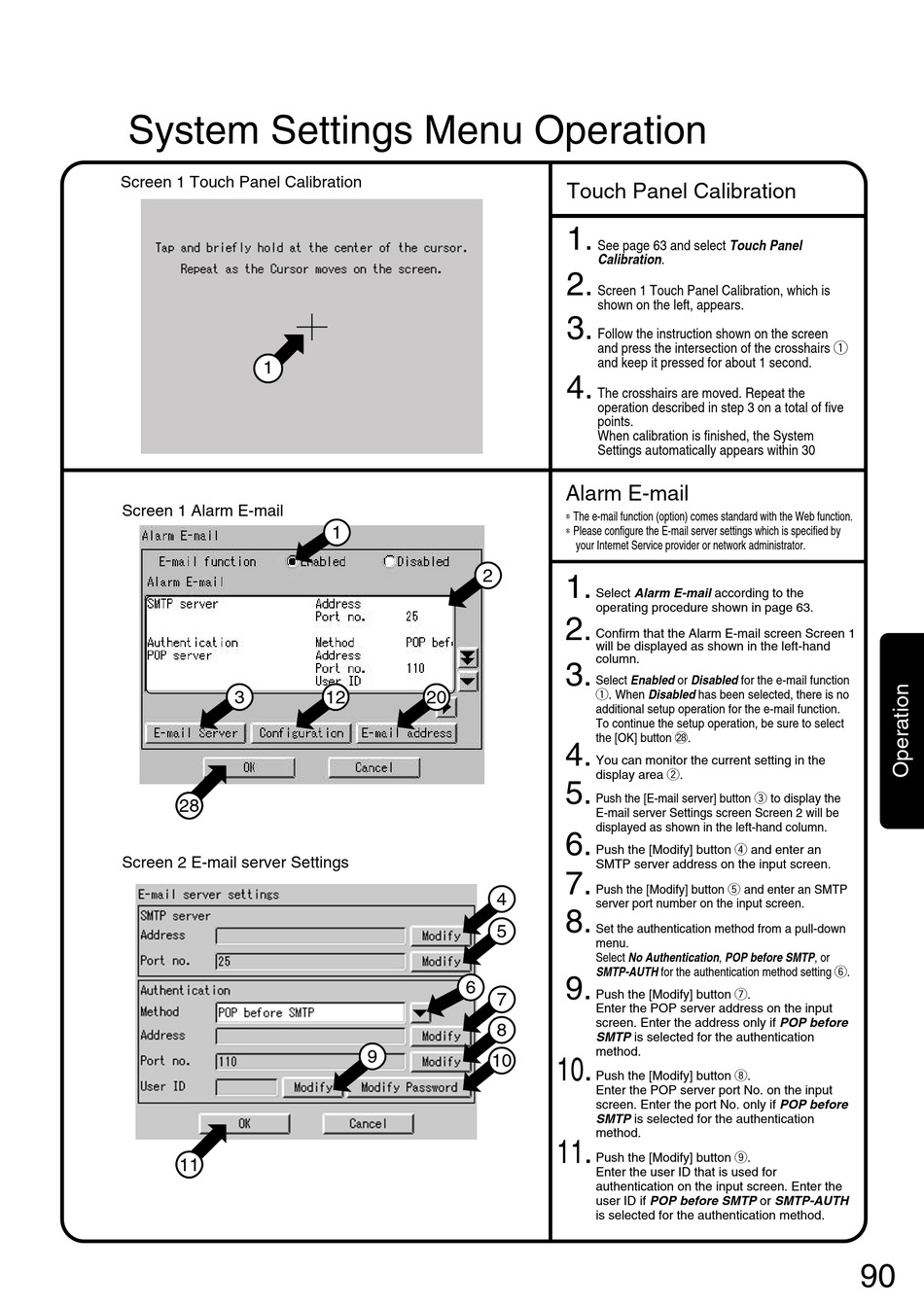

System Settings Menu Operation
Screen 1 Touch Panel Calibration
1
Screen 1 Alarm E-mail
3
28
5
Screen 2 E-mail server Settings
11
5
1
2
12 20
4
5
6
7
8
9
10
Touch Panel Calibration
1.
See page 63 and select Touch Panel
Calibration .
2.
Screen 1 Touch Panel Calibration, which is
shown on the left, appears.
3.
Follow the instruction shown on the screen
and press the intersection of the crosshairs q
and keep it pressed for about 1 second.
4.
The crosshairs are moved. Repeat the
operation described in step 3 on a total of five
points.
When calibration is finished, the System
Settings automatically appears within 30
Alarm E-mail
∗ The e-mail function (option) comes standard with the Web function.
∗ Please configure the E-mail server settings which is specified by
your Internet Service provider or network administrator.
1.
Select Alarm E-mail according to the
operating procedure shown in page 63.
2.
Confirm that the Alarm E-mail screen Screen 1
will be displayed as shown in the left-hand
column.
3.
Select Enabled or Disabled for the e-mail function
q. When Disabled has been selected, there is no
additional setup operation for the e-mail function.
To continue the setup operation, be sure to select
the [OK] button @8 .
4.
You can monitor the current setting in the
display area w.
5.
Push the [E-mail server] button e to display the
E-mail server Settings screen Screen 2 will be
displayed as shown in the left-hand column.
6.
Push the [Modify] button r and enter an
SMTP server address on the input screen.
7.
Push the [Modify] button t and enter an SMTP
server port number on the input screen.
8.
Set the authentication method from a pull-down
menu.
Select No Authentication , POP before SMTP , or
SMTP-AUTH for the authentication method setting y.
9.
Push the [Modify] button u.
Enter the POP server address on the input
screen. Enter the address only if POP before
SMTP is selected for the authentication
method.
10.
Push the [Modify] button i.
Enter the POP server port No. on the input
screen. Enter the port No. only if POP before
SMTP is selected for the authentication
method.
11.
Push the [Modify] button o.
Enter the user ID that is used for
authentication on the input screen. Enter the
user ID if POP before SMTP or SMTP-AUTH
is selected for the authentication method.
