Daikin intelligent touch Controller DCS601C51 Operation Manual page 30

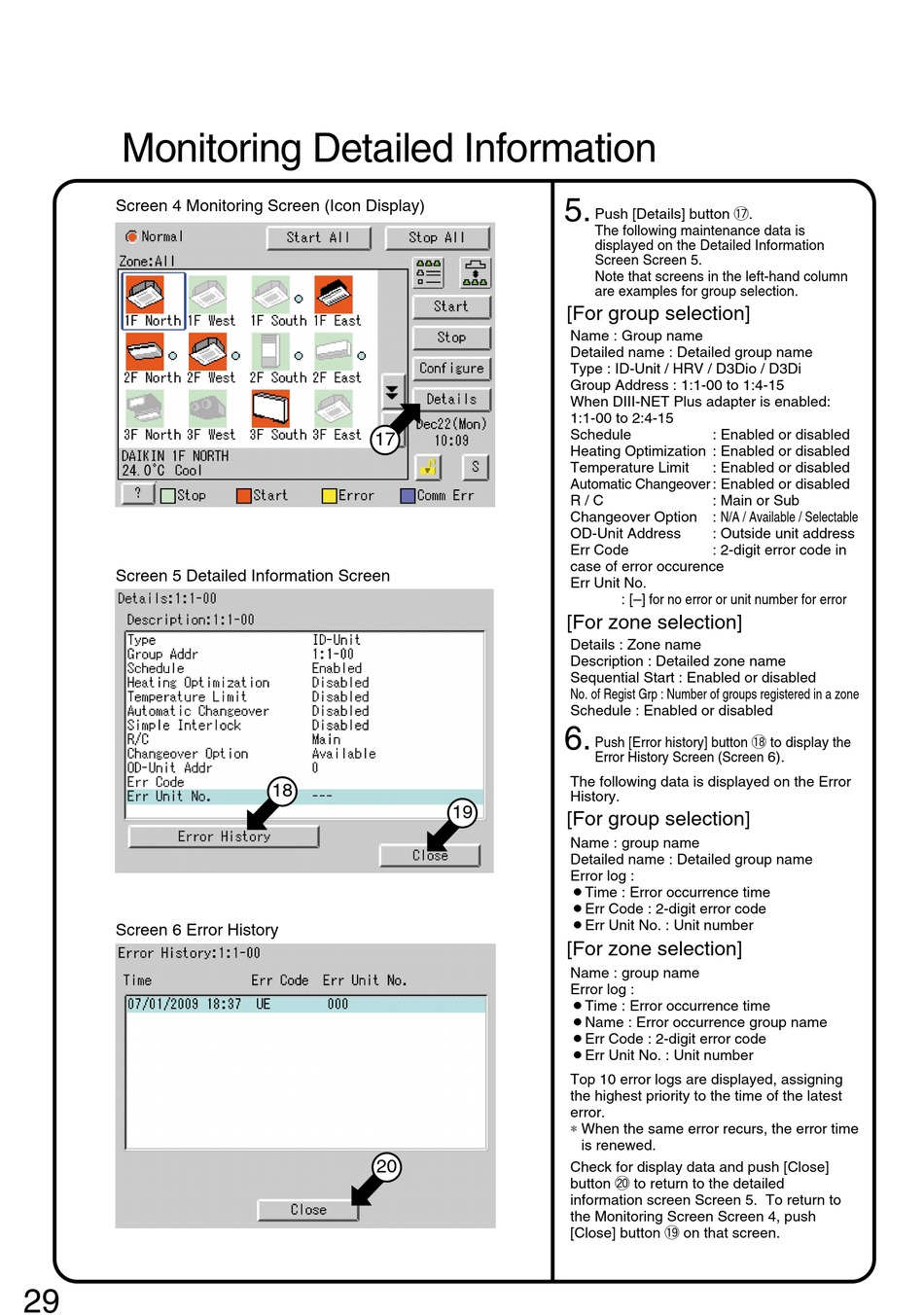

Monitoring Detailed Information
Screen 4 Monitoring Screen (Icon Display)
Screen 5 Detailed Information Screen
Screen 6 Error History
29
17
18
20
5.
Push [Details] button !7 .
The following maintenance data is
displayed on the Detailed Information
Screen Screen 5.
Note that screens in the left-hand column
are examples for group selection.
[For group selection]
Name : Group name
Detailed name : Detailed group name
Type : ID-Unit / HRV / D3Dio / D3Di
Group Address : 1:1-00 to 1:4-15
When DIII-NET Plus adapter is enabled:
1:1-00 to 2:4-15
Schedule
Heating Optimization : Enabled or disabled
Temperature Limit
Automatic Changeover : Enabled or disabled
R / C
Changeover Option : N/A / Available / Selectable
OD-Unit Address
Err Code
case of error occurence
Err Unit No.
: [–] for no error or unit number for error
[For zone selection]
Details : Zone name
Description : Detailed zone name
Sequential Start : Enabled or disabled
No. of Regist Grp : Number of groups registered in a zone
Schedule : Enabled or disabled
6.
Push [Error history] button !8 to display the
Error History Screen (Screen 6).
The following data is displayed on the Error
History.
19
[For group selection]
Name : group name
Detailed name : Detailed group name
Error log :
¡Time : Error occurrence time
¡Err Code : 2-digit error code
¡Err Unit No. : Unit number
[For zone selection]
Name : group name
Error log :
¡Time : Error occurrence time
¡Name : Error occurrence group name
¡Err Code : 2-digit error code
¡Err Unit No. : Unit number
Top 10 error logs are displayed, assigning
the highest priority to the time of the latest
error.
∗ When the same error recurs, the error time
is renewed.
Check for display data and push [Close]
button @0 to return to the detailed
information screen Screen 5. To return to
the Monitoring Screen Screen 4, push
[Close] button !9 on that screen.
: Enabled or disabled
: Enabled or disabled
: Main or Sub
: Outside unit address
: 2-digit error code in
