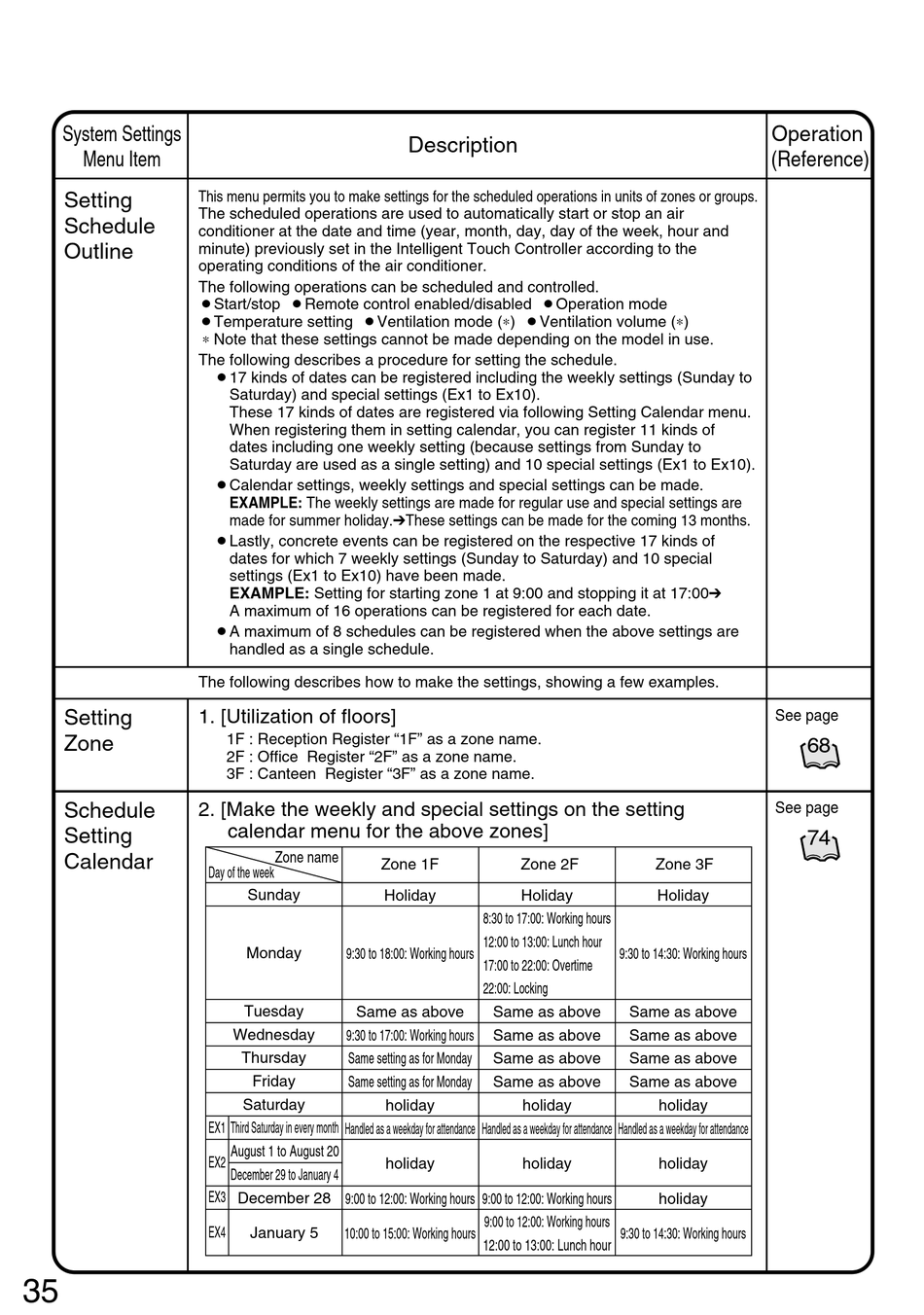

Daikin intelligent touch Controller DCS601C51 Operation Manual page 36

System Settings
Menu Item
Setting
Schedule
Outline
Setting
Zone
Schedule
Setting
Calendar
35
This menu permits you to make settings for the scheduled operations in units of zones or groups.
The scheduled operations are used to automatically start or stop an air
conditioner at the date and time (year, month, day, day of the week, hour and
minute) previously set in the Intelligent Touch Controller according to the
operating conditions of the air conditioner.
The following operations can be scheduled and controlled.
¡Start/stop ¡Remote control enabled/disabled ¡Operation mode
¡Temperature setting ¡Ventilation mode (∗) ¡Ventilation volume (∗)
∗ Note that these settings cannot be made depending on the model in use.
The following describes a procedure for setting the schedule.
¡17 kinds of dates can be registered including the weekly settings (Sunday to
Saturday) and special settings (Ex1 to Ex10).
These 17 kinds of dates are registered via following Setting Calendar menu.
When registering them in setting calendar, you can register 11 kinds of
dates including one weekly setting (because settings from Sunday to
Saturday are used as a single setting) and 10 special settings (Ex1 to Ex10).
¡Calendar settings, weekly settings and special settings can be made.
EXAMPLE: The weekly settings are made for regular use and special settings are
made for summer holiday.➔These settings can be made for the coming 13 months.
¡Lastly, concrete events can be registered on the respective 17 kinds of
dates for which 7 weekly settings (Sunday to Saturday) and 10 special
settings (Ex1 to Ex10) have been made.
EXAMPLE: Setting for starting zone 1 at 9:00 and stopping it at 17:00➔
A maximum of 16 operations can be registered for each date.
¡A maximum of 8 schedules can be registered when the above settings are
handled as a single schedule.
The following describes how to make the settings, showing a few examples.
1. [Utilization of floors]
1F : Reception Register "1F" as a zone name.
2F : Office Register "2F" as a zone name.
3F : Canteen Register "3F" as a zone name.
2. [Make the weekly and special settings on the setting
calendar menu for the above zones]
Zone name
Day of the week
Sunday
Monday
9:30 to 18:00: Working hours
Tuesday Same as above
Wednesday 9:30 to 17:00: Working hours
Thursday Same setting as for Monday
Friday Same setting as for Monday
Saturday
EX1
Third Saturday in every month Handled as a weekday for attendance
August 1 to August 20
EX2
December 29 to January 4
EX3
December 28 9:00 to 12:00: Working hours
EX4
January 5 10:00 to 15:00: Working hours
Description
Zone 1F Zone 2F
Holiday Holiday
8:30 to 17:00: Working hours
12:00 to 13:00: Lunch hour
17:00 to 22:00: Overtime
22:00: Locking
Same as above
Same as above
Same as above
Same as above
holiday holiday
Handled as a weekday for attendance
holiday holiday
9:00 to 12:00: Working hours
9:00 to 12:00: Working hours
12:00 to 13:00: Lunch hour
Operation
(Reference)
See page
See page
Zone 3F
Holiday
9:30 to 14:30: Working hours
Same as above
Same as above
Same as above
Same as above
holiday
Handled as a weekday for attendance
holiday
holiday
9:30 to 14:30: Working hours
68
74
