Daikin intelligent touch Controller DCS601C51 Operation Manual page 12

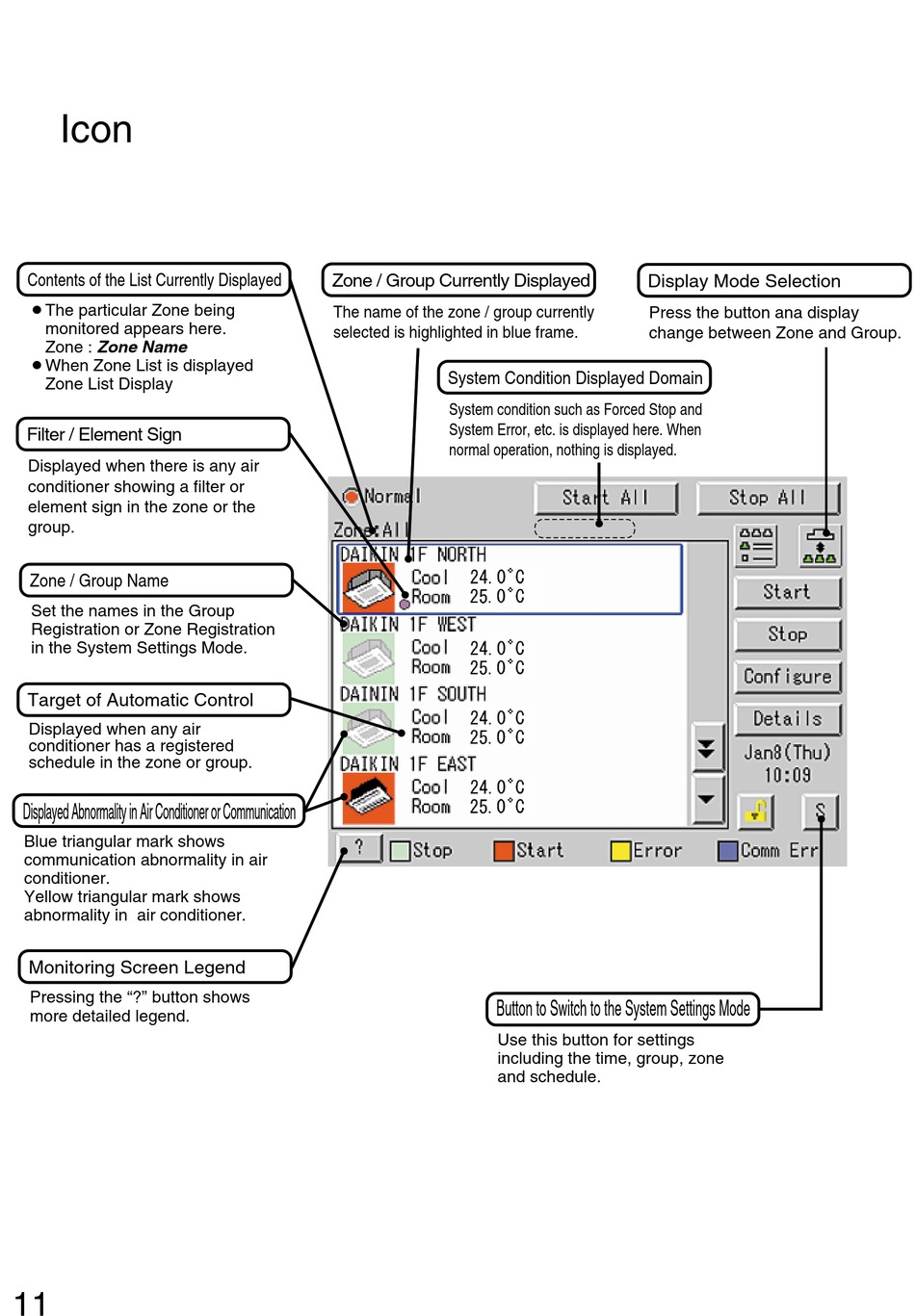

Icon
Contents of the List Currently Displayed
¡The particular Zone being
monitored appears here.
Zone : Zone Name
¡When Zone List is displayed
Zone List Display
Filter / Element Sign
Displayed when there is any air
conditioner showing a filter or
element sign in the zone or the
group.
Zone / Group Name
Set the names in the Group
Registration or Zone Registration
in the System Settings Mode.
Target of Automatic Control
Displayed when any air
conditioner has a registered
schedule in the zone or group.
Di s pl a yed Abnormal i t y i n Ai r Condi t i o ner or Communi c ati o n
Blue triangular mark shows
communication abnormality in air
conditioner.
Yellow triangular mark shows
abnormality in air conditioner.
Monitoring Screen Legend
Pressing the "?" button shows
more detailed legend.
11
Zone / Group Currently Displayed
The name of the zone / group currently
selected is highlighted in blue frame.
System Condition Displayed Domain
System condition such as Forced Stop and
System Error, etc. is displayed here. When
normal operation, nothing is displayed.
Button to Switch to the System Settings Mode
Use this button for settings
including the time, group, zone
and schedule.
Display Mode Selection
Press the button ana display
change between Zone and Group.
