11.5 Connection cables

These connection cables are required for the series connection from Tempro basic C
90 to another Tempro basic C 90.

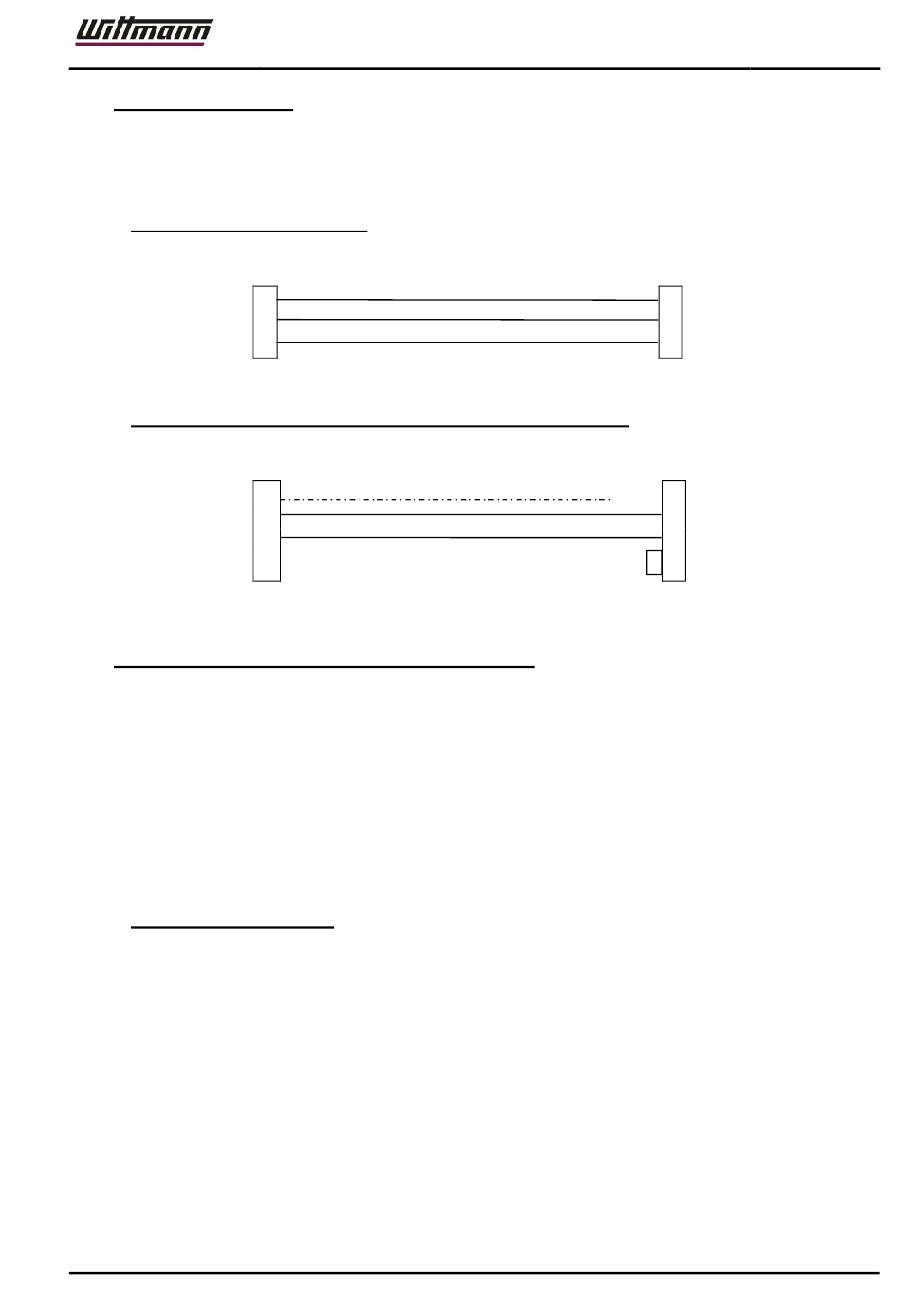

11.5.1 Series interfacing RS232

T5 0000 1630
TxD (Green)
RxD (White)
GND (Brown)

11.5.2 Series interfacing 20mA (identical with Engel 20mA)

T5 0000 1620
Screen
TxD + (White)
RxD - (Brown)

11.6 Pressure Measurement with Flow Indication

The device series Basic C90 can be equipped with the option "Pressure
measurement" and "Flow indication".
The flow rate is calculated from the parameters of the pump characteristics and
the pump delivery pressure and displayed.
Accuracy:
P1 0,1 bar
l/min 2,0 to 8,5 l/min
(Max. flow rate at 0 bar / max. pressure at 0 l/min)

11.6.1 Flow rate measuring:

In this model, the flow rate is determined by measuring the system pressure and
the total pressure. To do this, the user must determine various data during the
calibration process and enter the respective values in the configuration menu
(„con", code120).
This flow rate is then calculated based on these values and the pump pressure
(difference between total and system pressure).
Procedure:
In the140° model, the pump is stopped for 5 seconds when the nominal
temperature is reached. At the end of the 5-second period, the pressure is
measured and saved as the system pressure. The pump is subsequently
restarted.
