4 Layout and Function

The tempering devices Tempro basic C90 and Tempro primus C90 are used for
tempering injection molding tools on injection molding machines, as well as other
tempering circuits on plastics processing machines.
This temperature stabilizer of the basic / primus C90 integrates modern design,
compact structure and simple handling.
The temperature stabilizer has a temperature stabilizing circuit with a mould connection.

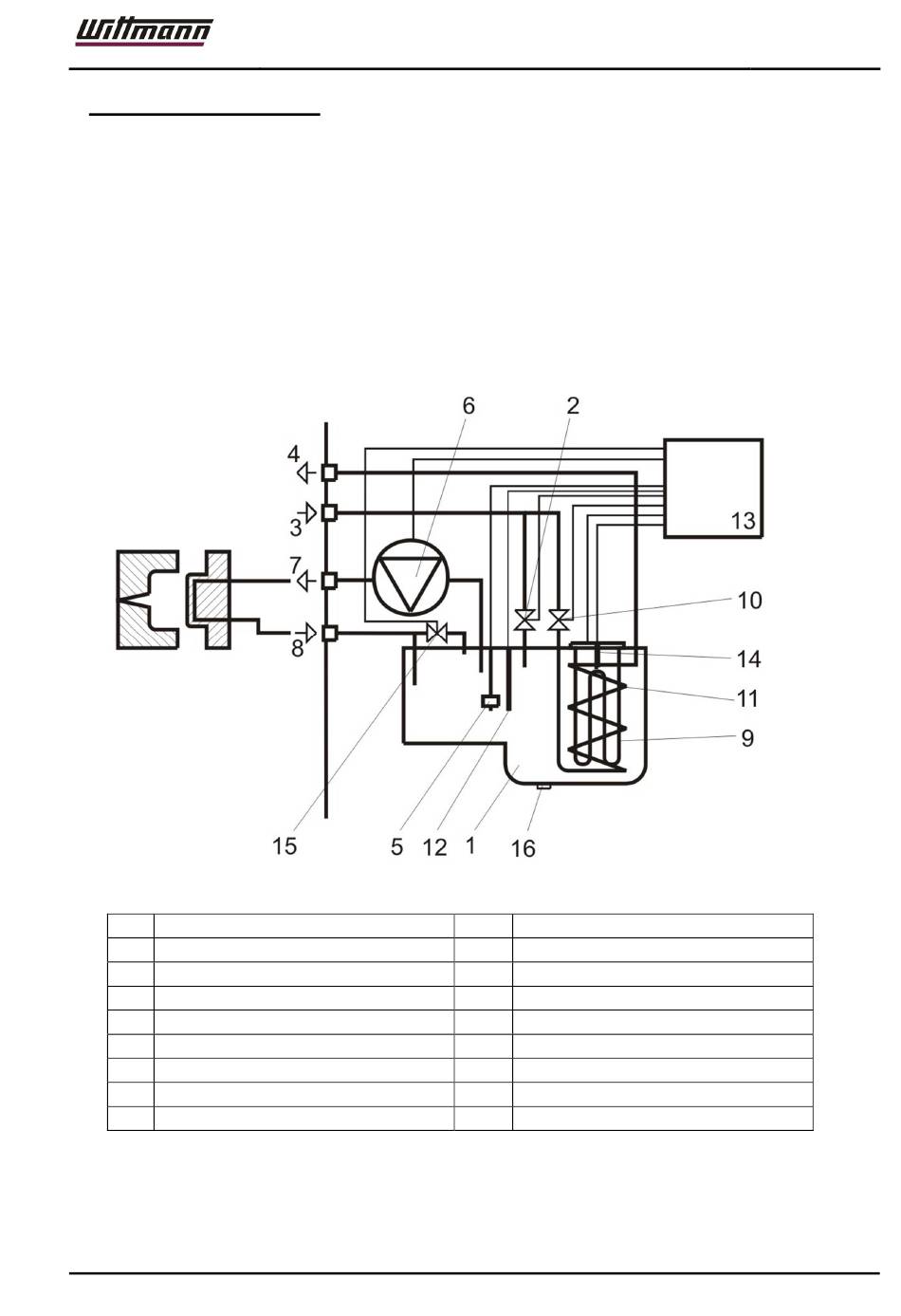

Diagram of temperature stabilizing circuit: Tempro basic C 90
Nr. Description
1 Heat exchanger
2 Filling solenoid valve
3 Cooling-water inlet
4 Cooling-water outlet
5 Level switch
6 Pump
7 Mould connection-FEED
8 Mould connection-RETURN
Tempro basic C 90 & Tempro primus C 90
Nr.
9
10
11
12
13
14
15
16
Description
Heater element
Cooling solenoid valve
Cooling coil
Temperature sensor
Microprocessor controller
Safety temperature cutout
Ventilation valve
Drain plug
