9 Repair instructions

9.1 Prior to opening the unit

§
Cool stabilizer down to safety temperature of approx. 40°C !
§
Turn OFF by main switch
§
Lock cooling water inlet
§
Disconnect stabilizer from mains voltage and secure against restart of operation

9.2 Remove side panels

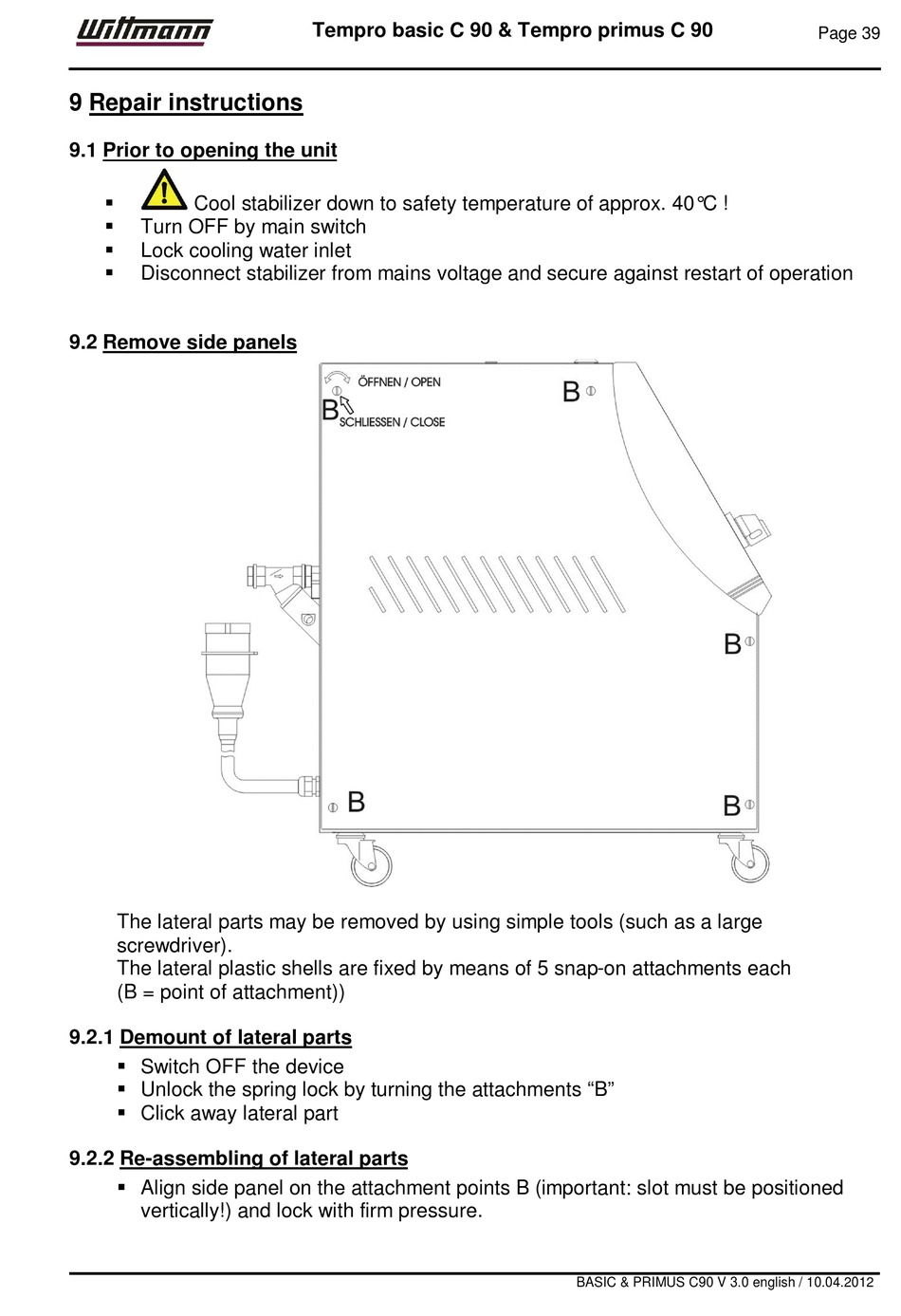

The lateral parts may be removed by using simple tools (such as a large
screwdriver).
The lateral plastic shells are fixed by means of 5 snap-on attachments each
(B = point of attachment))

9.2.1 Demount of lateral parts

§ Switch OFF the device
§ Unlock the spring lock by turning the attachments "B"
§ Click away lateral part

9.2.2 Re-assembling of lateral parts

§ Align side panel on the attachment points B (important: slot must be positioned
vertically!) and lock with firm pressure.
