9.10 Circuit board

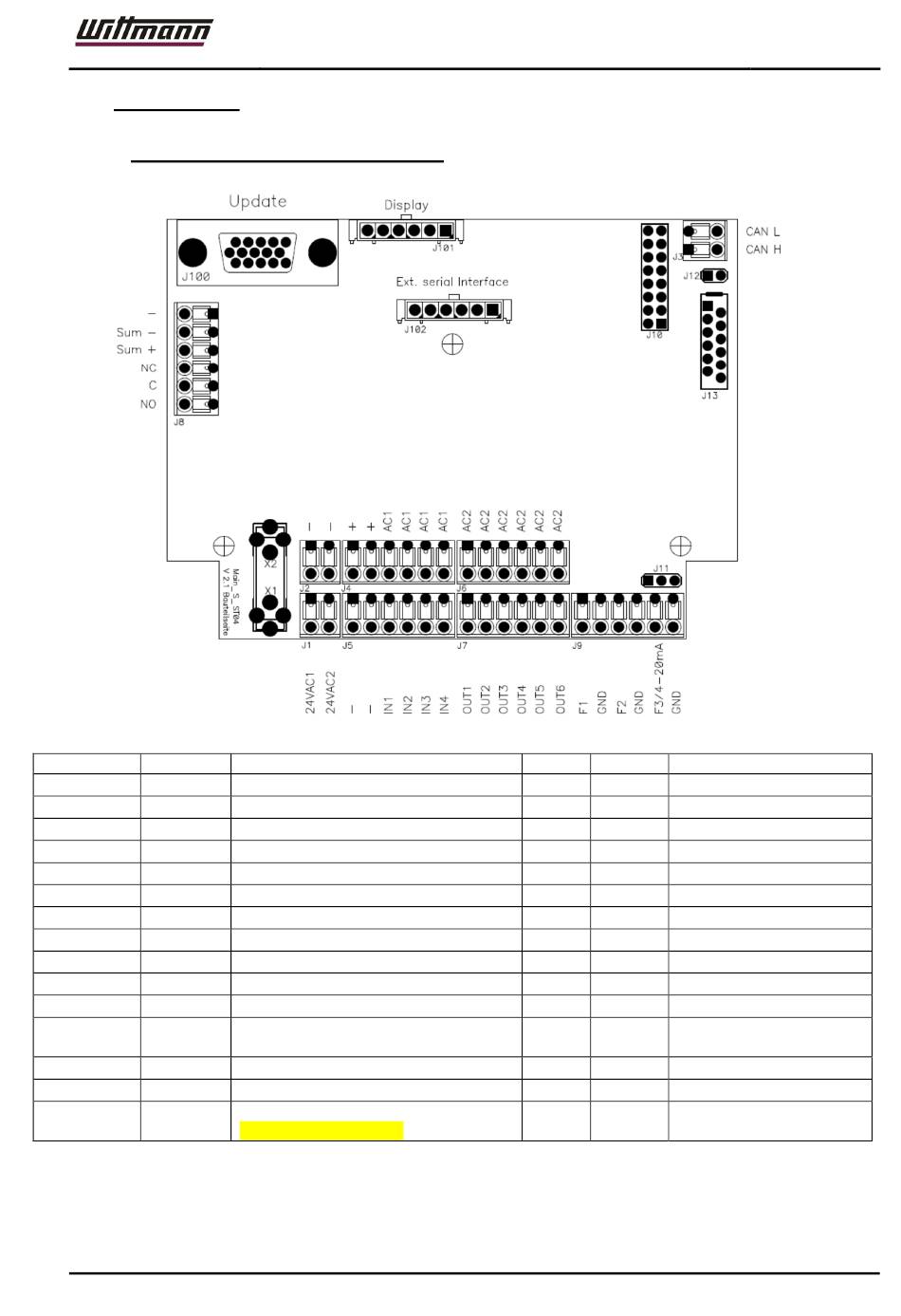

9.10.1 Plug connection of Circuit board

J1.1 24VAC1
J1.2 24VAC2
J2.1 – J2.2 -
J4.1 – J4.2 +
J4.3 – J4.6 AC1
J5.1 – J5.2 -
J5.3 IN1
J5.4 IN2
J5.5 IN3
J5.6 IN4
J6.1 – J6.6 AC2
J7.1 OUT1
J7.2 OUT2
J7.3 OUT3
J7.4 OUT4
J7.5 OUT5
Tempro basic C 90 & Tempro primus C 90
Power Supply 24VAC
Power Supply 24VAC
0VDC
24VDC
24VAC
0VDC
Input Level switch
Input Safety Temperature Limiter
Input motor protection relay
free input
24VAC
Output heating
Output pump
Output cooling valve (Y2)
Output filling valve (Y1)
Output ventilation valve (Y7)
not for PRIMUS C90
J7.6 OUT6 free output
J8.1 - 0VDC
J8.2 Sum Buzzer (-)
J8.3 + Buzzer (+) 24VDC
J8.4 NC Alarm contact (NC)
J8.5 C Alarm contact (C)
J8.6 NO Alarm contact (NO)
J9.1 F1 Internal sensor PT100
J9.2 GND Internal sensor GND
J9.3 F2 external sensor PT100
J9.4 GND external sensor GND
J10 Jumper-strip
J100 Update Plug for Software
Update
J101 Display plug
J102 Serial interface
X1 Fuse 4 AT
