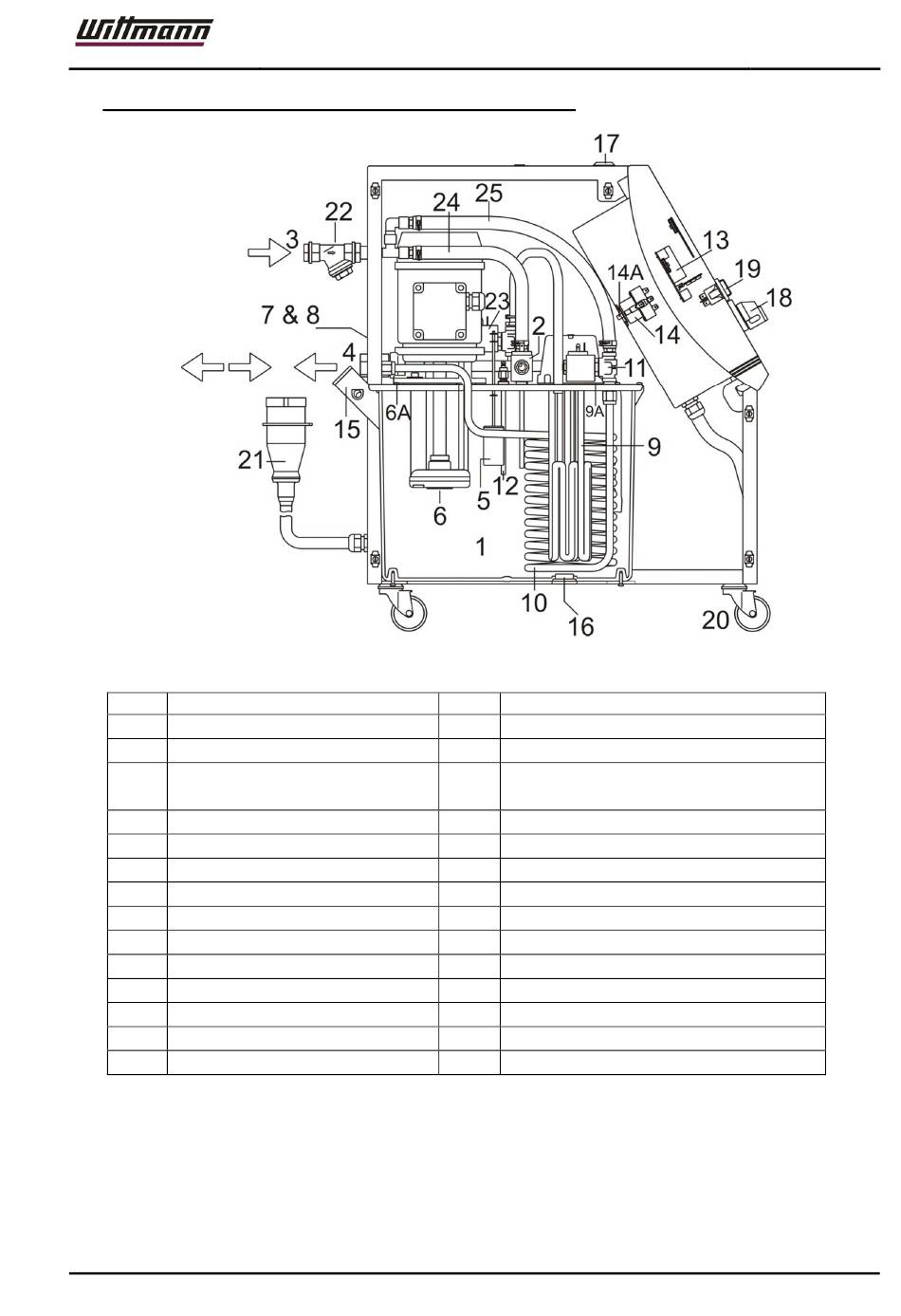

9.3 Structure of mechanic system Tempro basic C 90

No. Description
1 Heat exchanger
2 Filling valve
Cooling water inlet
3
4 Cooling water outlet
5 Level switch
6 Pump
6A Seal for pump
7 Mould connection-feed
8 Mould connection -return
9 Heater element
9A Seal for heater element
10 Cooling helix
11 Cooling valve
12 Temperature sensor PT100
Tempro basic C 90 & Tempro primus C 90
No.
13
14
14A
15
16
17
18
19
20
21
22
23
24
25
Description
Microprocessor controller
Safety Temperature Limiter
Reset button for safety
temperature limiter
Manual filling (filling socket)
Drain plus
Bolt lock
Main switch
Key switch for evacuating
Guide roll
Main connection
Coarse filter
Ventilation valve empty suction
Hose cold water supply FILLING
Hose cold water supply COOLING
