Kit Contents

This section contains a list of the components that are included in the SmarTrax kit. Before beginning the
SmarTrax installation, compare the items in the kit with the components on this list. If you have questions about
the kit, contact your Raven dealer.
Note:
The SmarTrax node (P/N 063-0173-228) is sold separately. Contact your local Raven dealer for
ordering information.

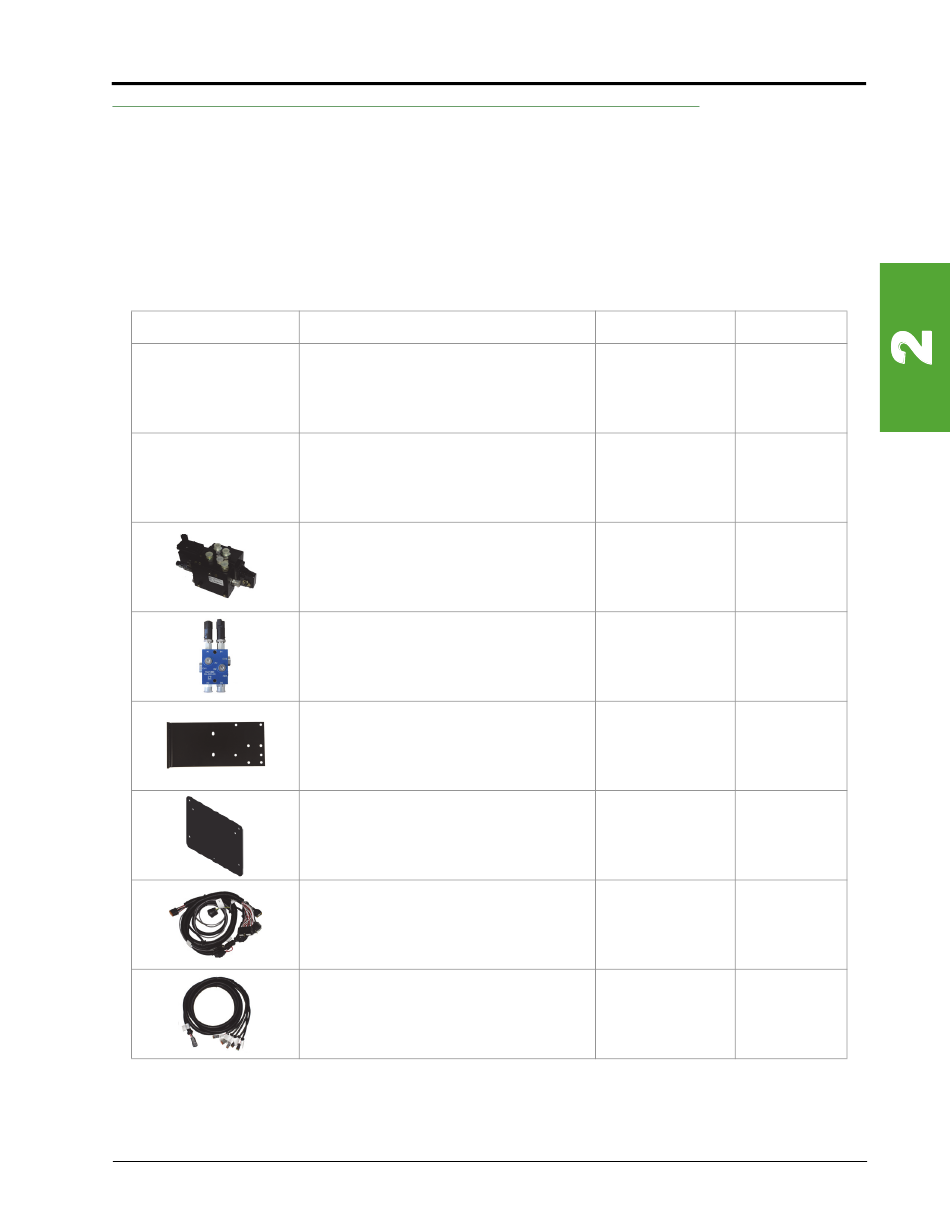

SmarTrax Installation Kit (P/N 117-5032-017 or 117-5032-018)
TABLE 1.
Not Pictured
Not Pictured
Manual No. 016-5032-017 Rev. A
Item Description
Manual - Case IH Patriot 4420 (Model Year
2009-2011), SPX 4410/4420 (2009 & Older),
SPX 4260 (S/N JFG003537 & Newer)
SmarTrax Installation
Manual - SmarTrax and SmartSteer
Calibration & Operation
Valve - SmarTrax Hydraulic
Switch - Flow
Bracket - Hydraulic Valve Mounting
Bracket - Node Mounting
Cable - Node Harness
Cable - Valve Harness
Introduction
Part Number Qty.
016-5032-017 1
016-0171-277 1
334-0003-088 1
334-0003-085 1
107-0171-705 1
107-0172-084 1
115-4001-110 1
115-4001-111 1
