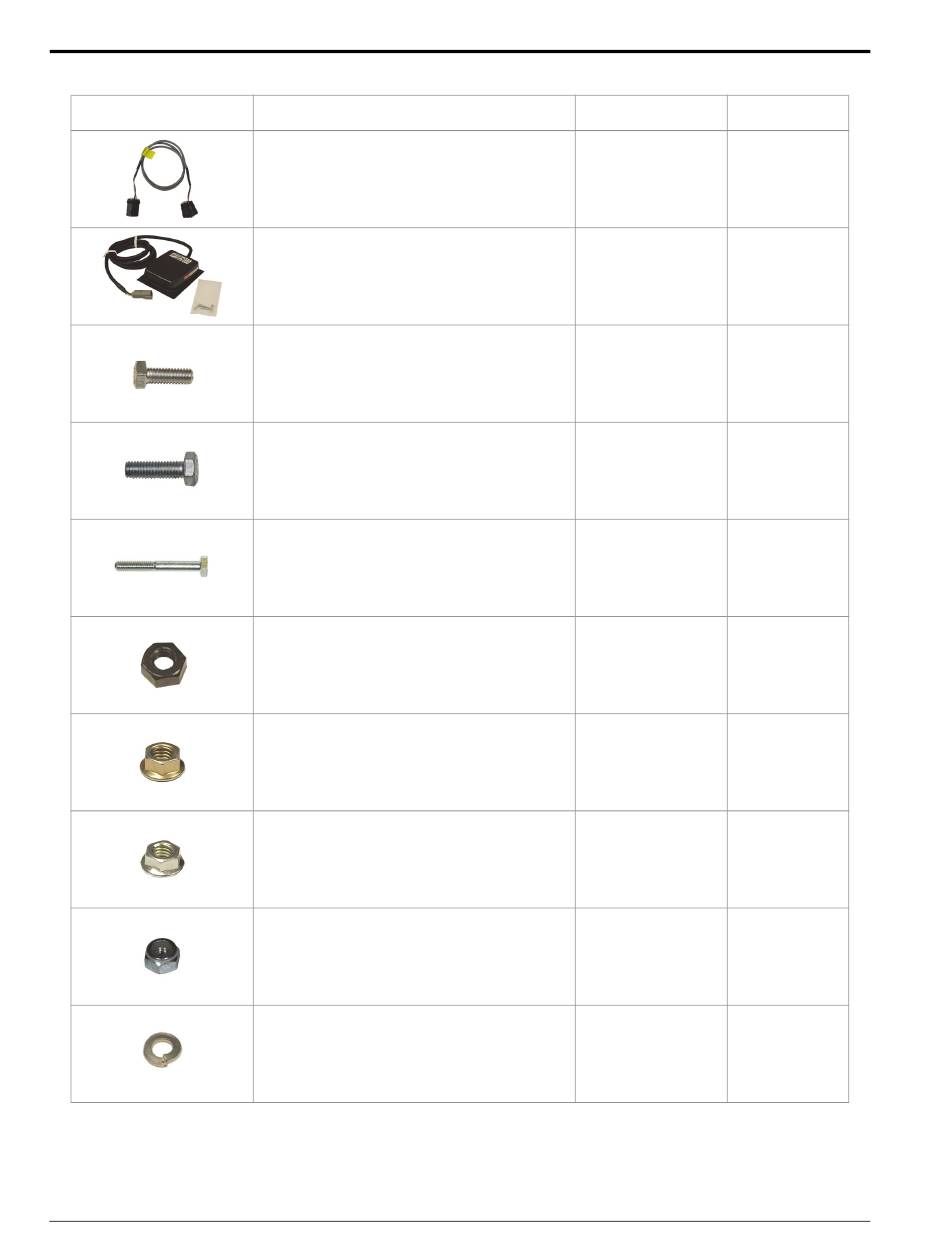

SmarTrax Installation Kit (P/N 117-5032-017 or 117-5032-018)
TABLE 1.
6
Case IH Patriot 4420 (2009 & Newer), SPX 4410/4420 (2008 & Older), SPX 4260 (S/N JFG003537 & Newer) SmarTrax™ Installation Manual
Item Description
Cable - CAN Extension
Assembly - Enable Foot Switch
Bolt - 5/16"-18 x 7/8" Hex
Bolt - M6 x 1.0 x 20 mm Hex
Screw - 1/4"-20 x 2" Socket Head Cap
Nut - 1/4"-20 Hex
Nut - 3/8"-16 Zinc Flanged Lock
Nut - 5/16"-18 Flanged Lock
Nut - M6 Lock
Washer - 1/4" Split Lock
Part Number Qty.
115-4001-150
or
115-4001-151
063-0172-470
311-0052-104
311-0070-010
311-0050-109
312-1001-074
312-1001-164
312-1001-169
312-4000-207
313-1000-016
1
1
9
4
2
2
3
5
4
2
