Chapter 2

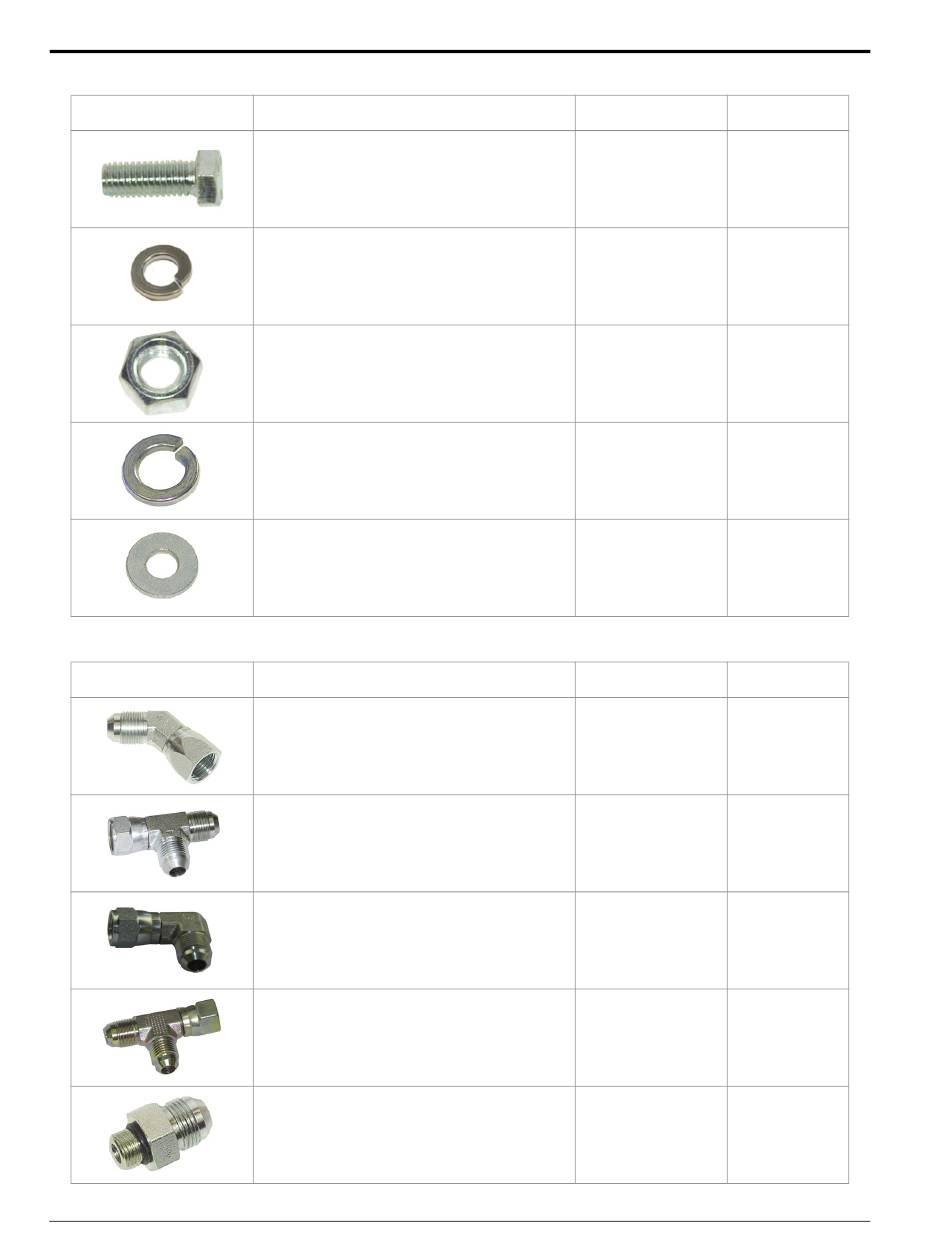

GVM Prowler SmarTrax Installation Kit (P/N 117-0195-085 or 117-0295-085)
TABLE 1.
GVM Prowler SmarTrax Hydraulic Kit (P/N 117-0194-085)
TABLE 2.
6
GVM Prowler ('08 & Newer, All 120' Booms) SmarTrax Installation Manual
Item Description
Bolt - 3/8" x 1/2"
Washer - 5/16" Split Lock
Nut - 3/8" Hex
Washer - 3/8" Split Lock
Washer - 3/8" Flat
Item Description
Fitting - 9/16" JIC (M/F) 45° Elbow
Fitting - 3/4" JIC (M/M/F) Swivel Run Tee
Fitting - 9/16" JIC (M/F) 90° Swivel Elbow
Fitting - 9/16" JIC (M/M/F) Swivel Run Tee
Fitting - 3/4" JIC (M) to 9/16" SAE O-Ring (M)
Adapter
Part Number
Qty.
311-0054-105
313-1000-019
312-1001-037
313-1000-022
313-2300-013
Part Number
Qty.
333-0012-027
333-0012-039
333-0012-042
333-0012-043
333-0012-055
4
4
4
4
4
1
2
5
2
2
