START-UP

10.1

Safety instructions

WARNING!
Risk of injury from improper operation.
Improper operation may result in injuries as well as damage to
the device and the area around it.
▶ Before start-up, ensure that the operating personnel are
familiar with and completely understand the contents of the
operating instructions.
▶ Observe the safety instructions and intended use.
▶ Only adequately trained personnel may operate the equip-
ment/the device.

10.2 Automatic adjustment X.TUNE

To adjust the positioner to local conditions, the X.TUNE
function must be run following installation.
WARNING!
Danger due to the valve position changing when the X.TUNE
function is running.
When the X.TUNE is running under operating pressure, there is
an acute risk of injury.
▶ Never run X.TUNE while a process is running.
▶ Take appropriate measures to prevent the equipment from
being accidentally actuated.
18
english
Type 8696 REV.2
Start-up
ATTENTION!
Avoid maladjustment of the controller due to an incorrect
pilot pressure or applied operating medium pressure.
▶ Run X.TUNE whenever the pilot pressure (= pneumatic aux-
iliary energy) is available during subsequent operation.
• Run the X.TUNE function preferably without operating medium
pressure to exclude interference caused by flow forces.
ATTENTION!
Breakage of the pneumatic connection pieces due to rota-
tional impact.
▶ When unscrewing and screwing in the transparent cap, do not
hold the actuator of the process valve but the basic housing.

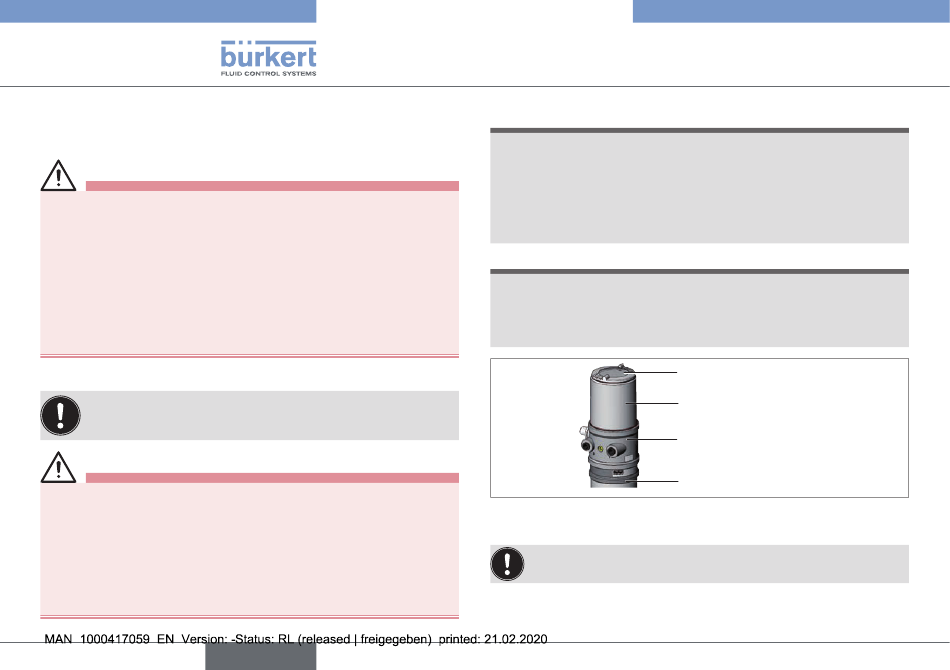

Fig. 12: Open positioner
To run X.TUNE, the positioner must be in the AUTOMATIC
operating status (manual LED is not lit).
Transparent cap
Body casing
Basic housing
Actuator
