10.3.1 Connecting IO-Link device with Bürkert
Communicator
Required components:
• Communications software: Bürkert Communicator for PC
• USB-büS interface set (see accessories)
• büS adapter for communication interface (see accessories)
• If necessary, a büS cable extension (see accessories)
ATTENTION
Breakage of the pneumatic connection pieces due to rota-
tional impact.
▶ When opening or closing the device, do not press against the
actuator, but against the basic housing.
→ Screw off the transparent cap by turning counterclockwise.

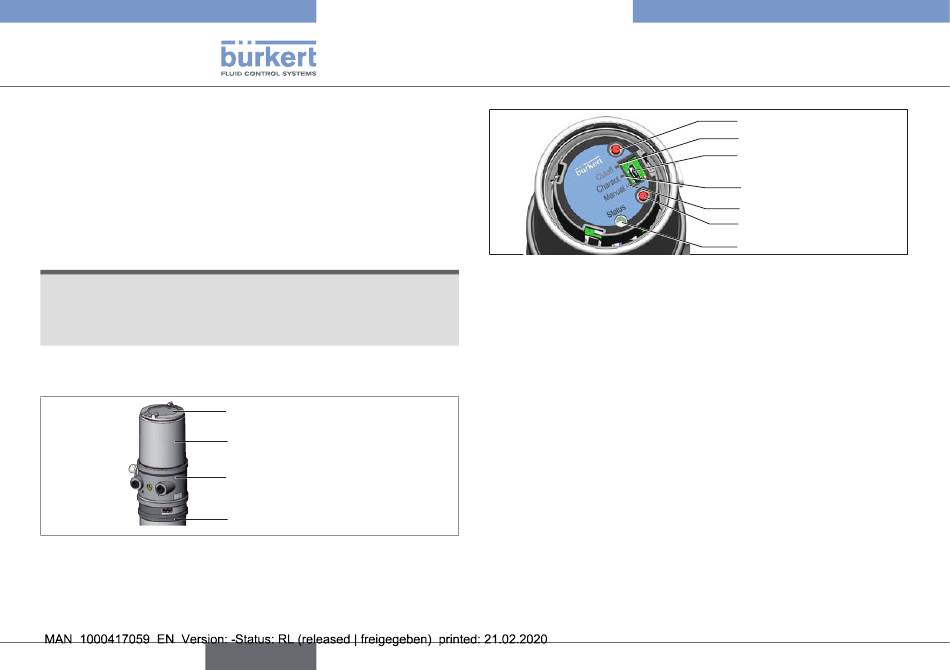

Fig. 14: Open positioner
20
Transparent cap
Body casing
Basic housing
Actuator
english
Type 8696 REV.2
Start-up
Fig. 15: Communications interface
→ Insert micro USB plug in communication interface.
→ Establish connection to PC with USB-büS interface set.
→ Starting Bürkert Communicator.
→ Implementing settings.
10.3.2 Connecting büS device with Bürkert
Communicator
Required components:
• Communications software: Bürkert Communicator for PC
• büS standard set (see accessories)
→ Establish connection to PC with USB-büS interface set.
→ Starting Bürkert Communicator.
→ Implementing settings.
Button
1
Cutoff LED
Communications
interface
Charact LED
Manual LED
Button
2
Status LED
