AUTOMATIC operating state (manual LED is not lit):
Button Function/LED
1 Press longer than 2 s: (< 5 s, cutoff LED flashes at
5 Hz (0 – 2 s) and at 10 Hz (2 – 5 s)):
Activates/deactivates CUTOFF function
CUTOFF function activated: Cutoff LED is lit yellow
Press longer than 5 s (< 10 s, status LED is lit orange):
Starting the X.TUNE function
2 Press longer than 2 s (cutoff LED flashes at 5 Hz
(0 – 2 s) and at 10 Hz (2 – 5 s)):
Activates/deactivates CHARACT function
CHARACT function activated: charact LED is light green
Press longer than 2 s (< 10 s, manual LED flashes at
5 Hz, 0 – 2 s)):
Switching to MANUAL operating state
Press longer than 10 s (< 30 s, manual LED and
charact LED flash at 5 Hz, 10 – 30 s):
Device restart
Press longer than 30 s (manual LED, charact LED and
cutoff LED flash at 10 Hz, > 30 s):
Reset device to factory setting
Tab. 10: ConfigurationofthebuttonsforAUTOMATICoperatingstate
24
english
Type 8696 REV.2
Control and display elements
11.3

Display of the LEDs

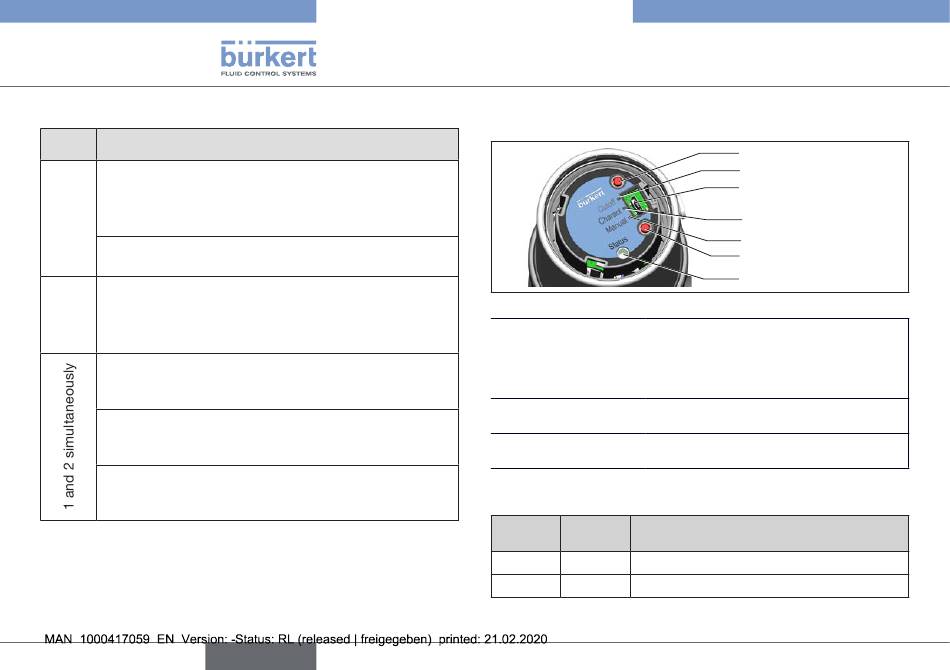

Fig. 19: Display of the LEDs
Status LED (RGB) Display of the device status and valve
position
Cutoff LED (yellow) CUTOFF active/inactive
Operating state HAND active/inactive
Manual LED (red)
Charact LED (green) CHARACT active/inactive
Cutoff LED
Color Status Description
yellow is lit CUTOFF active
yellow is not lit CUTOFF inactive
Tab. 11: CutoffLED
Button
1
Cutoff LED
Communications
interface
Charact LED
Manual LED
Button
2
Status LED
