Type 8696 REV.2
Electrical installation
9.3
Electrical installation, IO-Link
4
5
1

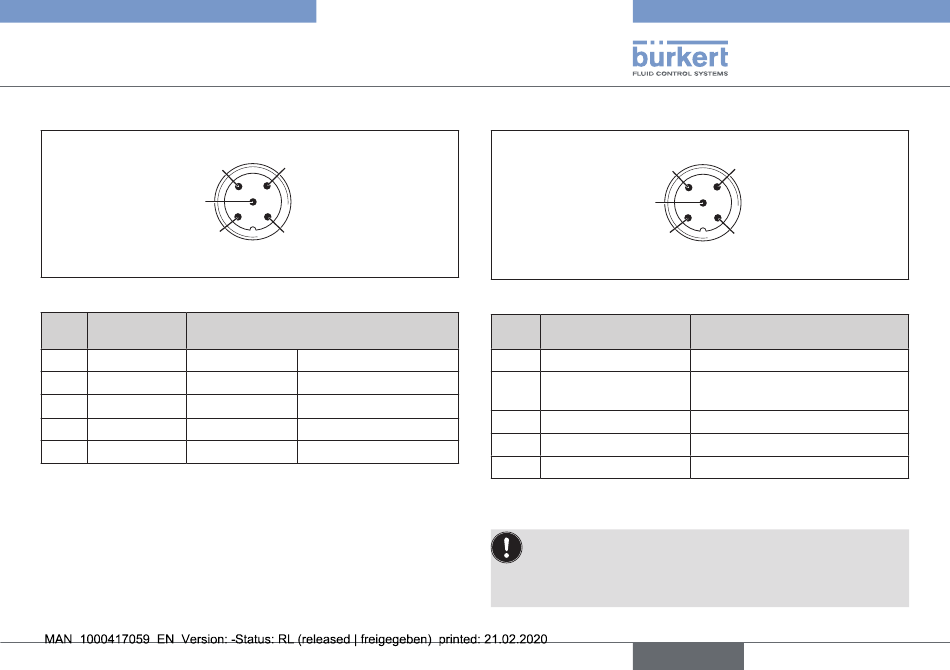

Fig. 10: Pin assignment, Port Class B
Pin
Designation
Configuration
1
L +
24 V DC
2
P24
24 V DC
3
L –
0 V (GND)
4
C/Q
IO-Link
5
M24
0 V (GND)
Tab. 7:
Pin assignment
3
2
System supply
Actuator supply
System supply
Actuator supply
9.4
Electrical installation, büS
4
5
1
Fig. 11: Pin assignment
Pin
Wire color
1
CAN plate/shielding
2
red
3
black
4
white
5
blue
Tab. 8:
Pin assignment
For electrical installation with büS network, note:
Use a 5-pin round plug and shielded 5-core cable.
The shielding in the device is not connected to the func-
tional earth.
english
3
2
Configuration
CAN plate/shielding
+24 V DC ±25 %, max. residual
ripple 10 %
GND / CAN_GND
CAN_H
CAN_L
17
