Type 8696 REV.2
Electrical installation
9
ELECTRICAL INSTALLATION
All electrical inputs and outputs of the device are not galvanically
isolated from the supply voltage.
9.1
Safety instructions
DANGER!
Risk of electric shock.
▶ Before working on equipment or device, switch off the power
supply and secure to prevent reactivation.
▶ Observe applicable accident prevention and safety regulations
for electrical equipment.
WARNING!
Risk of injury from improper installation.
▶ Installation may be carried out by authorized technicians
only and with the appropriate tools.
Risk of injury from unintentional activation of the system and
an uncontrolled restart.
▶ Secure system from unintentional activation.
▶ Following installation, ensure a controlled restart.
9.2
Electrical installation without fieldbus
communication
→ Connect the positioner according to the table.
5
6
4
7
3
8
2
1

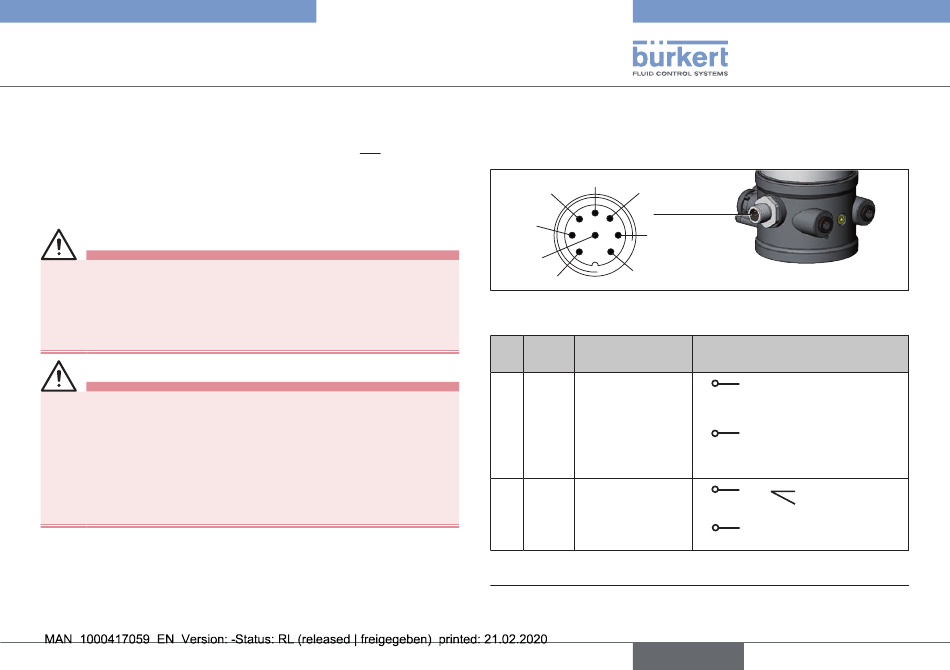

Fig. 9:
Circular plug M12 x 1, 8-pin
Input signals of the control center (e.g. PLC)
Wire
Pin
Configuration
color
5)
1
white
Set-point value +
(0/4 – 20 mA)
2
brown
Set-point value
GND
5
grey
Digital input +
6
pink
Digital input GND
Tab. 3:
Pin assignment, input signals of the control center
5) The indicated colors refer to the connecting cable available as an
accessory (919061).
english
External circuit, signal level
1
+ (0/4 – 20 mA)
2
GND
see table connection
type 3-wire or 4-wire
5
+
0 – 5 V (log. 0)
10 – 30 V (log. 1)
6
GND
15
