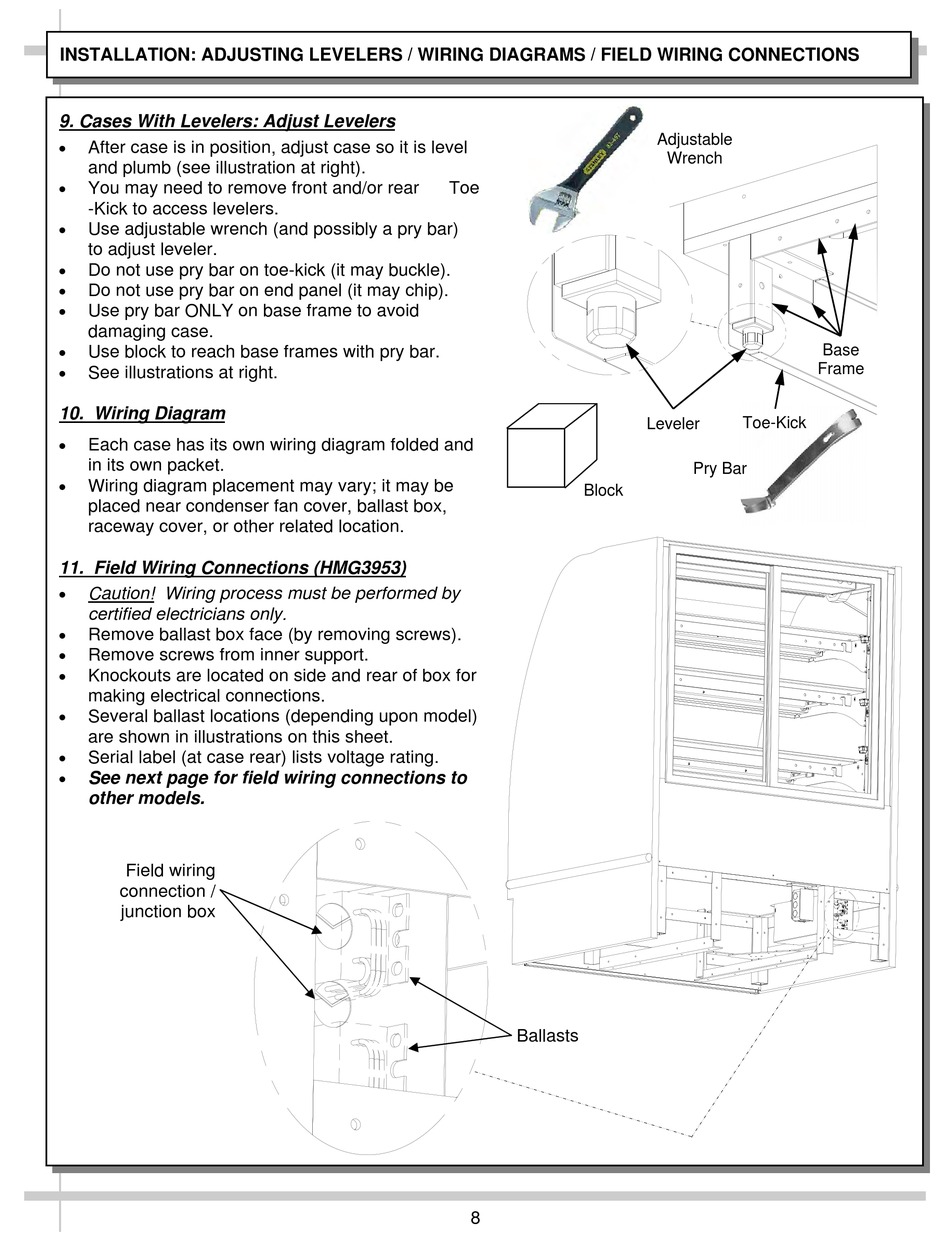

INSTALLATION: ADJUSTING LEVELERS / WIRING DIAGRAMS / FIELD WIRING CONNECTIONS
9. Cases With Levelers: Adjust Levelers

After case is in position, adjust case so it is level
and plumb (see illustration at right).

You may need to remove front and/or rear
-Kick to access levelers.

Use adjustable wrench (and possibly a pry bar)
to adjust leveler.

Do not use pry bar on toe-kick (it may buckle).

Do not use pry bar on end panel (it may chip).

Use pry bar ONLY on base frame to avoid
damaging case.

Use block to reach base frames with pry bar.

See illustrations at right.
10. Wiring Diagram

Each case has its own wiring diagram folded and
in its own packet.

Wiring diagram placement may vary; it may be
placed near condenser fan cover, ballast box,
raceway cover, or other related location.
11. Field Wiring Connections (HMG3953)

Caution! Wiring process must be performed by
certified electricians only.

Remove ballast box face (by removing screws).

Remove screws from inner support.

Knockouts are located on side and rear of box for
making electrical connections.

Several ballast locations (depending upon model)
are shown in illustrations on this sheet.

Serial label (at case rear) lists voltage rating.

See next page for field wiring connections to
other models.
Field wiring
connection /
junction box
Toe
Block
Ballasts
8
Adjustable
Wrench
Base
Frame
Toe-Kick
Leveler
Pry Bar
