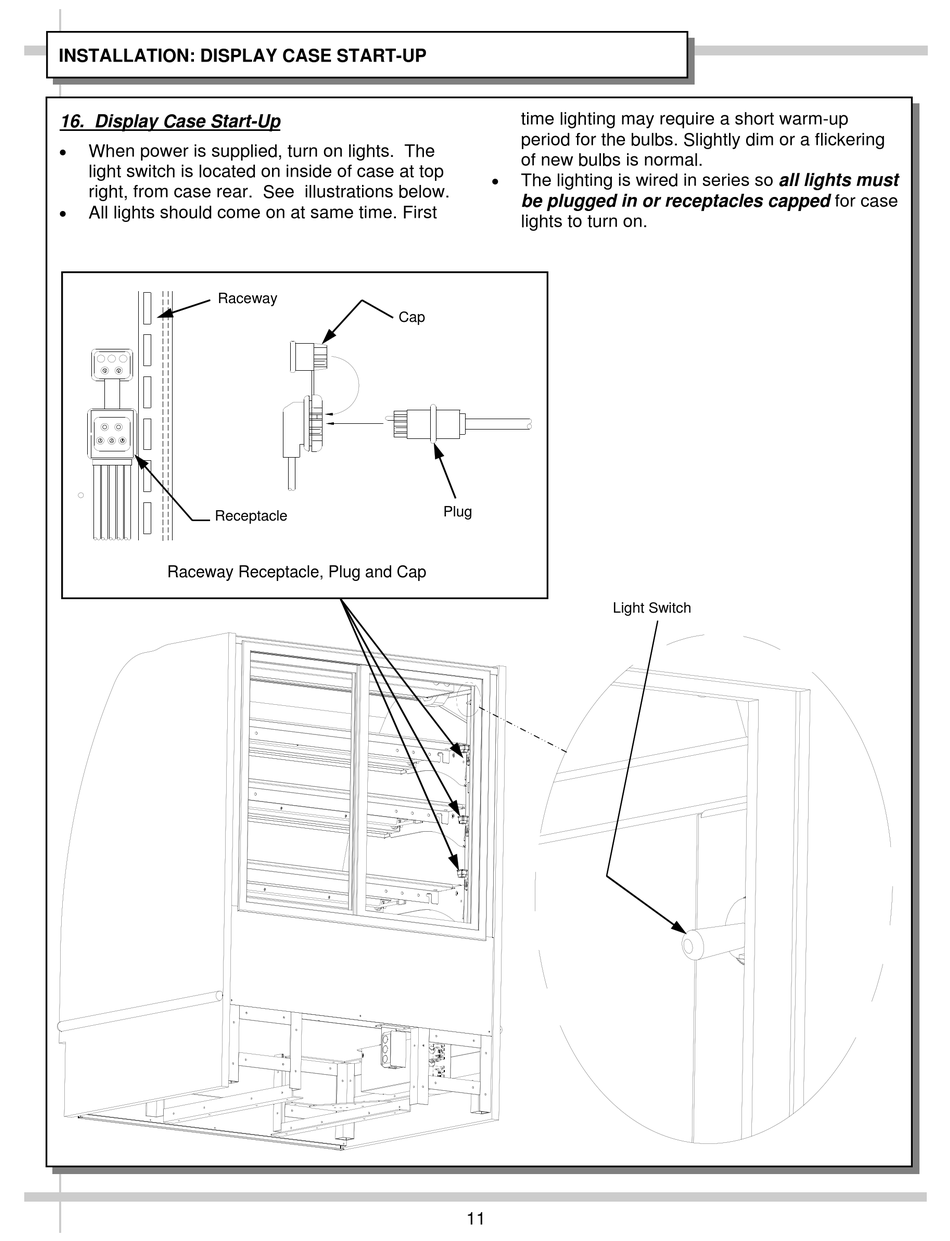

INSTALLATION: DISPLAY CASE START-UP

16. Display Case Start-Up

When power is supplied, turn on lights. The
light switch is located on inside of case at top
right, from case rear. See illustrations below.

All lights should come on at same time. First
Raceway
Receptacle
Raceway Receptacle, Plug and Cap
time lighting may require a short warm-up
period for the bulbs. Slightly dim or a flickering
of new bulbs is normal.

The lighting is wired in series so all lights must
be plugged in or receptacles capped for case
lights to turn on.
Cap
Plug
11
Light Switch
