The COM Express carrier features three video outputs, VGA, HDMI and LVDS. The availability of the graphics
interfaces depends on the COM Express module selected.
The configuration of either interface as the primary or secondary or tertiary display depends on the COM Express
module's BIOS capabilities and settings. Refer to the COM Express module's documentation for more details.

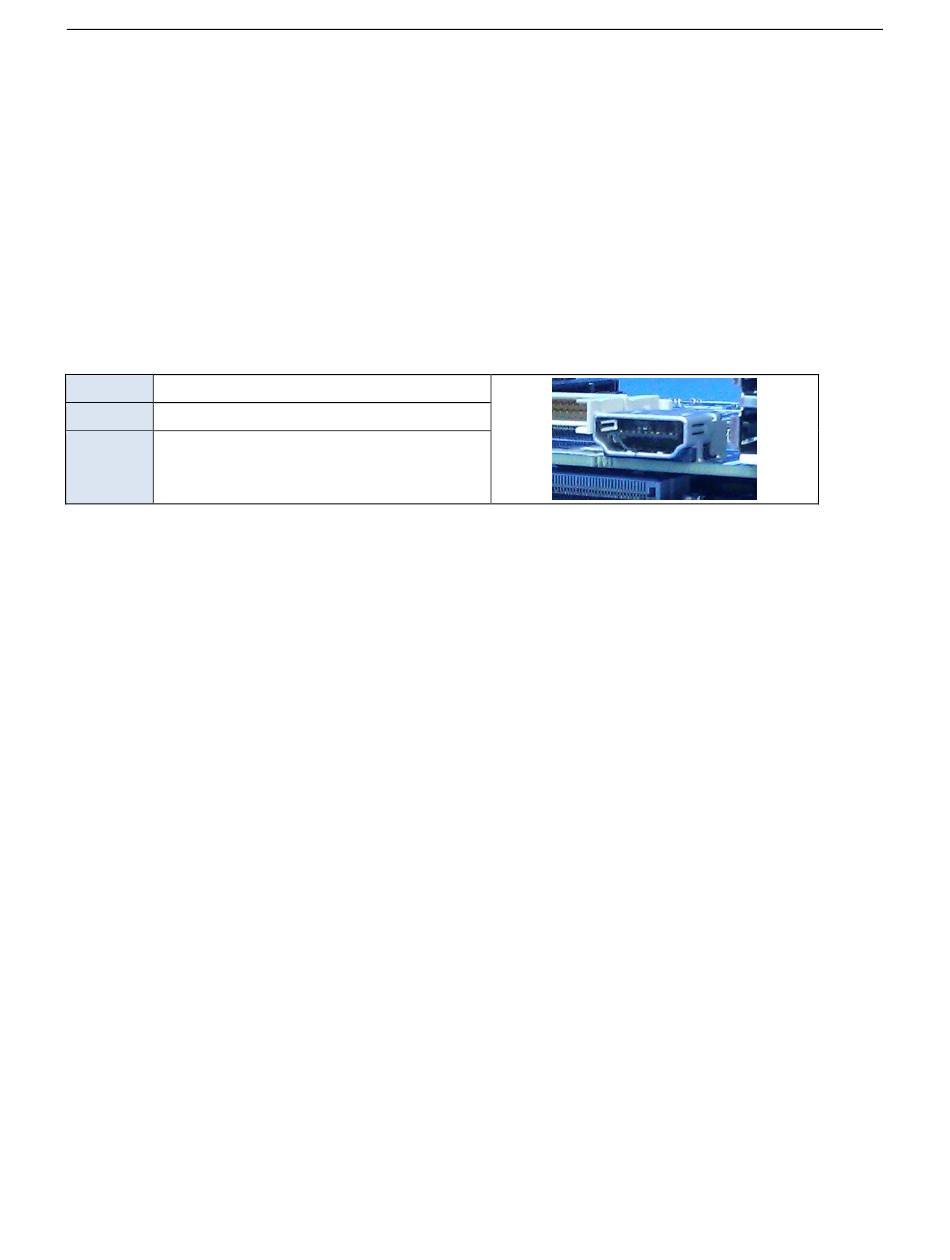

HDMI
An HDMI connector is provided on the COM Express carrier.
HDMI Connector
Function
HDMI
P11
Location
Standard HDMI Type A
Type
Revision 0.03
Connect Tech COM Express Type 2 Carrier Board - User Manual
17
