Connect Tech COM Express Type 2 Carrier Board - User Manual

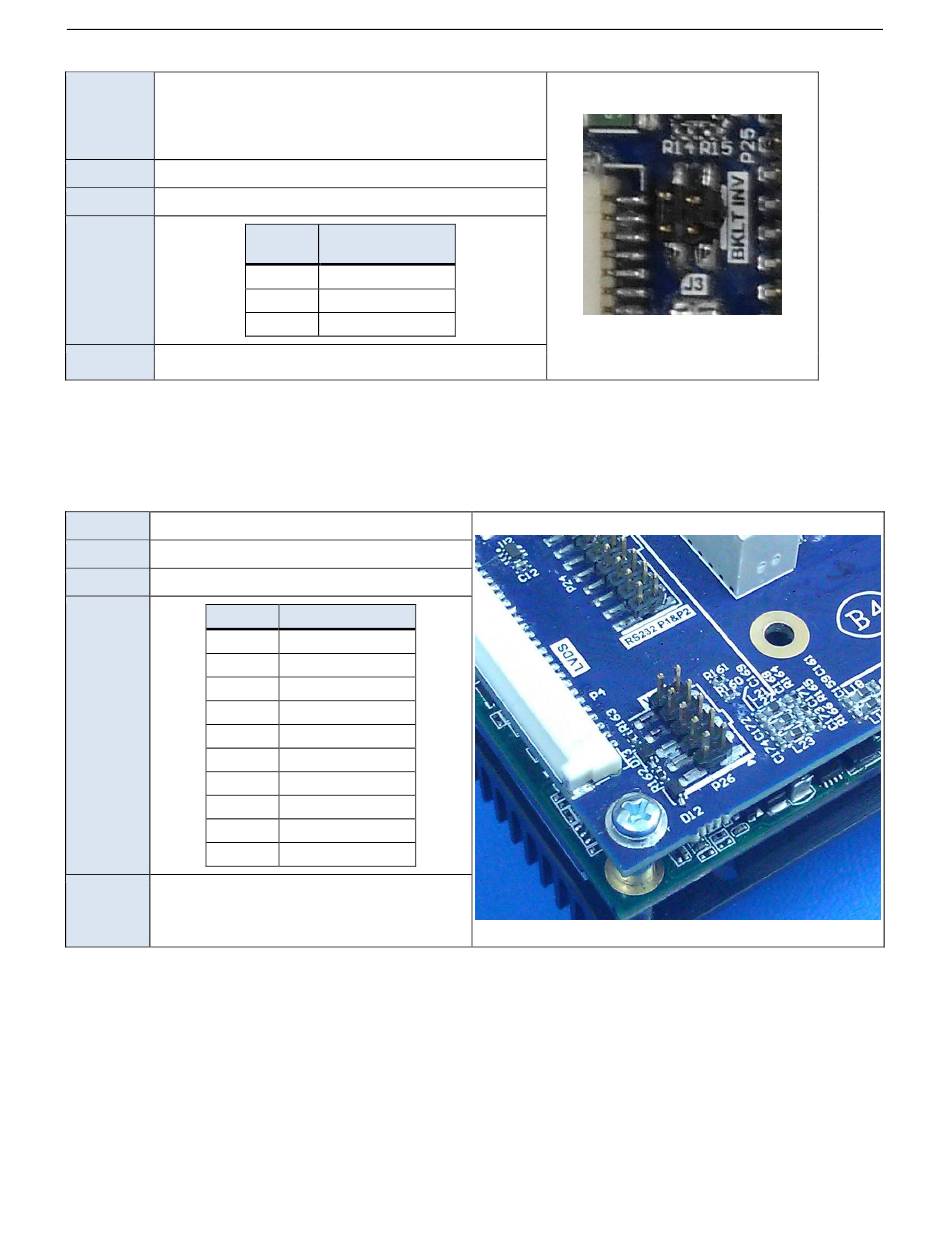

LVDS backlight enable polarity

Function LVDS backlight enable polarity
Selects either positive or negative. Refer to the
inverter power supply documentation for proper
configuration.
Location J3
2x2 2mm jumper block
Type
Pinout
Default off

VGA

Standard 15 Pin VGA is available at P26. This header can be adapted to a standard DB15 female the CBG070 cable.

VGA Pinouts

Standard VGA
Function
P26
Location
Type 2x5 2mm pitch header
Pinout
Pin
1
2
3
4
5
6
7
8
9
10
Optional CBG070
Cable
20
Position Description
1-2
Off Positive polarity
On Negative polarity
3-4 No Connect
Description
Red
GND
Green
NC
Blue
SC DDC
HSYNC
SD DDC
VSYNC
GND
Pins 1-2 marked with white line
Revision 0.03
