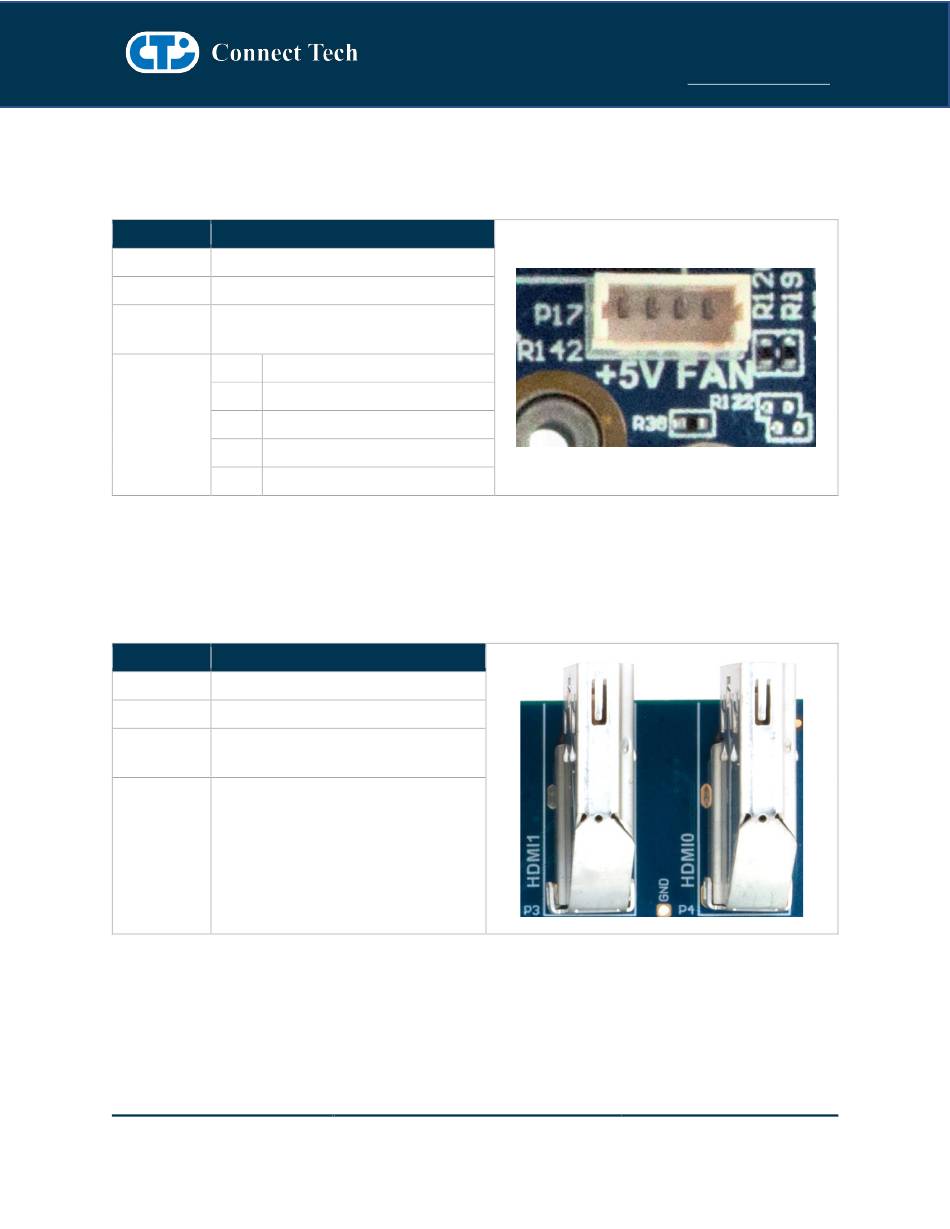

Fan Connector

The SMARC 2.0 Carrier implements a 4 pin header for the connection of a +5V fan. No PWM control is
available from this header.
Function
Location P17
Type Molex Vertical PicoBlade
Part Number PN: 530470410
Manufacturer: Molex
Pinout Pin Description
1 5V Pull-up
2 NC
3 +5V (FAN VDD)
4 GND

Video Output

The SMARC 2.0 Carrier implements two HDMI outputs. Both ports are from the SMARC 2.0 module. All
connectors are industry standard HDMI Type A upright right angle.
Function
Location P3, P4
Type HDMI Type A Video Output
Part Number PN: 2007435-3
Manufacturer: Texas Instruments
Pinout Refer to HDMI Connector Type A
Specification
