Connect Tech COM Express Type 2 Carrier Board - User Manual

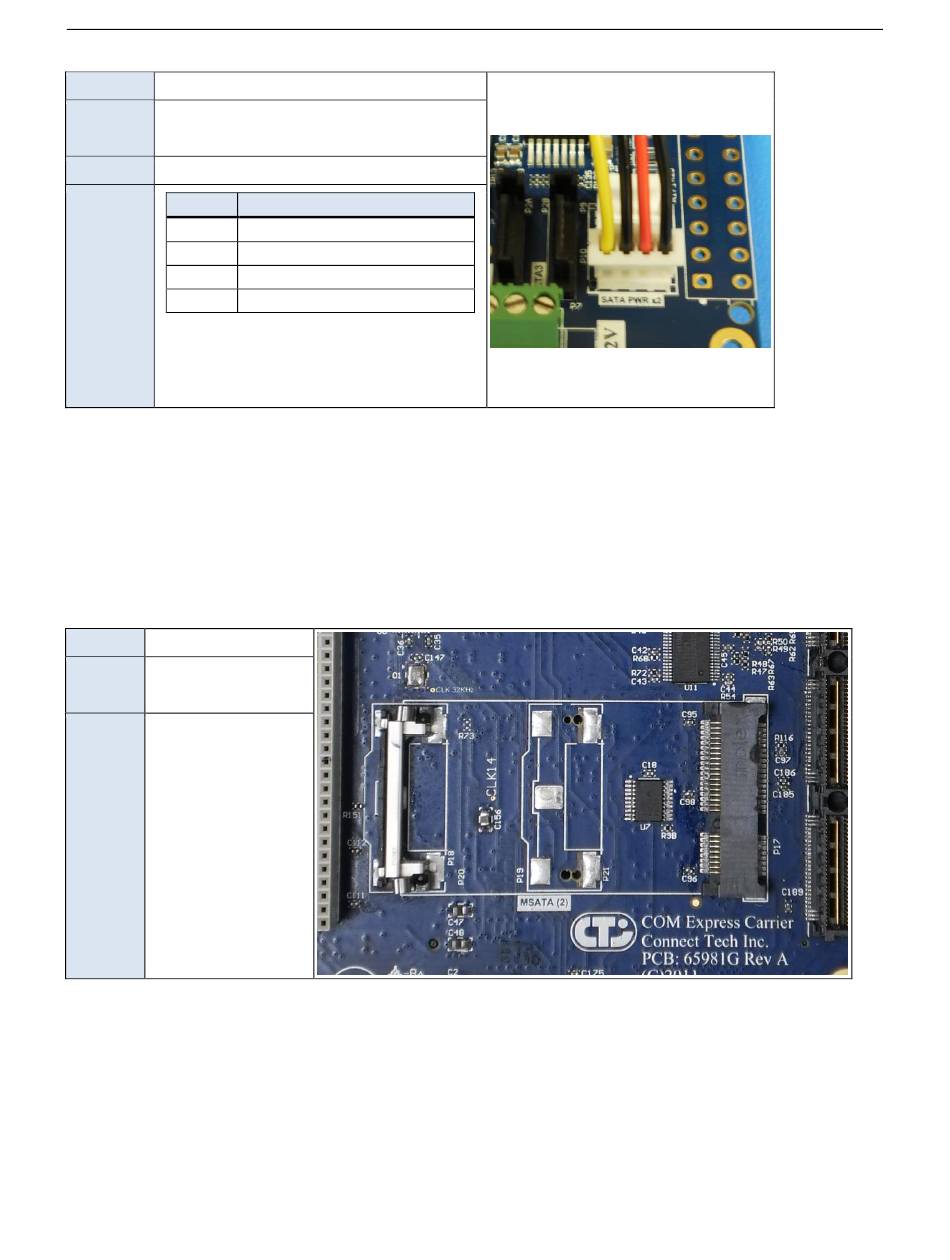

SATA HDD Power Connectors

Function
SATA HDD Power
Locations P9, P10
4 Pos 0.100" connector
Type
Pinout
Pin
1
2
3
4
+12V and +5V are protected with 1200mA
Raychem Poly fuses.
The SATA power connectors are fused independently from the main +12V fuse that provides +12V power to the
board, i.e. the SATA power connectors are not double fused.

mSATA Socket

Function mSATA
Locations P17 SATA Port 2
Molex miniPCIe in
Type
SATA configuration.

10/100/1000 Ethernet

Description

The CCG0xx COM Express carriers features a standard RJ Jack and magnetics for Ethernet communications. The
Ethernet MAC and PHY are located on the COM Express module.
24
Signal
GND (Black)
+5V (Red)
GND (Black)
+12v (Yellow)
Power connector shown inserted. Pine 1
is on the right.
Revision 0.03
