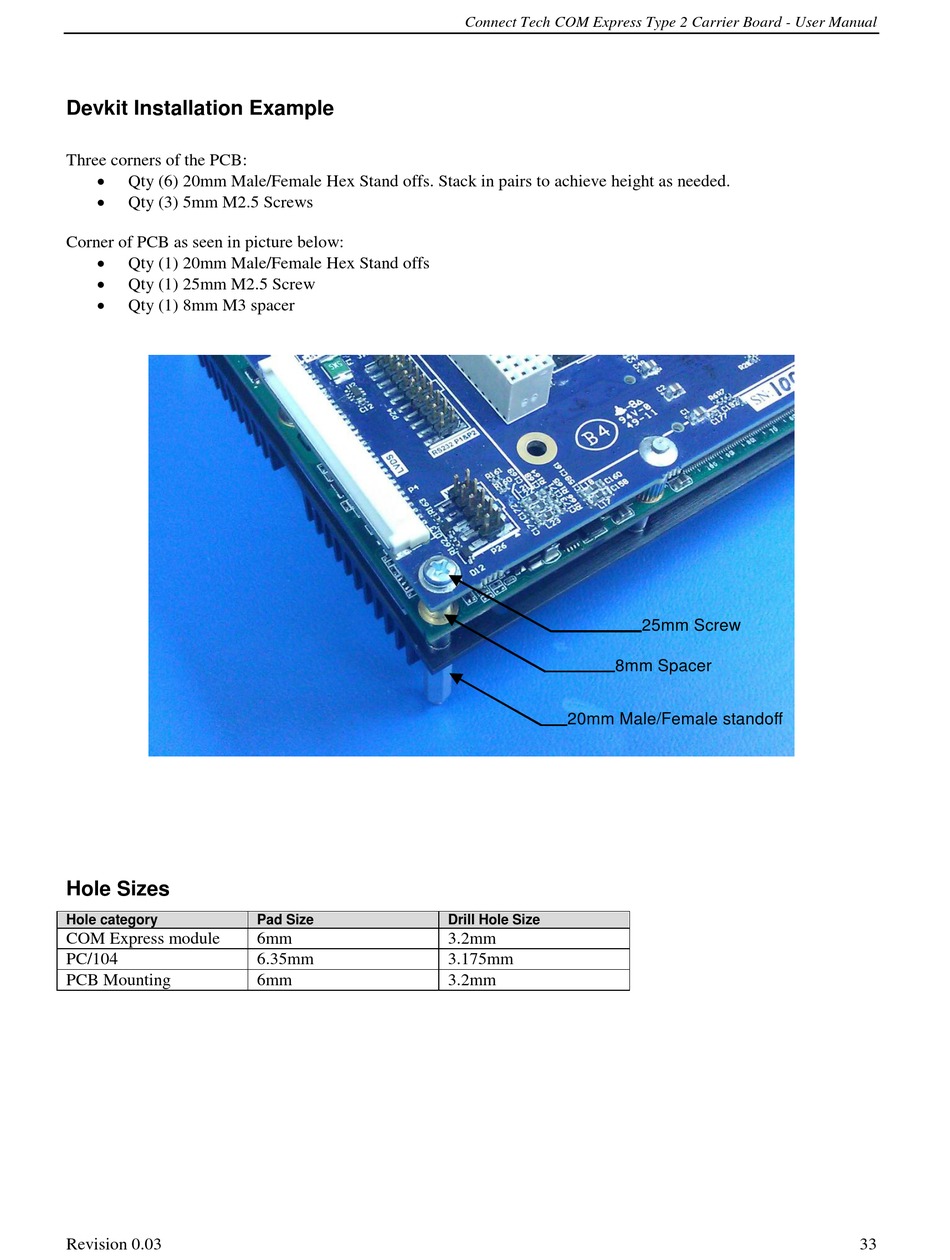

Devkit Installation Example

Three corners of the PCB:

Qty (6) 20mm Male/Female Hex Stand offs. Stack in pairs to achieve height as needed.

Qty (3) 5mm M2.5 Screws
Corner of PCB as seen in picture below:

Qty (1) 20mm Male/Female Hex Stand offs

Qty (1) 25mm M2.5 Screw

Qty (1) 8mm M3 spacer

Hole Sizes

Hole category
COM Express module
PC/104
PCB Mounting
Revision 0.03
Pad Size
6mm
6.35mm
6mm
Connect Tech COM Express Type 2 Carrier Board - User Manual
8mm Spacer
20mm Male/Female standoff
Drill Hole Size
3.2mm
3.175mm
3.2mm
25mm Screw
