+5V Standby selection

+5V Standby Selection (Rev B and greater only)
Function

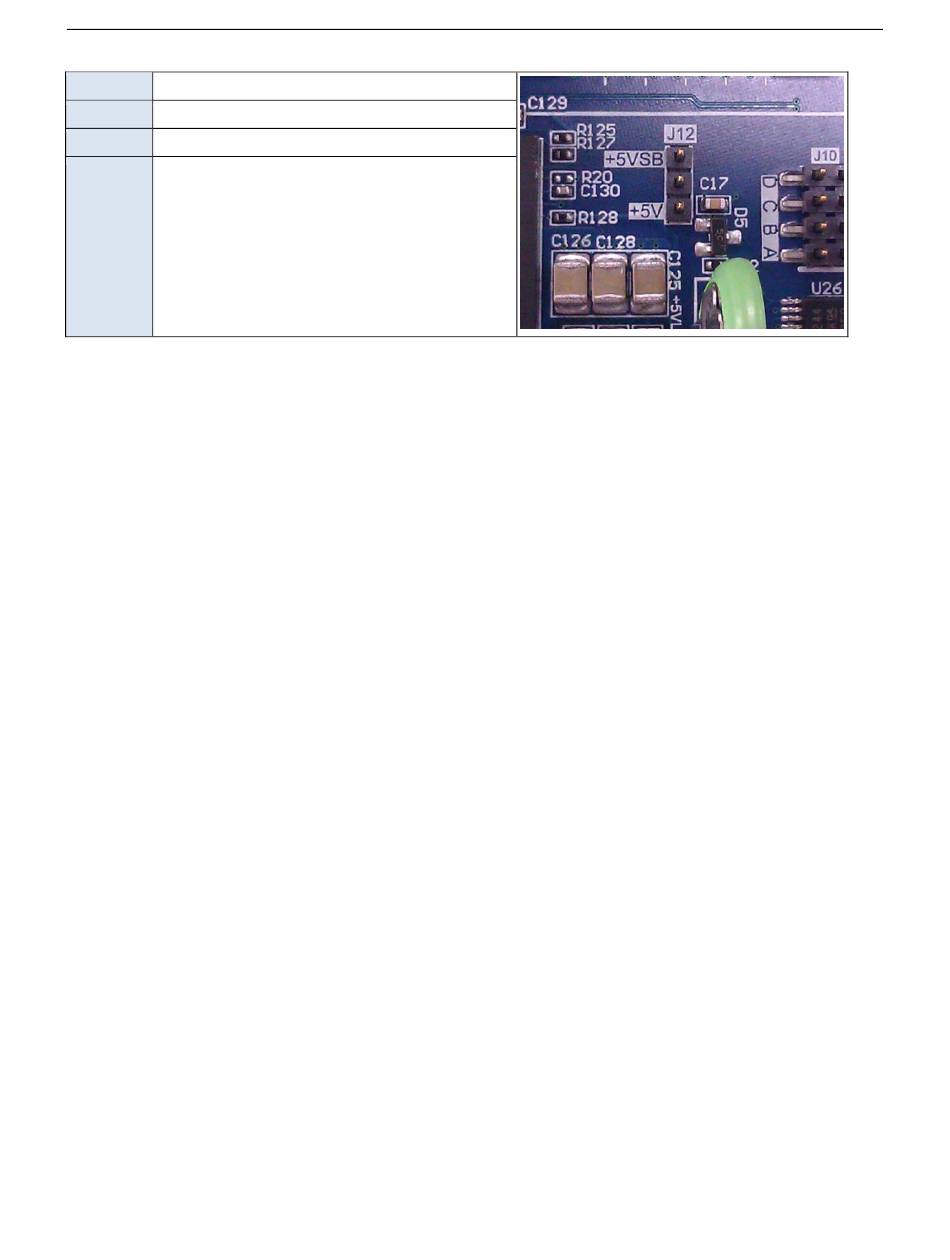

Location
J12
Type
3x1 position 2mm
Usage
Jumper +5VSB and middle pin for ATX or
applications where standby power is available.
Jumper +5V and middle pin for +12V operations.
Also refer to your COM Express module manual
for more information about standby power.
Revision 0.03
