Hardware Description

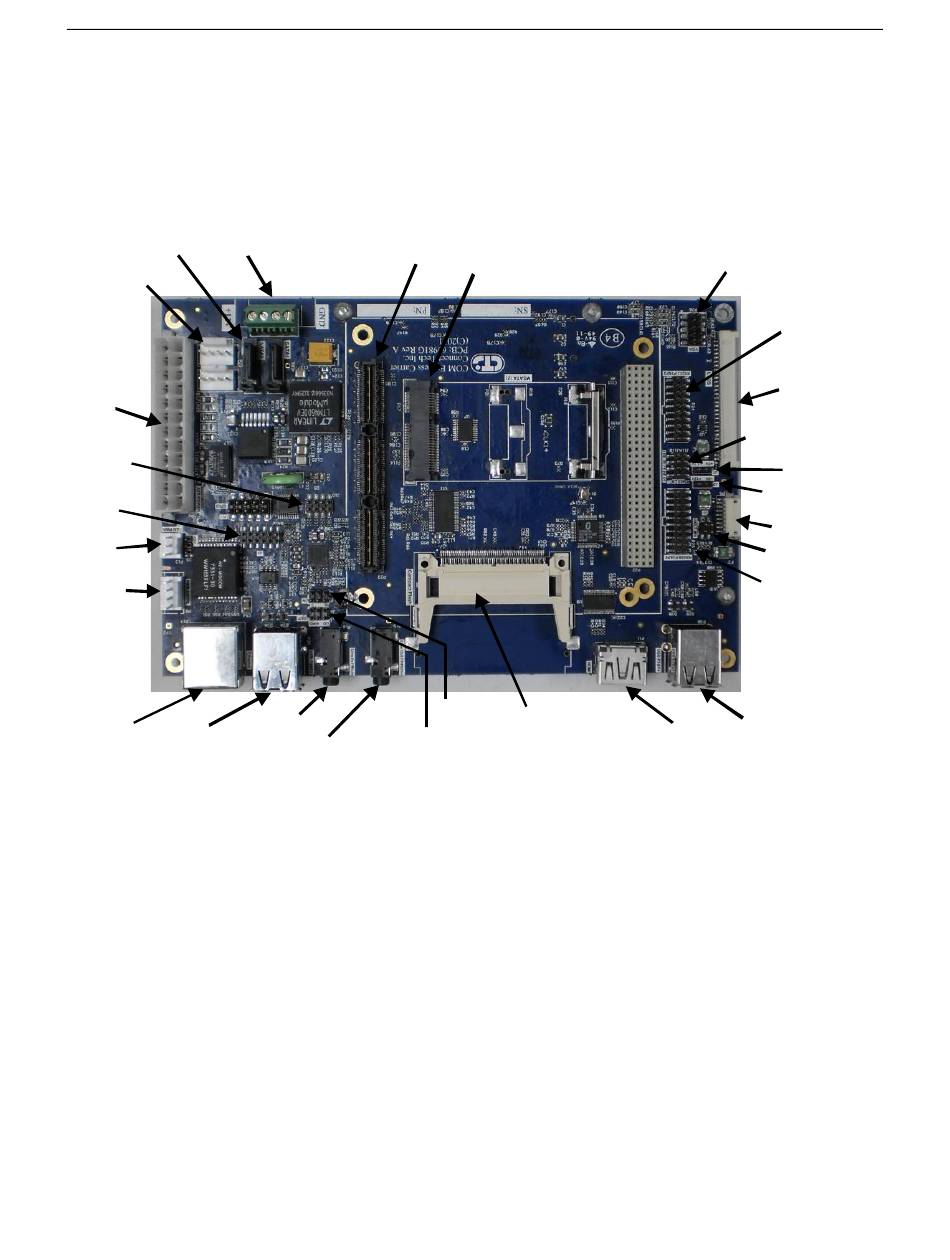

CCG0xx Carrier Board Connector Locations

Top Side

P2A, P2B -
SATA HDD
+12VDC Input
P9, P10 - SATA
HDD Power
P6 - ATX Power
(option)
J10 - Audio
Sense selection
J4 - Power
Control
P13 - Fan
Power
P8 - Power
Signal
P14 - 10/100/1000
P3A - USB
Ethernet
ports 1&2
Revision 0.03
P23 - PC/104
Express
J8/J9 - Audio
in Selection
P16 - Audio IN
J6/J7 - Audio
P15 - Audio Out
out Selection
Connect Tech COM Express Type 2 Carrier Board - User Manual
P17 - mSATA
P12 - Compact
Flash Type I
P26 - VGA
P24 - RS232
Ports 1&2
P4 - LVDS Video
J11 - RS485
Mode
J1 - Panel VDD
Selection
J2 - Panel Backlight
Selection
P5 - Panel
Backlight Control
J3 - Backlight Invert
Selection
P25 - RS485
Ports 3&4
P3B - USB
P11 HDMI
ports3&4
9
