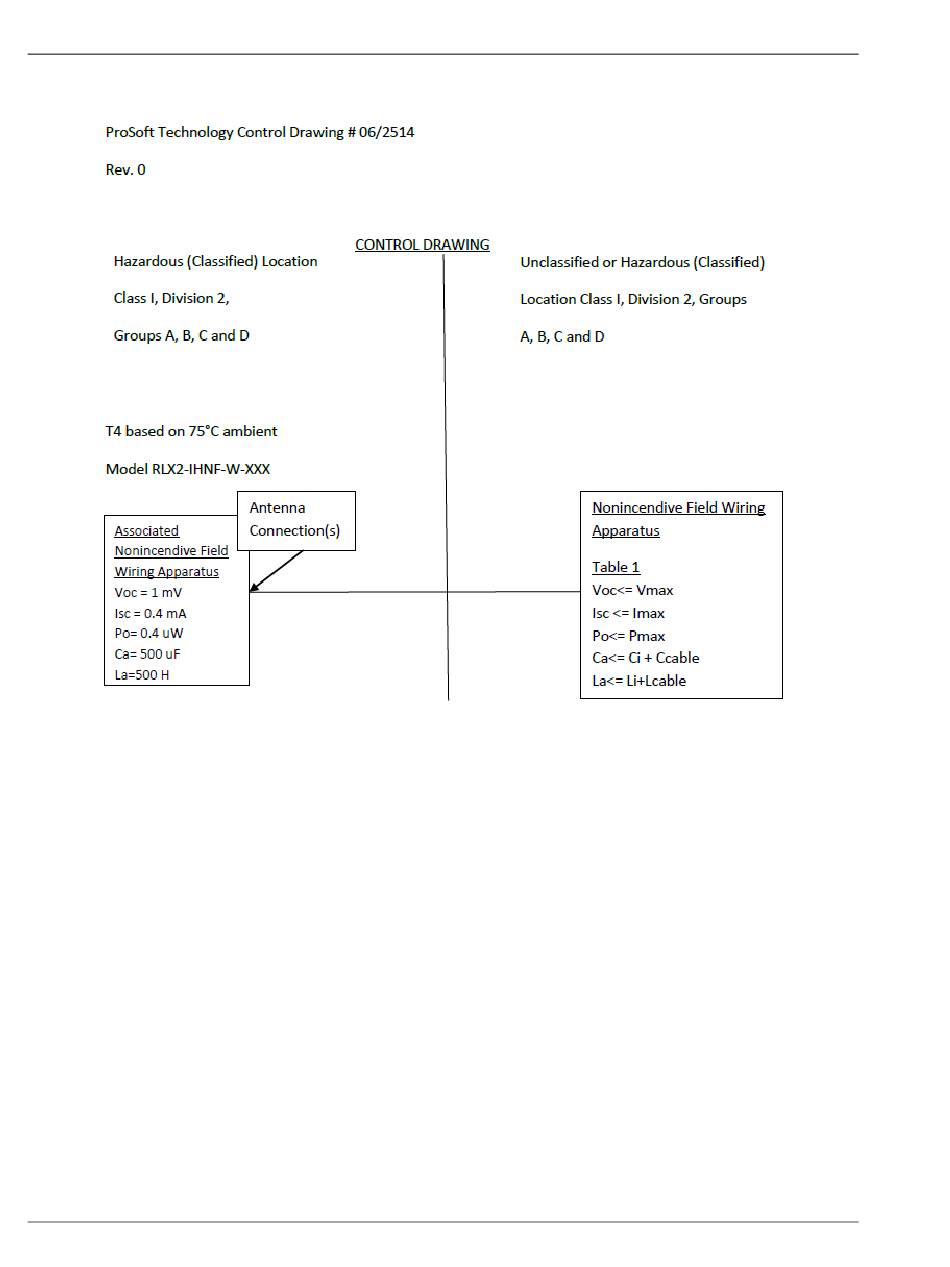

13.1.1 Control Drawing

1. Selected Nonincendive Field wiring apparatus must be third party Listed
as nonincendive field wiring apparatus for the application, and have entity
parameters conforming with the table above.
2. The associated nonincendive field wiring apparatus may also be
connected to simple apparatus as defined in Article 504.2 and installed
and temperature classified in accordance with Article 504.10 (B) and
504.10 (D) of the national electrical code (NFPA 70), or other local codes
as applicable.
3. The associated nonincendive field apparatus may be in a Zone 2 location,
if so approved.
