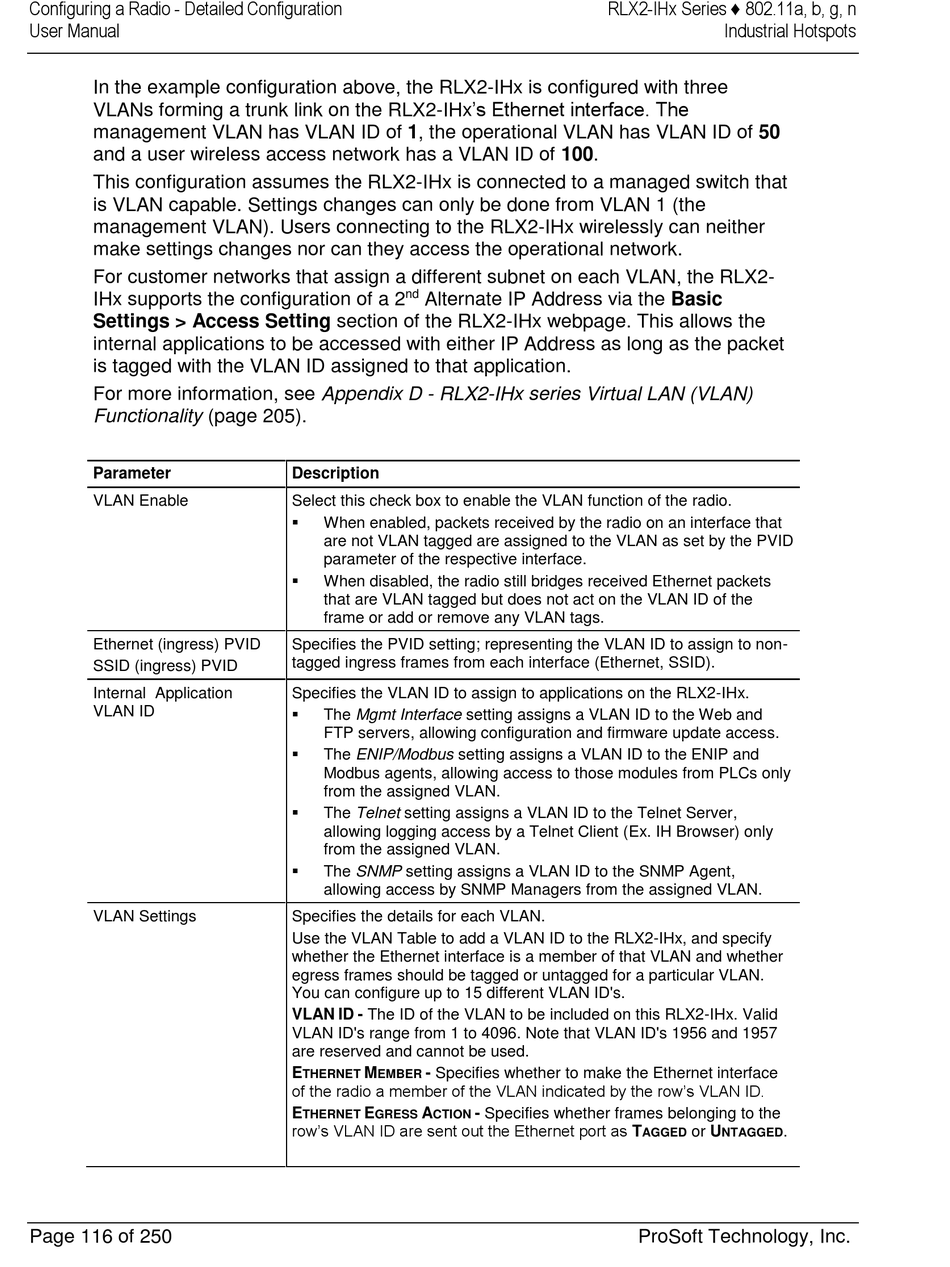

Configuring a Radio - Detailed Configuration
User Manual
In the example configuration above, the RLX2-IHx is configured with three
VLANs forming a trunk link on the RLX2-IHx's Ethernet interface. The
management VLAN has VLAN ID of 1, the operational VLAN has VLAN ID of 50
and a user wireless access network has a VLAN ID of 100.
This configuration assumes the RLX2-IHx is connected to a managed switch that
is VLAN capable. Settings changes can only be done from VLAN 1 (the
management VLAN). Users connecting to the RLX2-IHx wirelessly can neither
make settings changes nor can they access the operational network.
For customer networks that assign a different subnet on each VLAN, the RLX2-
IHx supports the configuration of a 2
Settings > Access Setting section of the RLX2-IHx webpage. This allows the
internal applications to be accessed with either IP Address as long as the packet
is tagged with the VLAN ID assigned to that application.
For more information, see Appendix D - RLX2-IHx series Virtual LAN (VLAN)
Functionality (page 205).
Parameter
VLAN Enable
Ethernet (ingress) PVID
SSID (ingress) PVID
Internal Application
VLAN ID
VLAN Settings
Page 116 of 250
nd
Alternate IP Address via the Basic
Description
Select this check box to enable the VLAN function of the radio.

When enabled, packets received by the radio on an interface that
are not VLAN tagged are assigned to the VLAN as set by the PVID
parameter of the respective interface.

When disabled, the radio still bridges received Ethernet packets
that are VLAN tagged but does not act on the VLAN ID of the
frame or add or remove any VLAN tags.
Specifies the PVID setting; representing the VLAN ID to assign to non-
tagged ingress frames from each interface (Ethernet, SSID).
Specifies the VLAN ID to assign to applications on the RLX2-IHx.

The Mgmt Interface setting assigns a VLAN ID to the Web and
FTP servers, allowing configuration and firmware update access.

The ENIP/Modbus setting assigns a VLAN ID to the ENIP and
Modbus agents, allowing access to those modules from PLCs only
from the assigned VLAN.

The Telnet setting assigns a VLAN ID to the Telnet Server,
allowing logging access by a Telnet Client (Ex. IH Browser) only
from the assigned VLAN.

The SNMP setting assigns a VLAN ID to the SNMP Agent,
allowing access by SNMP Managers from the assigned VLAN.
Specifies the details for each VLAN.
Use the VLAN Table to add a VLAN ID to the RLX2-IHx, and specify
whether the Ethernet interface is a member of that VLAN and whether
egress frames should be tagged or untagged for a particular VLAN.
You can configure up to 15 different VLAN ID's.
VLAN ID - The ID of the VLAN to be included on this RLX2-IHx. Valid
VLAN ID's range from 1 to 4096. Note that VLAN ID's 1956 and 1957
are reserved and cannot be used.
E M - Specifies whether to make the Ethernet interface
THERNET EMBER
of the radio a member of the VLAN indicated by the row's VLAN ID.
E E A
THERNET GRESS CTION
row's VLAN ID are sent out the Ethernet port as T
RLX2-IHx Series ♦ 802.11a, b, g, n
- Specifies whether frames belonging to the
AGGED
ProSoft Technology, Inc.
Industrial Hotspots
or U .
NTAGGED
