RLX2-IHx Series ♦ 802.11a, b, g, n
Industrial Hotspots

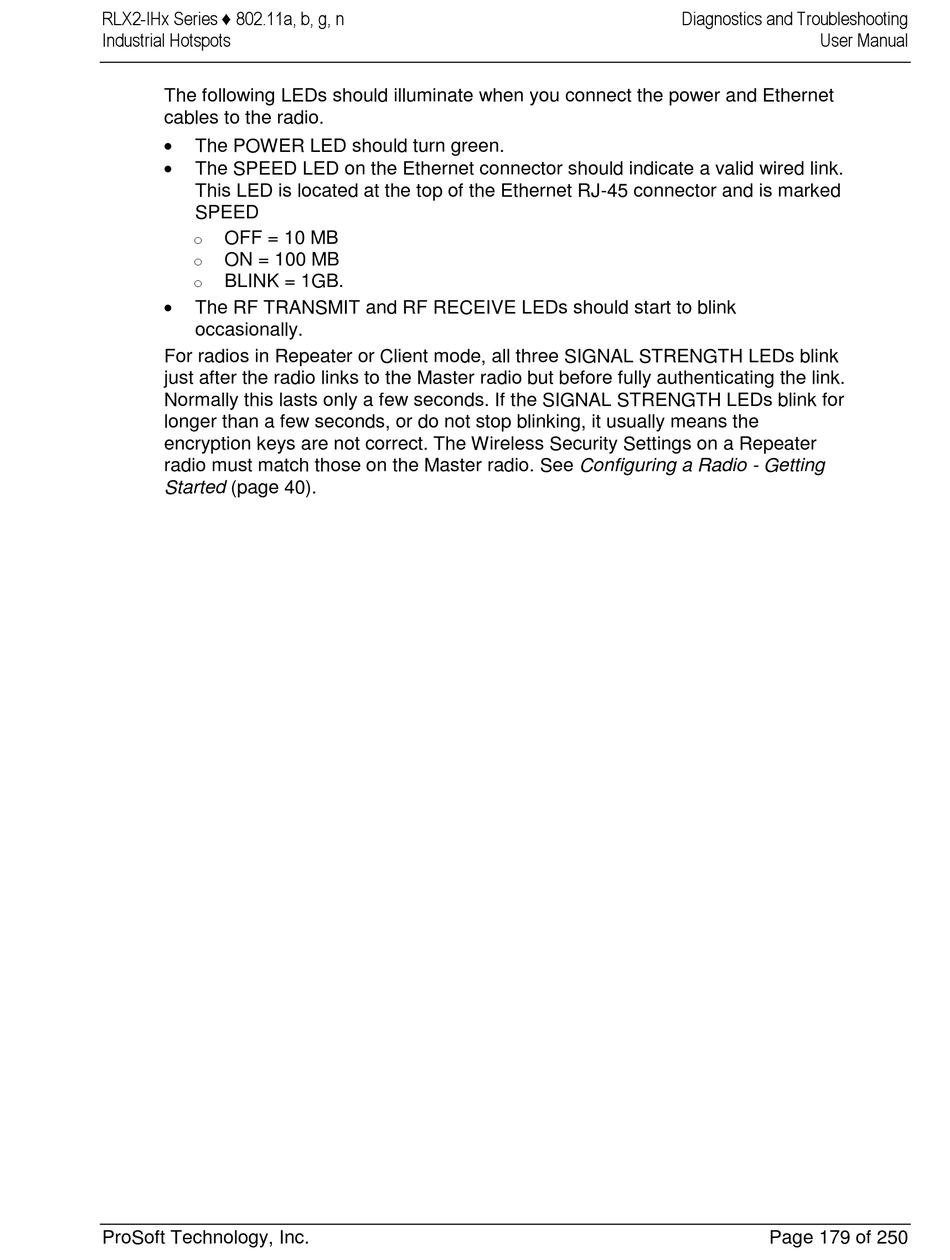

The following LEDs should illuminate when you connect the power and Ethernet
cables to the radio.

The POWER LED should turn green.

The SPEED LED on the Ethernet connector should indicate a valid wired link.
This LED is located at the top of the Ethernet RJ-45 connector and is marked
SPEED
OFF = 10 MB
o
ON = 100 MB
o
BLINK = 1GB.
o

The RF TRANSMIT and RF RECEIVE LEDs should start to blink
occasionally.
For radios in Repeater or Client mode, all three SIGNAL STRENGTH LEDs blink
just after the radio links to the Master radio but before fully authenticating the link.
Normally this lasts only a few seconds. If the SIGNAL STRENGTH LEDs blink for
longer than a few seconds, or do not stop blinking, it usually means the
encryption keys are not correct. The Wireless Security Settings on a Repeater
radio must match those on the Master radio. See Configuring a Radio - Getting
Started (page 40).
ProSoft Technology, Inc.
Diagnostics and Troubleshooting
User Manual
Page 179 of 250
