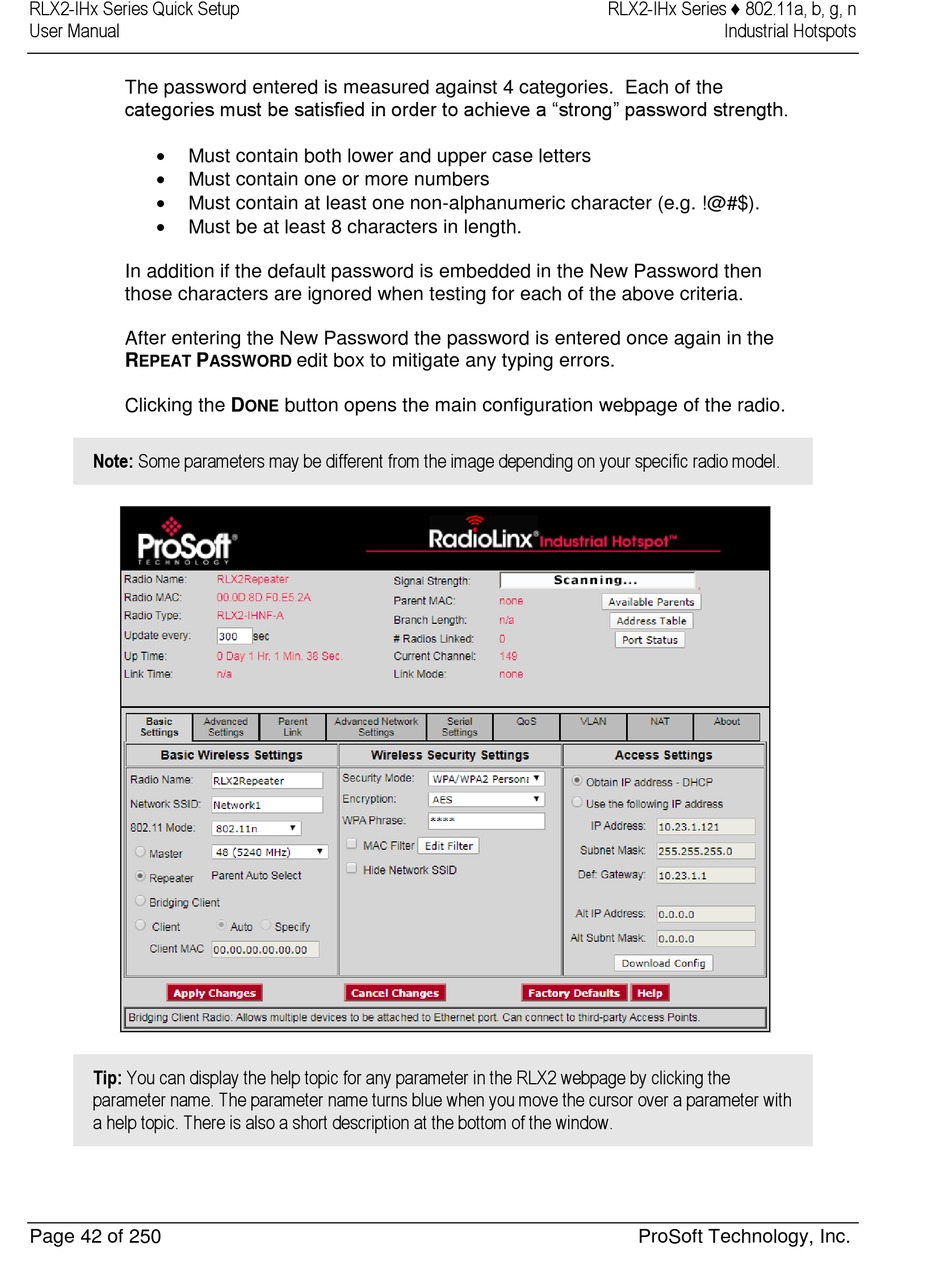

ProSoft Technology RLX2-IHx Series User Manual page 42

RLX2-IHx Series Quick Setup
User Manual
The password entered is measured against 4 categories. Each of the
categories must be satisfied in order to achieve a "strong" password strength.

Must contain both lower and upper case letters

Must contain one or more numbers

Must contain at least one non-alphanumeric character (e.g. !@#$).

Must be at least 8 characters in length.
In addition if the default password is embedded in the New Password then
those characters are ignored when testing for each of the above criteria.
After entering the New Password the password is entered once again in the
R P
EPEAT ASSWORD
Clicking the D
Note: Some parameters may be different from the image depending on your specific radio model.
Tip: You can display the help topic for any parameter in the RLX2 webpage by clicking the
parameter name. The parameter name turns blue when you move the cursor over a parameter with
a help topic. There is also a short description at the bottom of the window.
Page 42 of 250
edit box to mitigate any typing errors.
button opens the main configuration webpage of the radio.
ONE
RLX2-IHx Series ♦ 802.11a, b, g, n
Industrial Hotspots
ProSoft Technology, Inc.
