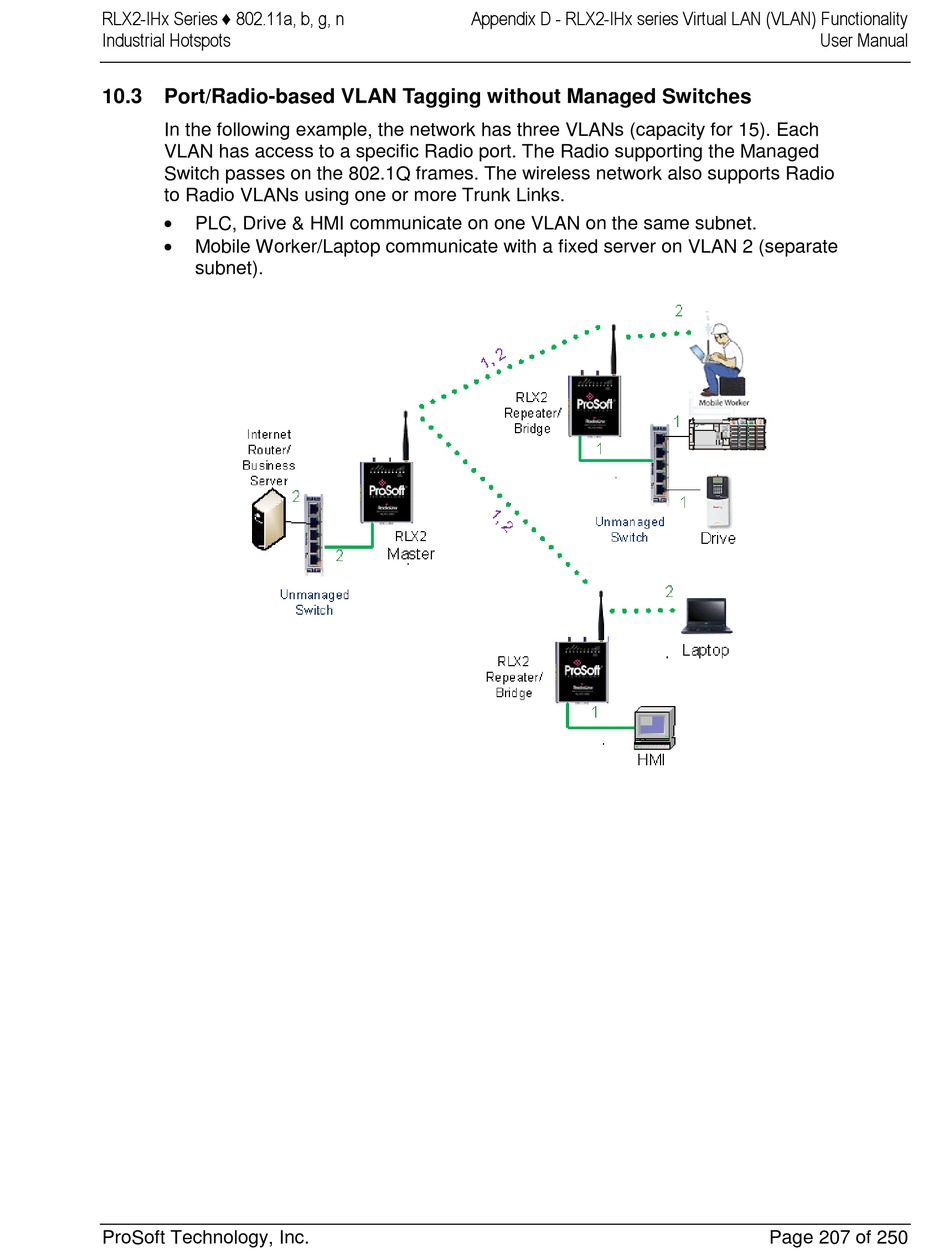

10.3 Port/Radio-based VLAN Tagging without Managed Switches

In the following example, the network has three VLANs (capacity for 15). Each
VLAN has access to a specific Radio port. The Radio supporting the Managed
Switch passes on the 802.1Q frames. The wireless network also supports Radio
to Radio VLANs using one or more Trunk Links.

PLC, Drive & HMI communicate on one VLAN on the same subnet.

Mobile Worker/Laptop communicate with a fixed server on VLAN 2 (separate
subnet).
