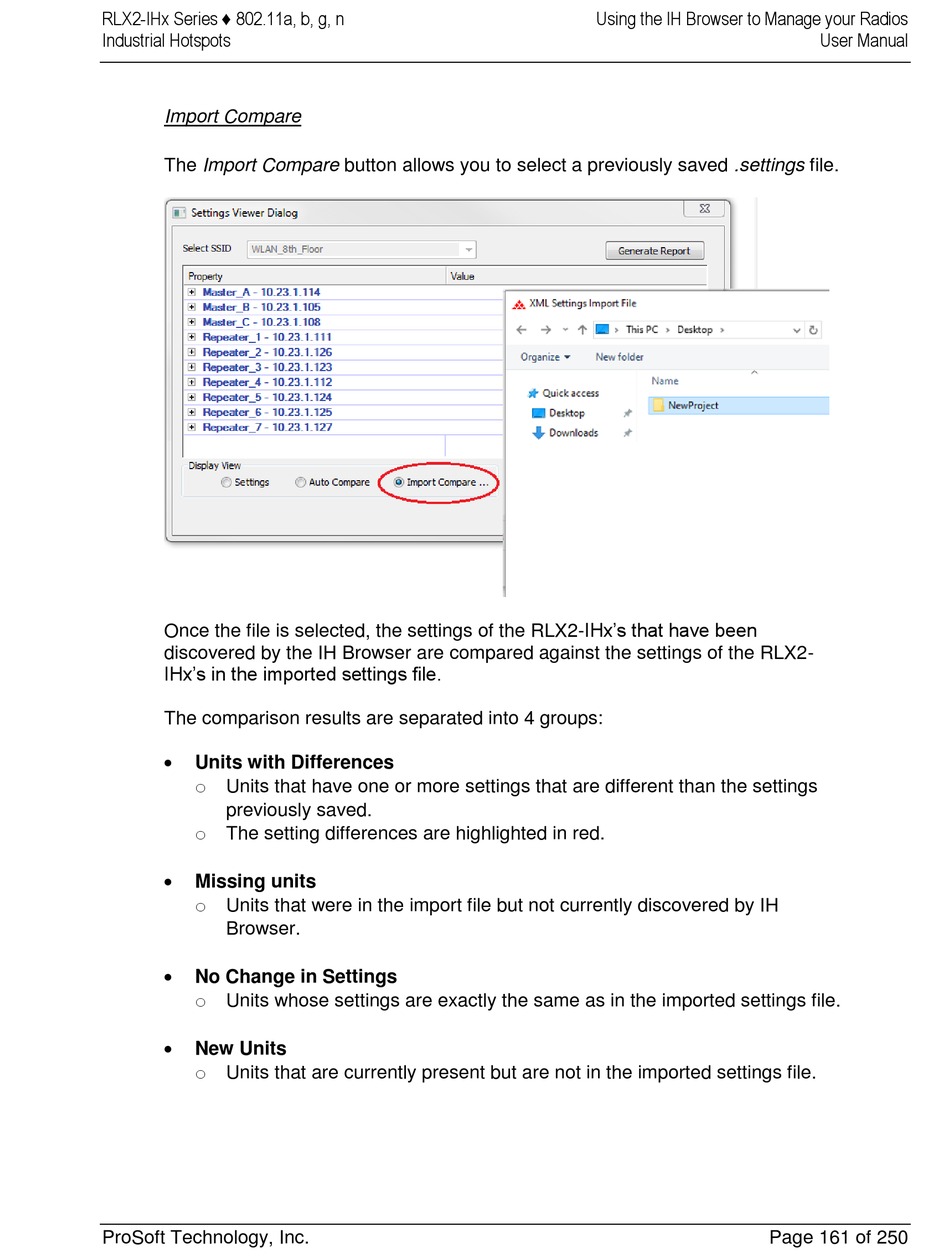

Import Compare
The Import Compare button allows you to select a previously saved .settings file.
Once the file is selected, the settings of the RLX2-IHx's that have been
discovered by the IH Browser are compared against the settings of the RLX2-
IHx's in the imported settings file.
The comparison results are separated into 4 groups:

Units with Differences
o Units that have one or more settings that are different than the settings
previously saved.
o The setting differences are highlighted in red.

Missing units
o Units that were in the import file but not currently discovered by IH
Browser.

No Change in Settings
o Units whose settings are exactly the same as in the imported settings file.

New Units
o Units that are currently present but are not in the imported settings file.
