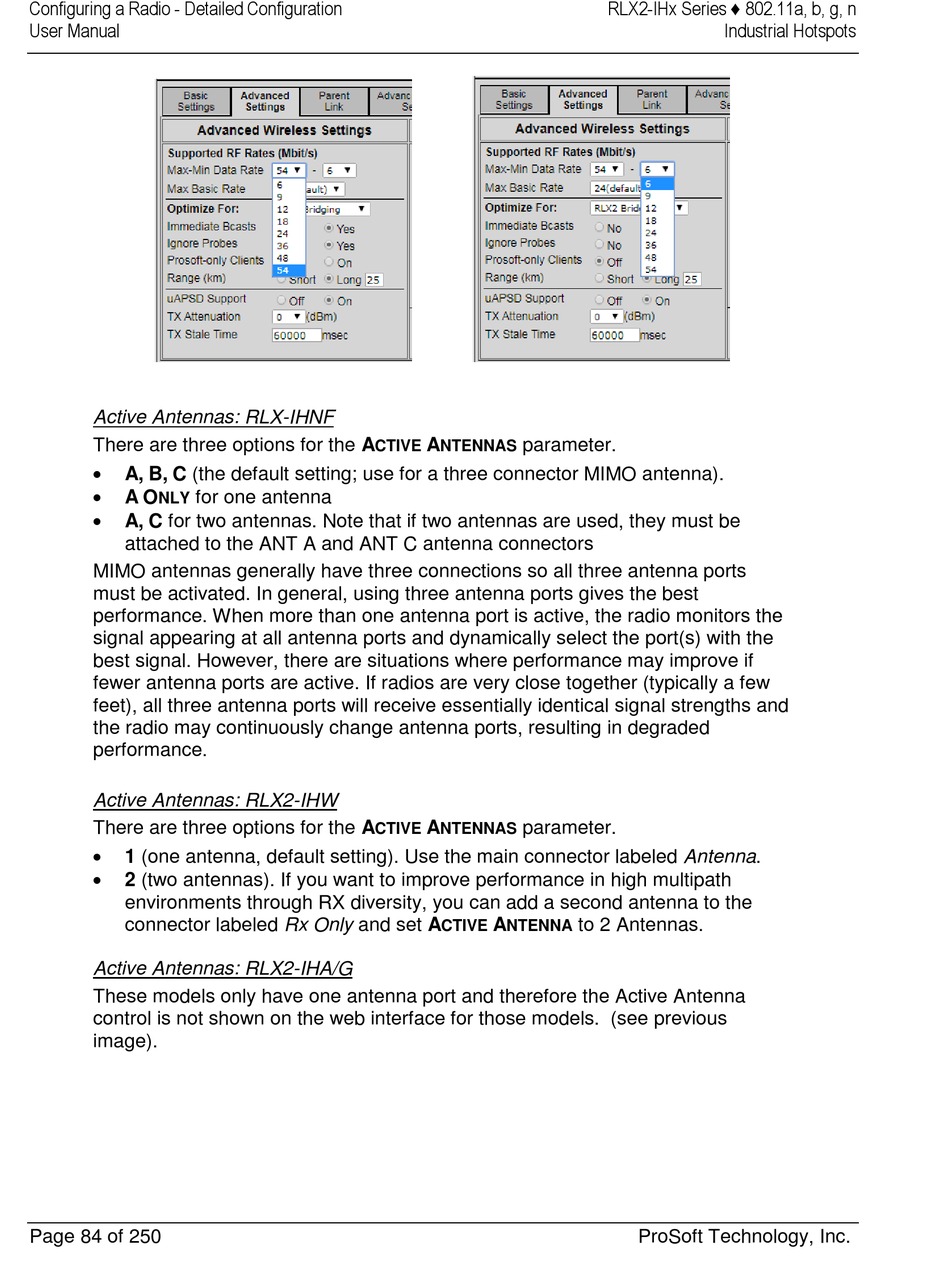

Configuring a Radio - Detailed Configuration
User Manual
Active Antennas: RLX-IHNF
There are three options for the A

A, B, C (the default setting; use for a three connector MIMO antenna).

A O for one antenna
NLY

A, C for two antennas. Note that if two antennas are used, they must be
attached to the ANT A and ANT C antenna connectors
MIMO antennas generally have three connections so all three antenna ports
must be activated. In general, using three antenna ports gives the best
performance. When more than one antenna port is active, the radio monitors the
signal appearing at all antenna ports and dynamically select the port(s) with the
best signal. However, there are situations where performance may improve if
fewer antenna ports are active. If radios are very close together (typically a few
feet), all three antenna ports will receive essentially identical signal strengths and
the radio may continuously change antenna ports, resulting in degraded
performance.
Active Antennas: RLX2-IHW
There are three options for the A

1 (one antenna, default setting). Use the main connector labeled Antenna.

2 (two antennas). If you want to improve performance in high multipath
environments through RX diversity, you can add a second antenna to the
connector labeled Rx Only and set A
Active Antennas: RLX2-IHA/G
These models only have one antenna port and therefore the Active Antenna
control is not shown on the web interface for those models. (see previous
image).
Page 84 of 250
A parameter.
CTIVE NTENNAS
A parameter.
CTIVE NTENNAS
A
CTIVE NTENNA
RLX2-IHx Series ♦ 802.11a, b, g, n
Industrial Hotspots
to 2 Antennas.
