1

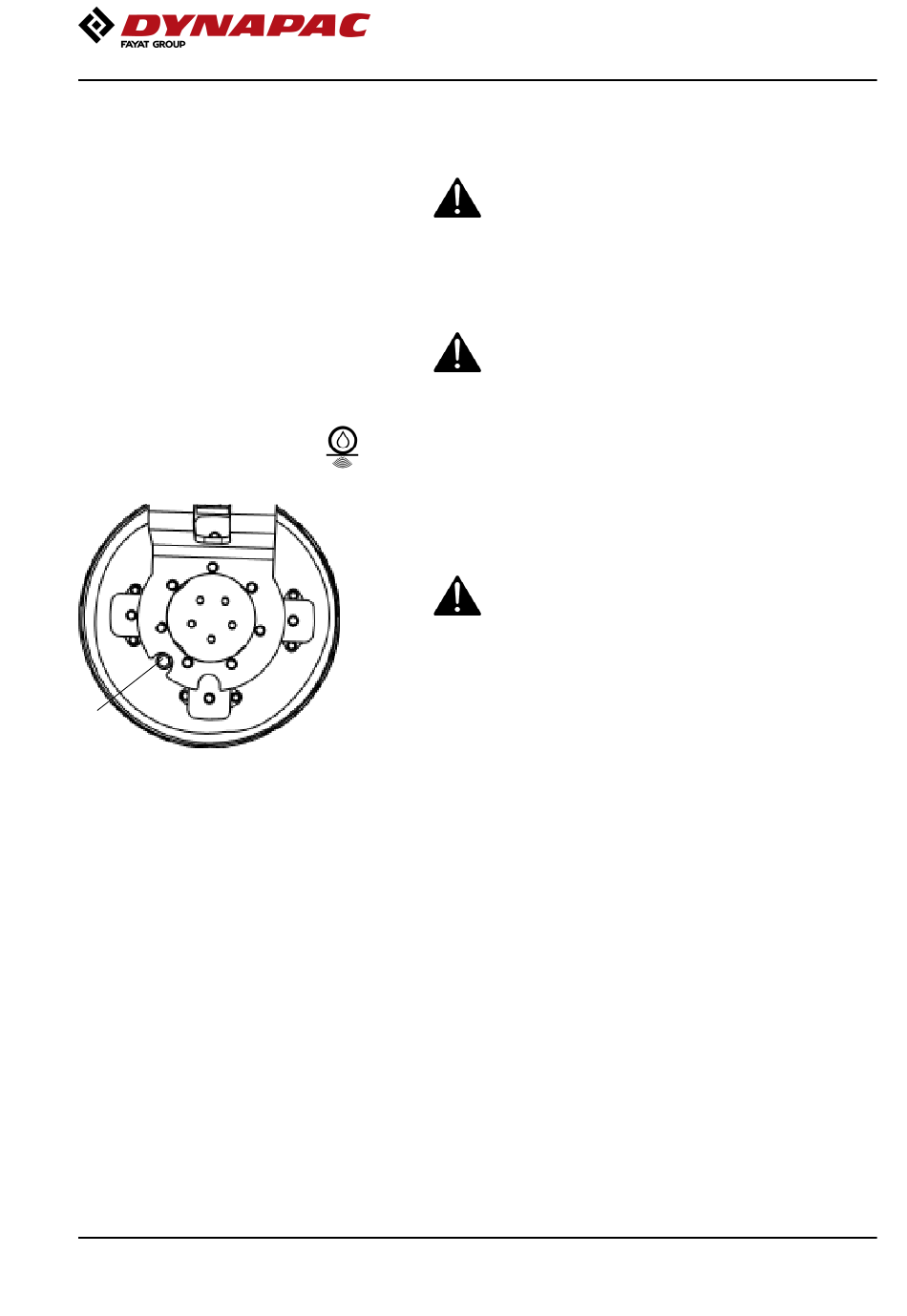

Figure. Front drum, drive side
1. Oil plug
2019-09-23
Maintenance - 500h
Park the roller on a level surface.
Park the roller on a level surface.
The engine must be switched off and the
The engine must be switched off and the
parking brake activated when checking or
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
adjusting the roller, unless otherwise specified.
Check that the engine cover is fully open before
Check that the engine cover is fully open before
carrying out work underneath it.
carrying out work underneath it.
Front drum - Checking the oil level
Park the roller on a level surface, and drive the roller
slowly until the oil plug (1) is in the middle of the
semicircle shaped notch in the drum suspension.
Switch off the engine, disconnect the power and
Switch off the engine, disconnect the power and
push in the reserve/parking brake knob.
push in the reserve/parking brake knob.
Unscrew the plug and check that the oil level reaches
the hole's lower edge. If necessary, top off with fresh
transmission fluid. See under the heading lubricants
for correct fluid grade.
Clean the magnetic oil plug (1) from any metallic
residue, and refit the plug.
