HDMI 2.0 EXTENDER OVER CAT.6/7 CABLE 4K

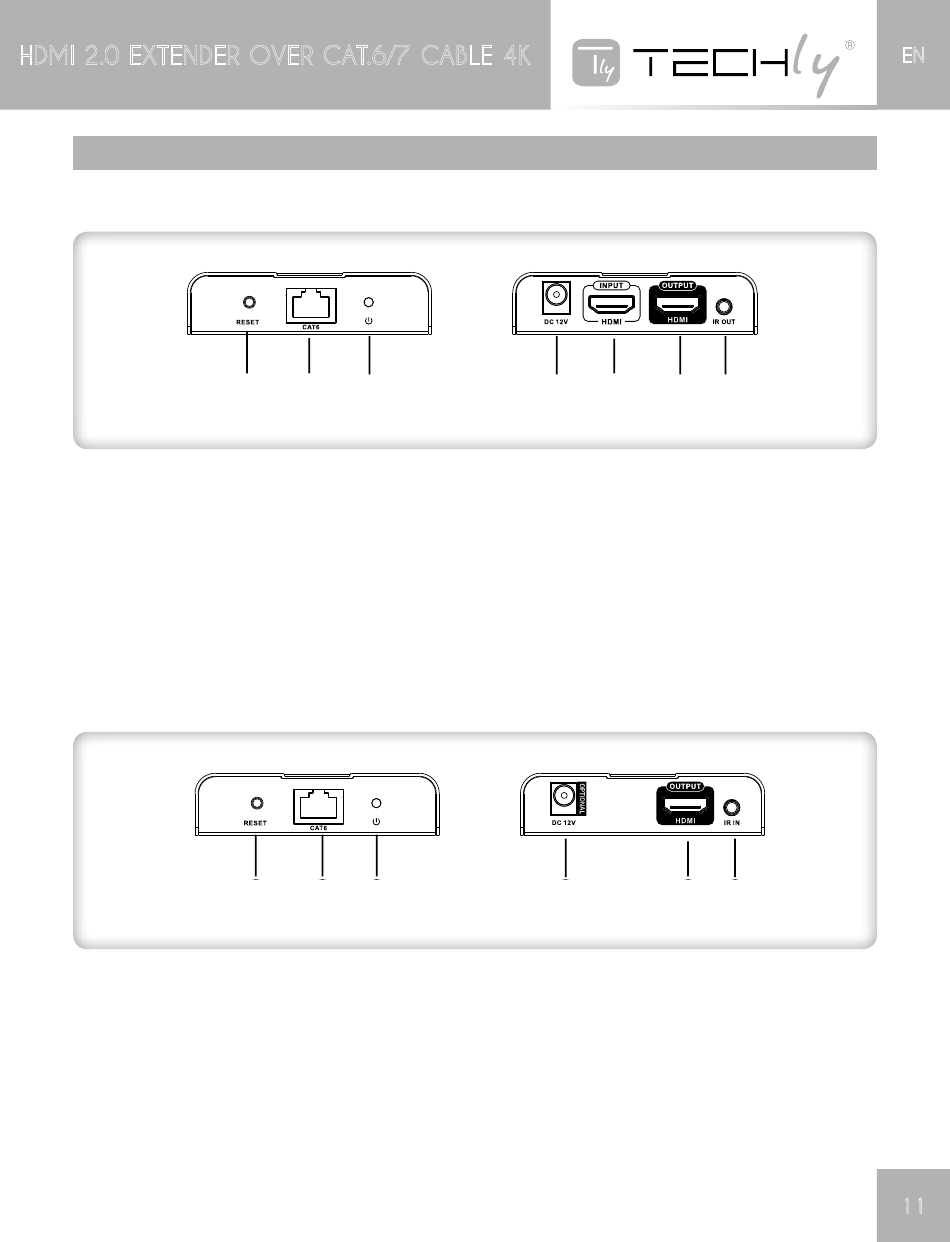

PanEL dEscrIPtIon

1.Transmitter unit (TX)
Reset button
➊
RJ45 signal output
➋
Power signal indicator
➌
Power input
➍
HDMI signal input
➎
HDMI signal output
➏
IR signal output
➐
2. Receiver unit (RX)
Reset button
➊
R145 signal input
➋
Power signal indicator
➌
Power input
➍
HDMI signal output
➎
IR signal input
➏
➊ ➋ ➌
Press for restarting the unit
Connect with Cat6 or better cable
The red light indicates that the power is on. Red light indicates no
image transmission, blue light indicates image transmission
Connect with DC12V/1A power supply
Connect with source device
Connect with HDMI display device
Connect with IR blaster extension cable
➊ ➋ ➌
Press for restarting the device
Connect with Cat6 or better cable
The red light indicates that the power is on. Red light indicates no
image transmission, blue light indicates image transmission
Connect with DC12V/1A power adapter (optional)
Connect with the display device
Connect with IR receiver extension cable
➍ ➎ ➏ ➐
➍ ➎
EN
➏
11
