HDMI WALL PLATE EXTENDER

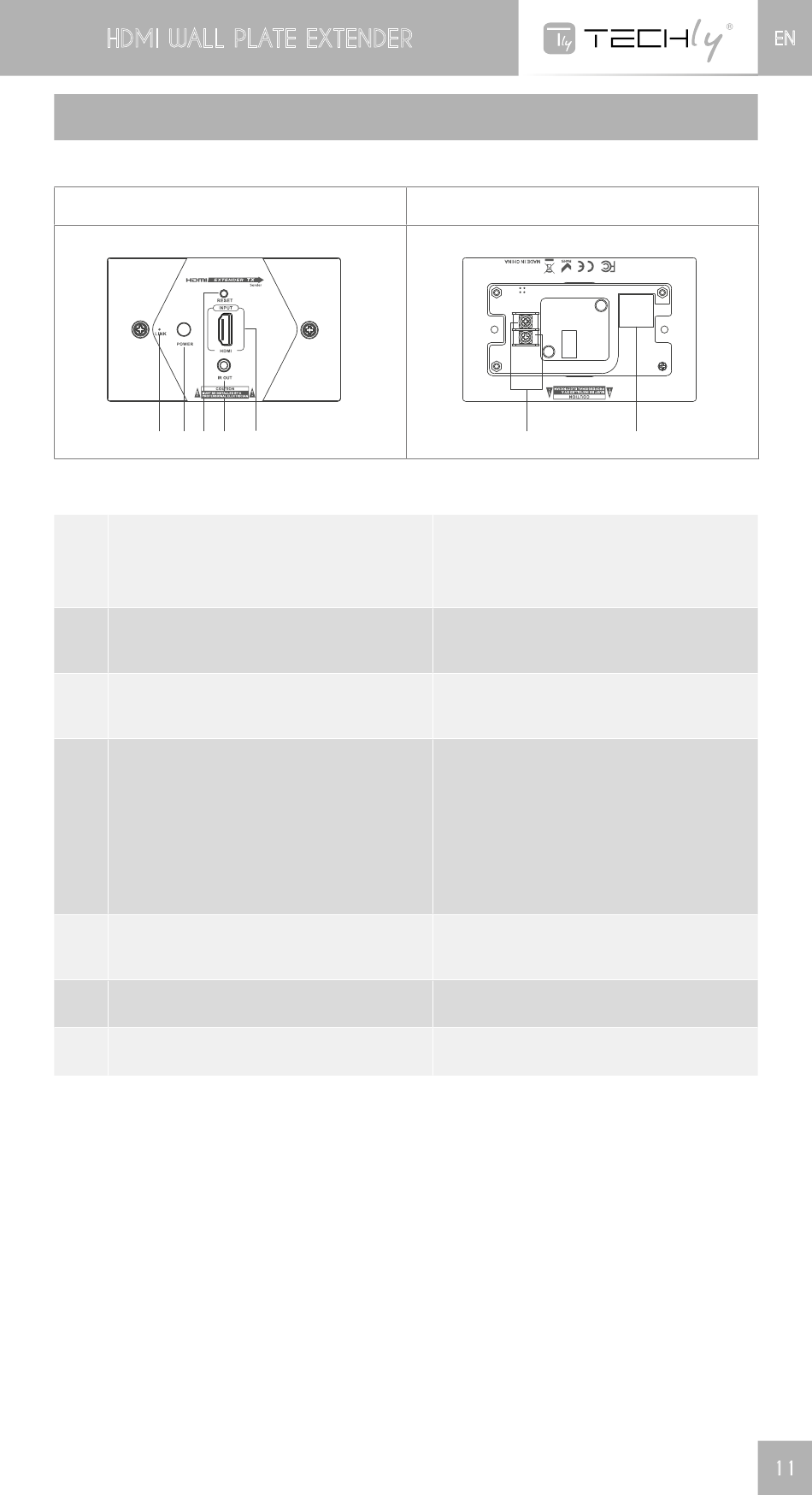

PANEL DESCRIPTION

1. Transmitter unit (TX)
Front panel
➊ ➋➌➍ ➎
➊
HDMI signal indicator
➋
Power switch
➌
Reset button
IR blaster extension cable
➍
interface
➎
HDMI signal input
➏
Power line interface
➐
RJ45 signal output
Rear panel
➏
It turns on all the time when
HDMI signal input, but
flashes when no signal input
Press this button to turn on/
off the device
Press reset button to restart
the device
Connects with IR blaster
extension cable. Please put
the IR blaster close to the
source device to get the best
IR signal transmission from
receiver
Connect with the source
device
Connect power line
Output encoded HDMI signal
EN EN
➐
