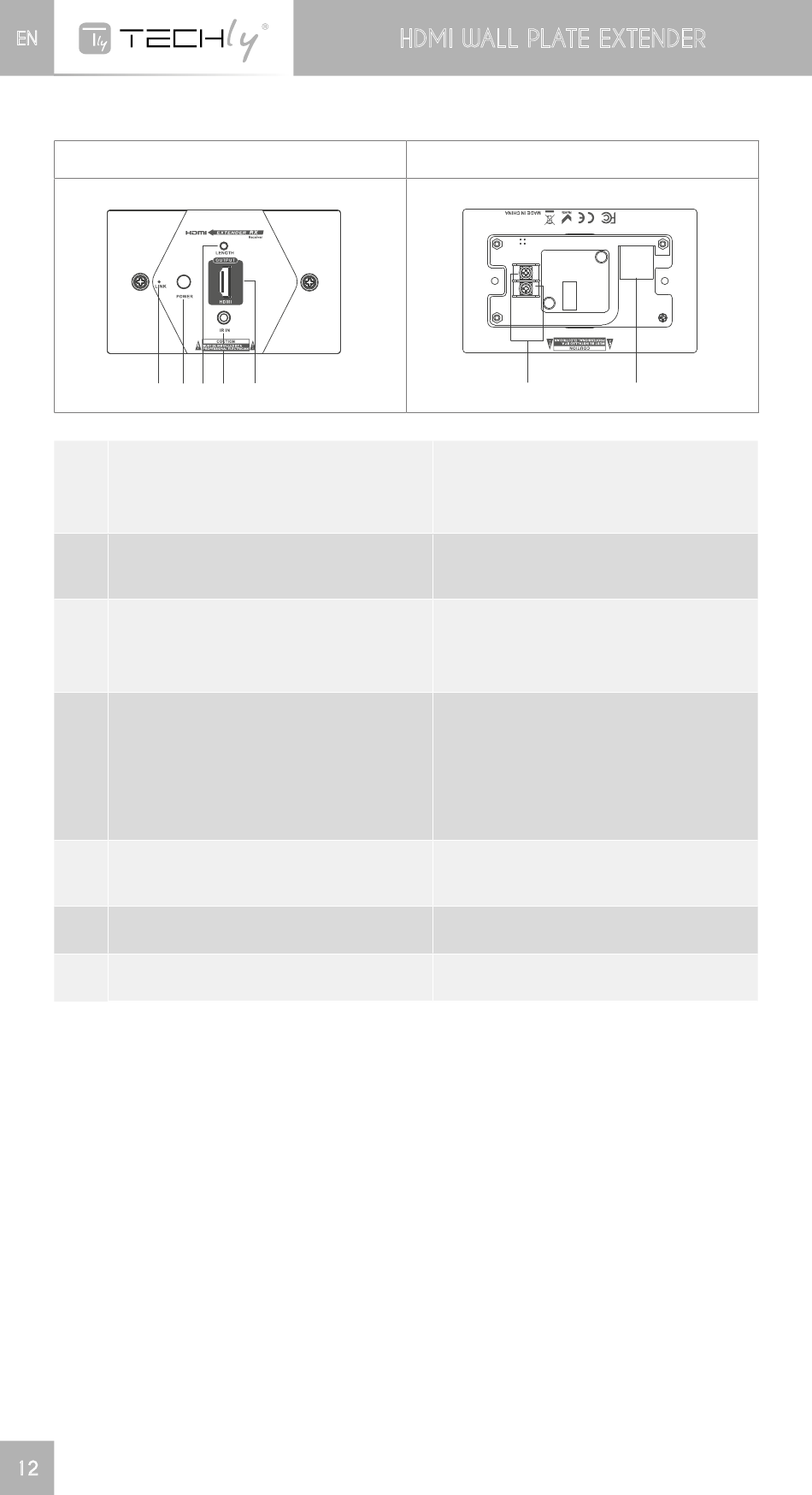

2. Receiver unit (RX)
➊ ➋➌➍ ➎
➊
HDMI signal indicator
➋
Power switch
➌
LENGTH button
IR receiver extension cable
➍
interface
➎
HDMI signal output
➏
Power line interface
➐
RJ45 signal input
Remarks: Users can press button "LENGTH" to adjust transmission
distance of this device automatically or manually. If users do not press
this button when power on, then the device will work like last time
because of memory function. If users press this button after power
on, the first two presses will make the device adjust the distance
accordingly to the network cable length automatically. After those
two presses, if users continue to press this button, then it will go to
the mode of adjusting transmission distance manually. There are 10
levels totally and adding one more press means a new level. When
users finish the 10 levels adjusting manually it will be back to adjust
transmission distance automatically mode and into new loop.
12
Front panel
HDMI WALL PLATE EXTENDER
Rear panel
➏
It turns on all the time when
HDMI signal input, but
flashes when no signal input
Press this button to turn on/
off the device
For adjusting the unit to self-
adapt to the length of the
network cable
Connects with IR receiver
extension cable. Please
make sure the remote control
is within the required range of
IR receiver
Connect with the display
device
Connect power line
Input encoded HDMI signal
➐
