Rear Panel; Side Panel; Front Panel Assembly - MES SQA-V Gold Service Manual

SQA-V
and
SQA-V

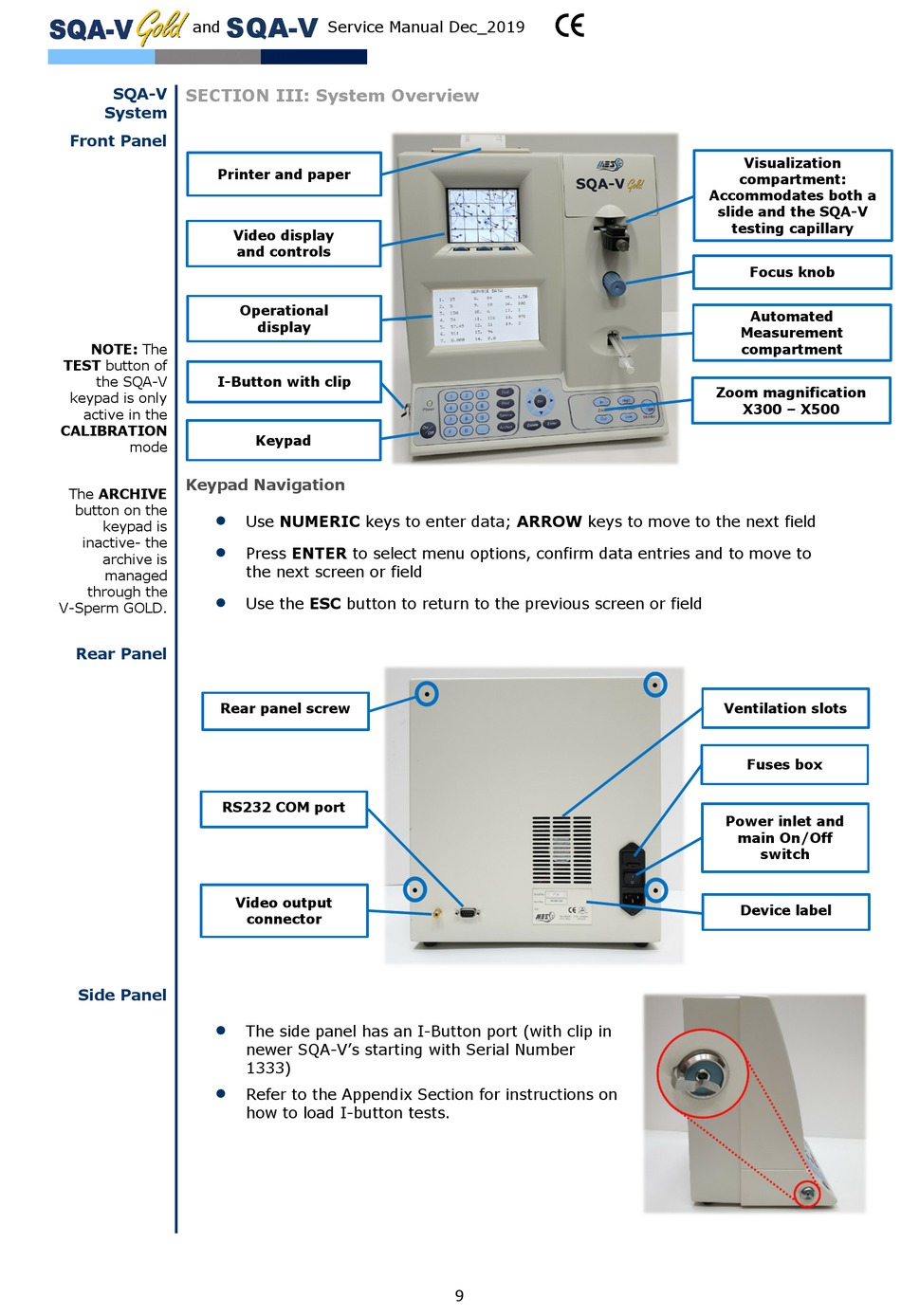

SECTION III: System Overview
System
Front Panel
Printer and paper
NOTE: The
TEST button of
the SQA-V I-Button with clip
keypad is only
active in the
CALIBRATION
mode
Keypad Navigation
The ARCHIVE
button on the

keypad is
inactive- the

archive is
managed
through the

V-Sperm GOLD.

Rear Panel

Rear panel screw
RS232 COM port

Side Panel



Service Manual Dec_2019
Video display
and controls
Operational
display
Keypad
Use NUMERIC keys to enter data; ARROW keys to move to the next field
Press ENTER to select menu options, confirm data entries and to move to
the next screen or field
Use the ESC button to return to the previous screen or field
Video output
connector
The side panel has an I-Button port (with clip in
newer SQA-V's starting with Serial Number
1333)
Refer to the Appendix Section for instructions on
how to load I-button tests.
9
Visualization
compartment:
Accommodates both a
slide and the SQA-V
testing capillary
Focus knob
Automated
Measurement
compartment
Zoom magnification
X300 – X500
Ventilation slots
Fuses box
Power inlet and
main On/Off
switch
Device label
