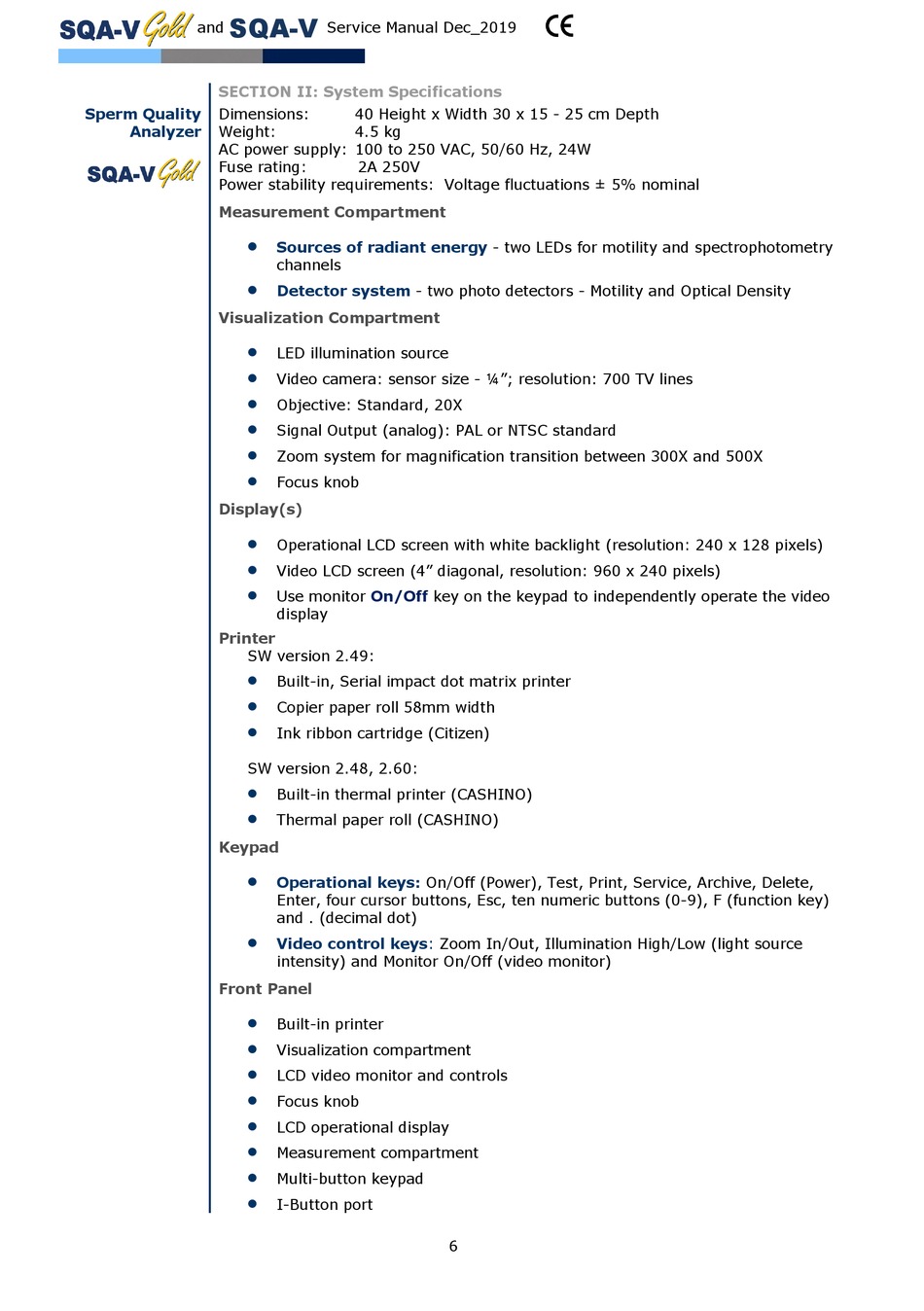

SECTION II: System Specifications

Sperm Quality Dimensions:
Analyzer Weight:
AC power supply: 100 to 250 VAC, 50/60 Hz, 24W
Fuse rating:
Power stability requirements: Voltage fluctuations ± 5% nominal
Measurement Compartment


Visualization Compartment






Display(s)



Printer
SW version 2.49:



SW version 2.48, 2.60:



Keypad




Front Panel









Service Manual Dec_2019
40 Height x Width 30 x 15 - 25 cm Depth
4.5 kg
2A 250V
Sources of radiant energy
channels
Detector system - two photo detectors - Motility and Optical Density
LED illumination source
Video camera: sensor size - ¼"; resolution: 700 TV lines
Objective: Standard, 20X
Signal Output (analog): PAL or NTSC standard
Zoom system for magnification transition between 300X and 500X
Focus knob
Operational LCD screen with white backlight (resolution: 240 x 128 pixels)
Video LCD screen (4" diagonal, resolution: 960 x 240 pixels)
Use monitor On/Off key on the keypad to independently operate the video
display
Built-in, Serial impact dot matrix printer
Copier paper roll 58mm width
Ink ribbon cartridge (Citizen)
Built-in thermal printer (CASHINO)
Thermal paper roll (CASHINO)
Operational keys: On/Off (Power), Test, Print, Service, Archive, Delete,
Enter, four cursor buttons, Esc, ten numeric buttons (0-9), F (function key)
and . (decimal dot)
Video control keys: Zoom In/Out, Illumination High/Low (light source
intensity) and Monitor On/Off (video monitor)
Built-in printer
Visualization compartment
LCD video monitor and controls
Focus knob
LCD operational display
Measurement compartment
Multi-button keypad
I-Button port
- two LEDs for motility and spectrophotometry
