MES SQA-V Gold Service Manual page 29

and
CCD Cleaning 16.
or
ISSUE: The CCD needs cleaning (spots on the video screen)
Replacement
Instructions 1. Open the SQA-V
for SQA-Vs
2. Remove the four screws connecting the optical assembly to
with SN# 770
and below
3. Pull the optical assembly to remove it from the front panel
4. Disassemble the optical assembly, remove a total of seven
5. Turn the optical assembly upside down to lift the lid that is
6. Disconnect the external video cable from the internal video
7. The internal video cable is held in place by two plastic
8. Gently lay the optical assembly on its rear section.
9. Move the internal video cable aside and make sure nothing
10. Turn on the SQA-V at the main switch on the rear panel.
11. Press the ZOOM-IN key on the SQA-V keypad.
12. Pull out the CCD assembly.
13. Turn off the SQA-V main switch.
14. Use a Phillips screwdriver to remove the two screws that
15. The CCD is now visible within the CCD adaptor.
16. Use ONLY lint free commercial
17. Place the CCD back into the
18. Using a Phillips screwdriver
SQA-V
Service Manual Dec_2019

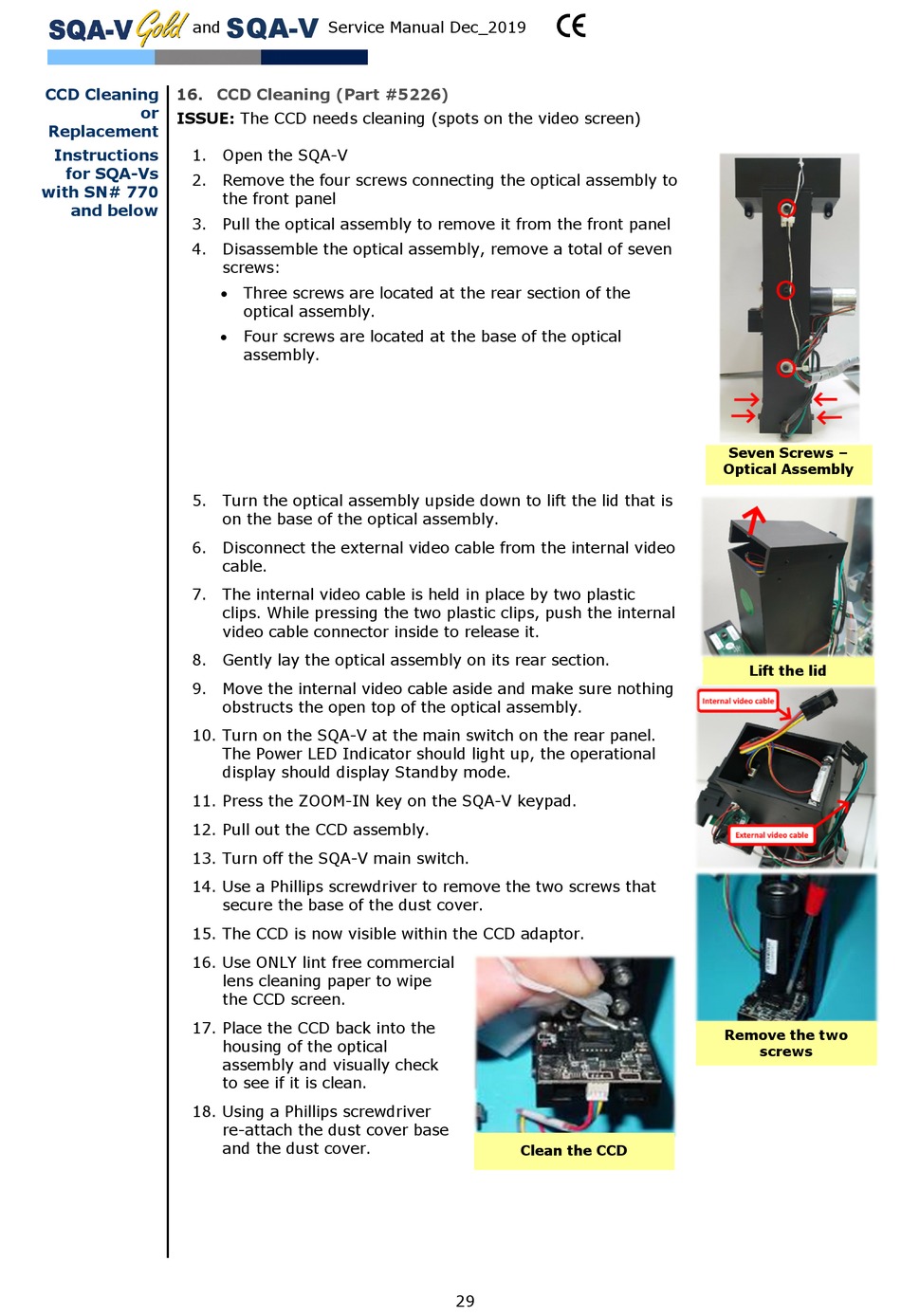

CCD Cleaning (Part #5226)
the front panel
screws:
 Three screws are located at the rear section of the
optical assembly.
Four screws are located at the base of the optical

assembly.
on the base of the optical assembly.
cable.
clips. While pressing the two plastic clips, push the internal
video cable connector inside to release it.
obstructs the open top of the optical assembly.
The Power LED Indicator should light up, the operational
display should display Standby mode.
secure the base of the dust cover.
lens cleaning paper to wipe
the CCD screen.
housing of the optical
assembly and visually check
to see if it is clean.
re-attach the dust cover base
and the dust cover.
Clean the CCD
29
Seven Screws –
Optical Assembly
Lift the lid
Remove the two
screws
