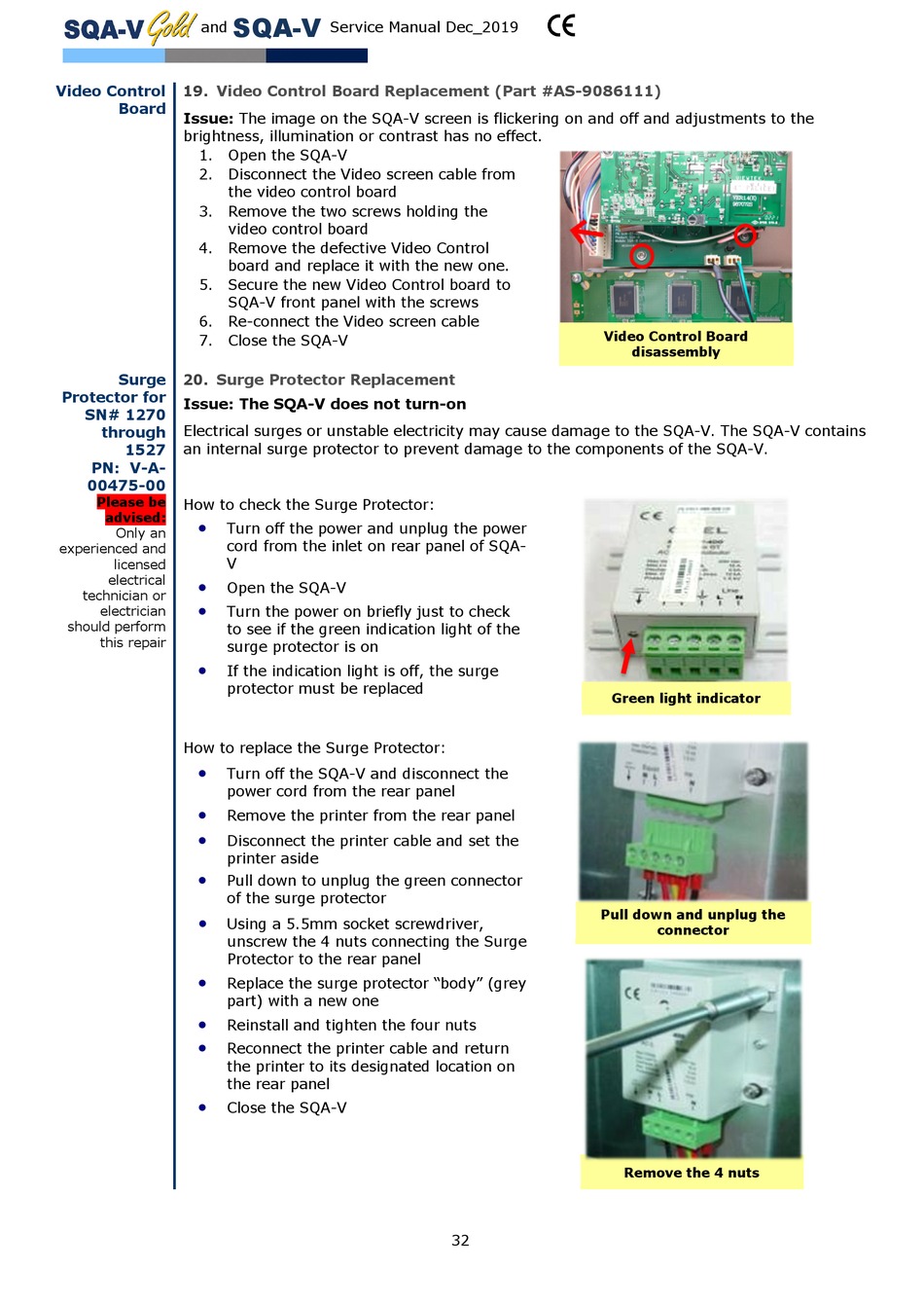

Video Control Board Replacement - MES SQA-V Gold Service Manual

and
Video Control 19. Video Control Board Replacement (Part #AS-9086111)
Board
Issue: The image on the SQA-V screen is flickering on and off and adjustments to the
brightness, illumination or contrast has no effect.
1. Open the SQA-V
2. Disconnect the Video screen cable from
3. Remove the two screws holding the
4. Remove the defective Video Control
5. Secure the new Video Control board to
6. Re-connect the Video screen cable
7. Close the SQA-V
Surge 20. Surge Protector Replacement
Protector for
Issue: The SQA-V does not turn-on
SN# 1270
Electrical surges or unstable electricity may cause damage to the SQA-V. The SQA-V contains
through
an internal surge protector to prevent damage to the components of the SQA-V.
1527
PN: V-A-
00475-00
Please be
How to check the Surge Protector:
advised:

Only an
experienced and
licensed
electrical

technician or

electrician
should perform
this repair

How to replace the Surge Protector:









SQA-V
Service Manual Dec_2019
the video control board
video control board
board and replace it with the new one.
SQA-V front panel with the screws
Turn off the power and unplug the power
cord from the inlet on rear panel of SQA-
V
Open the SQA-V
Turn the power on briefly just to check
to see if the green indication light of the
surge protector is on
If the indication light is off, the surge
protector must be replaced
Turn off the SQA-V and disconnect the
power cord from the rear panel
Remove the printer from the rear panel
Disconnect the printer cable and set the
printer aside
Pull down to unplug the green connector
of the surge protector
Using a 5.5mm socket screwdriver,
unscrew the 4 nuts connecting the Surge
Protector to the rear panel
Replace the surge protector "body" (grey
part) with a new one
Reinstall and tighten the four nuts
Reconnect the printer cable and return
the printer to its designated location on
the rear panel
Close the SQA-V
Video Control Board
Green light indicator
Pull down and unplug the
32
disassembly
connector
Remove the 4 nuts
