User Guide Version 2.60 I-Button

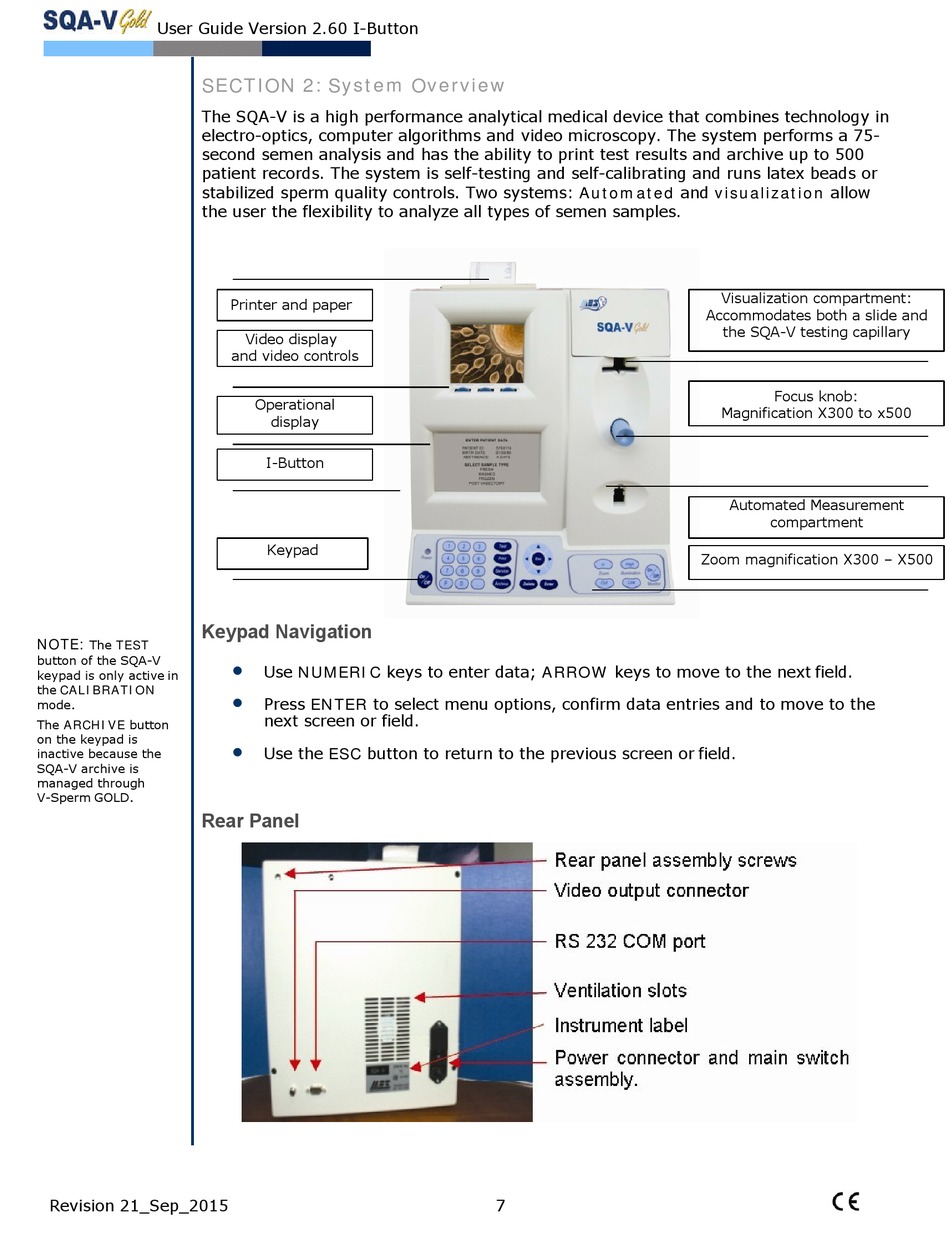

SECTION 2: System Overview
The SQA-V is a high performance analytical medical device that combines technology in
electro-optics, computer algorithms and video microscopy. The system performs a 75-
second semen analysis and has the ability to print test results and archive up to 500
patient records. The system is self-testing and self-calibrating and runs latex beads or
stabilized sperm quality controls. Two systems: Automated and visualization allow
the user the flexibility to analyze all types of semen samples.

Keypad Navigation

NOTE:
The TEST
button of the SQA-V
keypad is only active in
the CALIBRATION
mode.
The ARCHIVE button
on the keypad is
inactive because the
SQA-V archive is
managed through
V- Sperm GOLD.

Rear Panel

Revision 21_Sep_2015
Printer and paper
Video display
and video controls
Operational
display
I-Button
Keypad

Use NUMERIC keys to enter data; ARROW keys to move to the next field.

Press ENTER to select menu options, confirm data entries and to move to the
next screen or field.

Use the ESC button to return to the previous screen or field.
7
Visualization compartment:
Accommodates both a slide and
the SQA-V testing capillary
Focus knob:
Magnification X300 to x500
Automated Measurement
compartment
Zoom magnification X300 – X500
