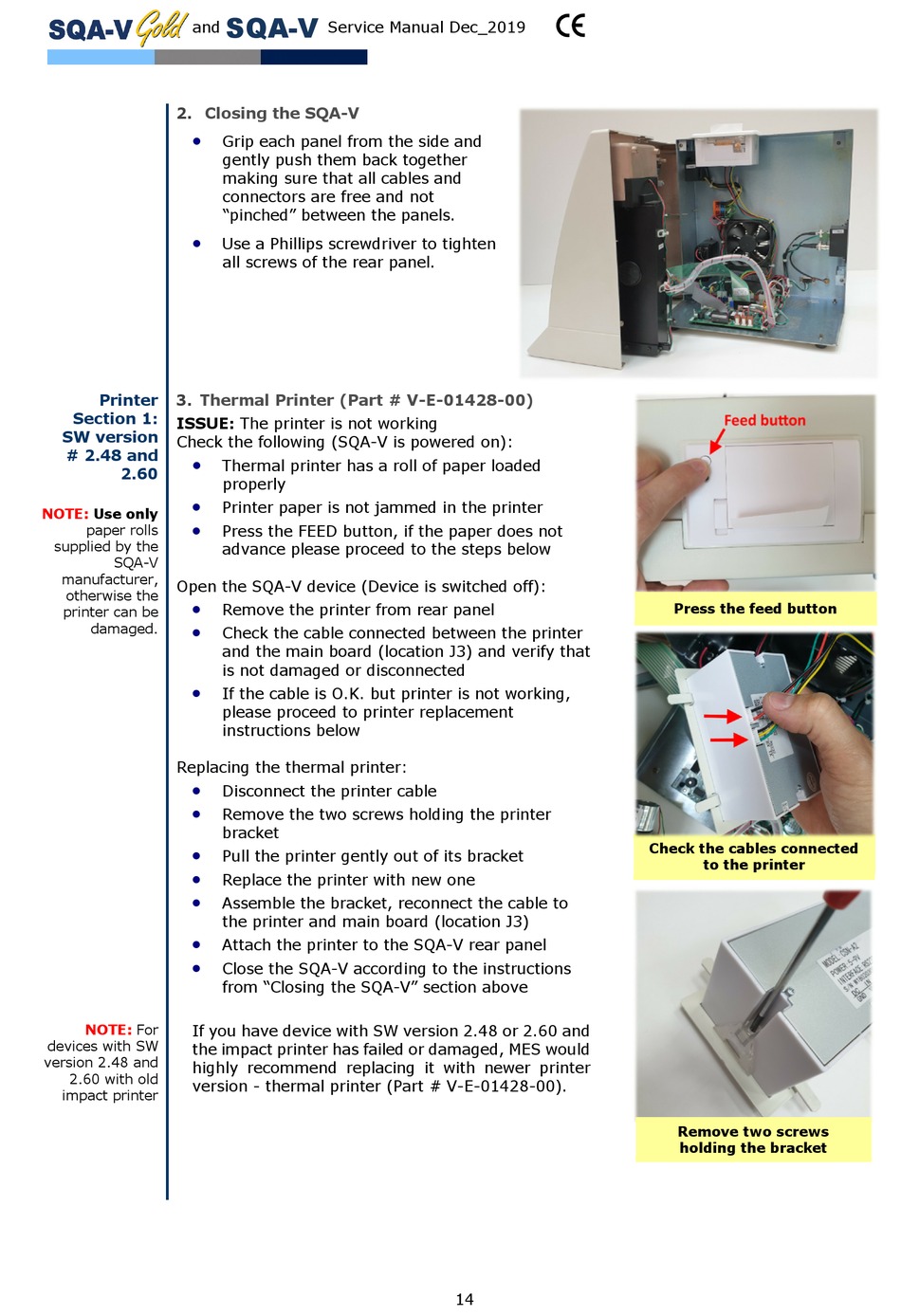

Closing The Sqa-V; Printer (Thermal); Printer (Impact) - MES SQA-V Gold Service Manual

and
2.

Closing the SQA-V



Printer 3. Thermal Printer (Part # V-E-01428-00)
Section 1:
ISSUE: The printer is not working
SW version
Check the following (SQA-V is powered on):
# 2.48 and

2.60

NOTE: Use only

paper rolls
supplied by the
SQA-V
manufacturer,
Open the SQA-V device (Device is switched off):
otherwise the

printer can be
damaged.


Replacing the thermal printer:







NOTE: For If you have device with SW version 2.48 or 2.60 and
devices with SW
the impact printer has failed or damaged, MES would
version 2.48 and
highly recommend replacing it with newer printer
2.60 with old
version - thermal printer (Part # V-E-01428-00).
impact printer
SQA-V
Service Manual Dec_2019
Grip each panel from the side and
gently push them back together
making sure that all cables and
connectors are free and not
"pinched" between the panels.
Use a Phillips screwdriver to tighten
all screws of the rear panel.
Thermal printer has a roll of paper loaded
properly
Printer paper is not jammed in the printer
Press the FEED button, if the paper does not
advance please proceed to the steps below
Remove the printer from rear panel
Check the cable connected between the printer
and the main board (location J3) and verify that
is not damaged or disconnected
If the cable is O.K. but printer is not working,
please proceed to printer replacement
instructions below
Disconnect the printer cable
Remove the two screws holding the printer
bracket
Pull the printer gently out of its bracket
Replace the printer with new one
Assemble the bracket, reconnect the cable to
the printer and main board (location J3)
Attach the printer to the SQA-V rear panel
Close the SQA-V according to the instructions
from "Closing the SQA-V" section above
14
Press the feed button
Check the cables connected
to the printer
Remove two screws
holding the bracket
