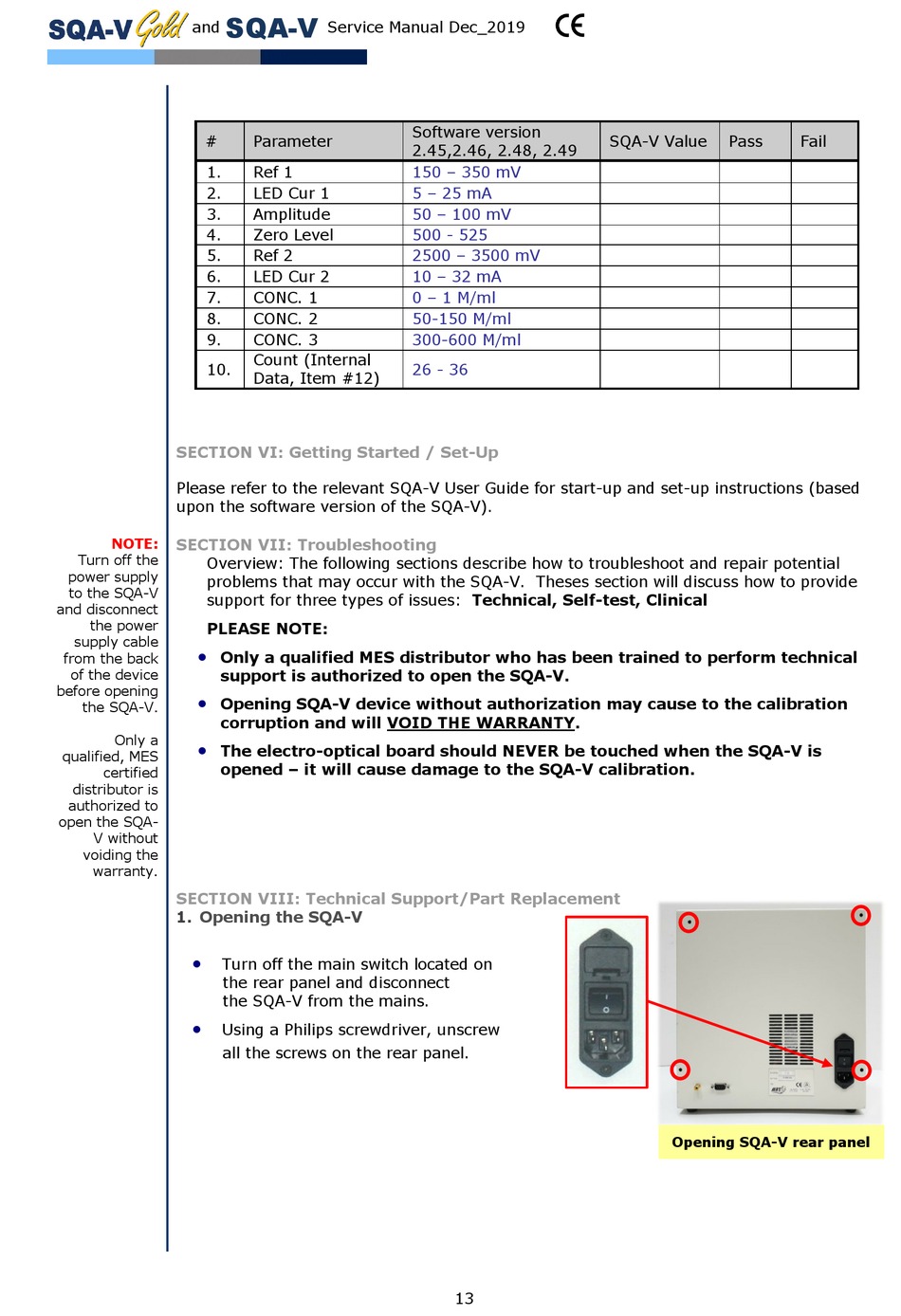

Section Vi: Getting Started / Set Up; Section Vii: Troubleshooting Overview; Opening The Sqa-V - MES SQA-V Gold Service Manual

SQA-V
and
#
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
SECTION VI: Getting Started / Set-Up
Please refer to the relevant SQA-V User Guide for start-up and set-up instructions (based
upon the software version of the SQA-V).
NOTE:
SECTION VII: Troubleshooting
Turn off the
Overview: The following sections describe how to troubleshoot and repair potential
power supply
problems that may occur with the SQA-V. Theses section will discuss how to provide
to the SQA-V
support for three types of issues: Technical, Self-test, Clinical
and disconnect
the power
PLEASE NOTE:
supply cable

Only a qualified MES distributor who has been trained to perform technical
from the back
of the device support is authorized to open the SQA-V.
before opening

Opening SQA-V device without authorization may cause to the calibration
the SQA-V.
corruption and will VOID THE WARRANTY.
Only a

The electro-optical board should NEVER be touched when the SQA-V is
qualified, MES
opened – it will cause damage to the SQA-V calibration.
certified
distributor is
authorized to
open the SQA-
V without
voiding the
warranty.
SECTION VIII: Technical Support/Part Replacement
1.

Opening the SQA-V


Turn off the main switch located on
the rear panel and disconnect
the SQA-V from the mains.

Using a Philips screwdriver, unscrew
all the screws on the rear panel.
Service Manual Dec_2019
Software version
Parameter
2.45,2.46, 2.48, 2.49
Ref 1 150 – 350 mV
LED Cur 1 5 – 25 mA
Amplitude 50 – 100 mV
Zero Level 500 - 525
Ref 2 2500 – 3500 mV
LED Cur 2 10 – 32 mA
CONC. 1 0 – 1 M/ml
CONC. 2 50-150 M/ml
CONC. 3 300-600 M/ml
Count (Internal
26 - 36
Data, Item #12)
SQA-V Value
13
Pass Fail
Opening SQA-V rear panel
