SQA-V
and

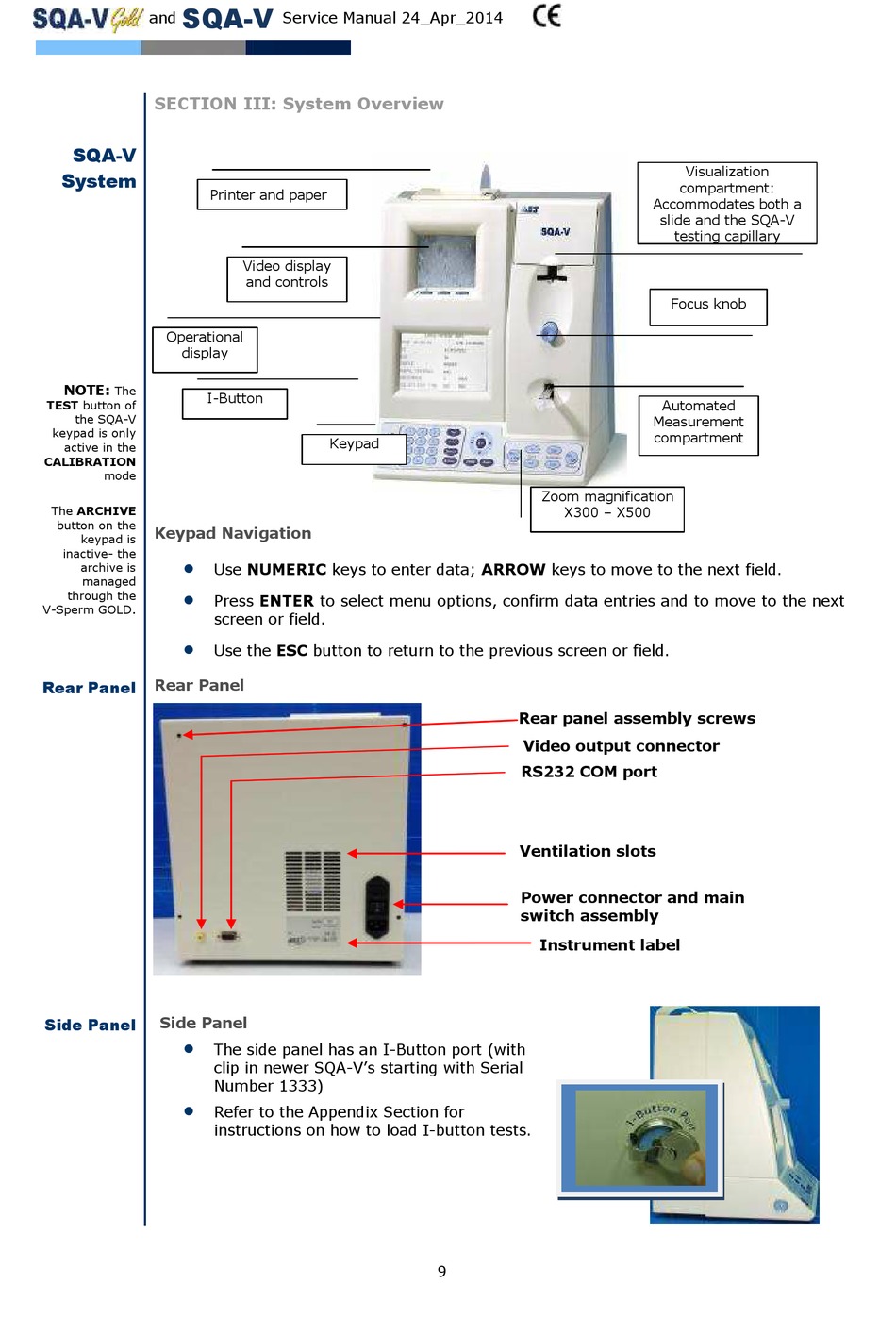

SECTION III: System Overview
SQA-V
System
Operational
display
NOTE:
The
TEST button of
the SQA-V
keypad is only
active in the
CALIBRATION
mode
The ARCHIVE
button on the
Keypad Navigation
keypad is
inactive- the

archive is
managed

through the
V-Sperm GOLD.


Rear Panel

Rear Panel

Side Panel

Side Panel


Service Manual 24_Apr_2014
Printer and paper
Prpaper
Video display
and controls
I-Button
Keypad
Use NUMERIC keys to enter data; ARROW keys to move to the next field.
Press ENTER to select menu options, confirm data entries and to move to the next
screen or field.
Use the ESC button to return to the previous screen or field.
The side panel has an I-Button port (with
clip in newer SQA-V's starting with Serial
Number 1333)
Refer to the Appendix Section for
instructions on how to load I-button tests.
Zoom magnification
X300 – X500
Rear panel assembly screws
Video output connector
RS232 COM port
Ventilation slots
Power connector and main
switch assembly
Instrument label
9
Visualization
compartment:
Accommodates both a
slide and the SQA-V
testing capillary
Focus knob
Automated
Measurement
compartment
