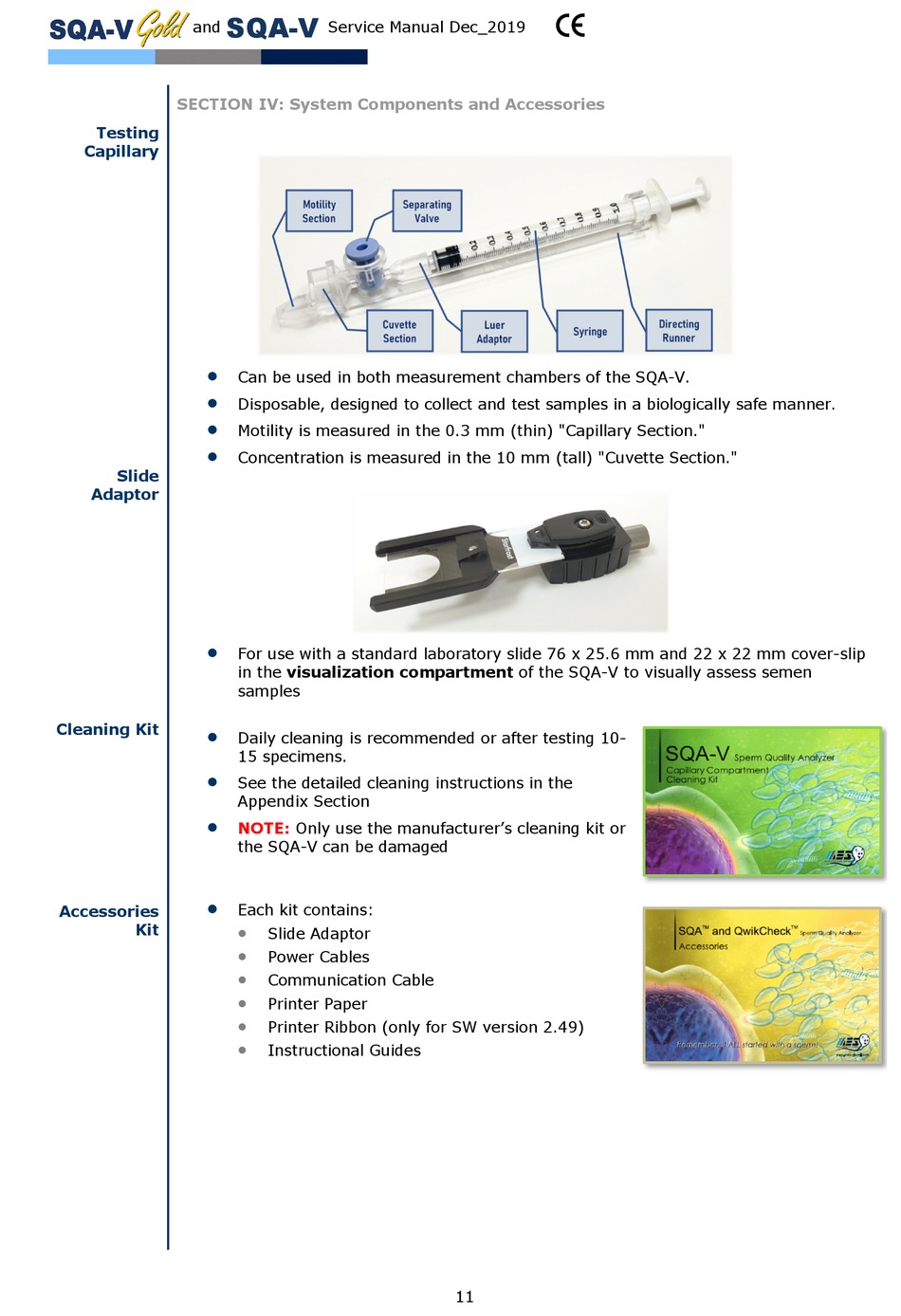

SECTION IV: System Components and Accessories

Testing
Capillary




Slide
Adaptor

Cleaning Kit




Accessories
Kit
Service Manual Dec_2019
Can be used in both measurement chambers of the SQA-V.
Disposable, designed to collect and test samples in a biologically safe manner.
Motility is measured in the 0.3 mm (thin) "Capillary Section."
Concentration is measured in the 10 mm (tall) "Cuvette Section."
For use with a standard laboratory slide 76 x 25.6 mm and 22 x 22 mm cover-slip
in the visualization compartment of the SQA-V to visually assess semen
samples
Daily cleaning is recommended or after testing 10-
15 specimens.
See the detailed cleaning instructions in the
Appendix Section
NOTE: Only use the manufacturer's cleaning kit or
the SQA-V can be damaged
Each kit contains:

Slide Adaptor

Power Cables

Communication Cable

Printer Paper

Printer Ribbon (only for SW version 2.49)

Instructional Guides
11
