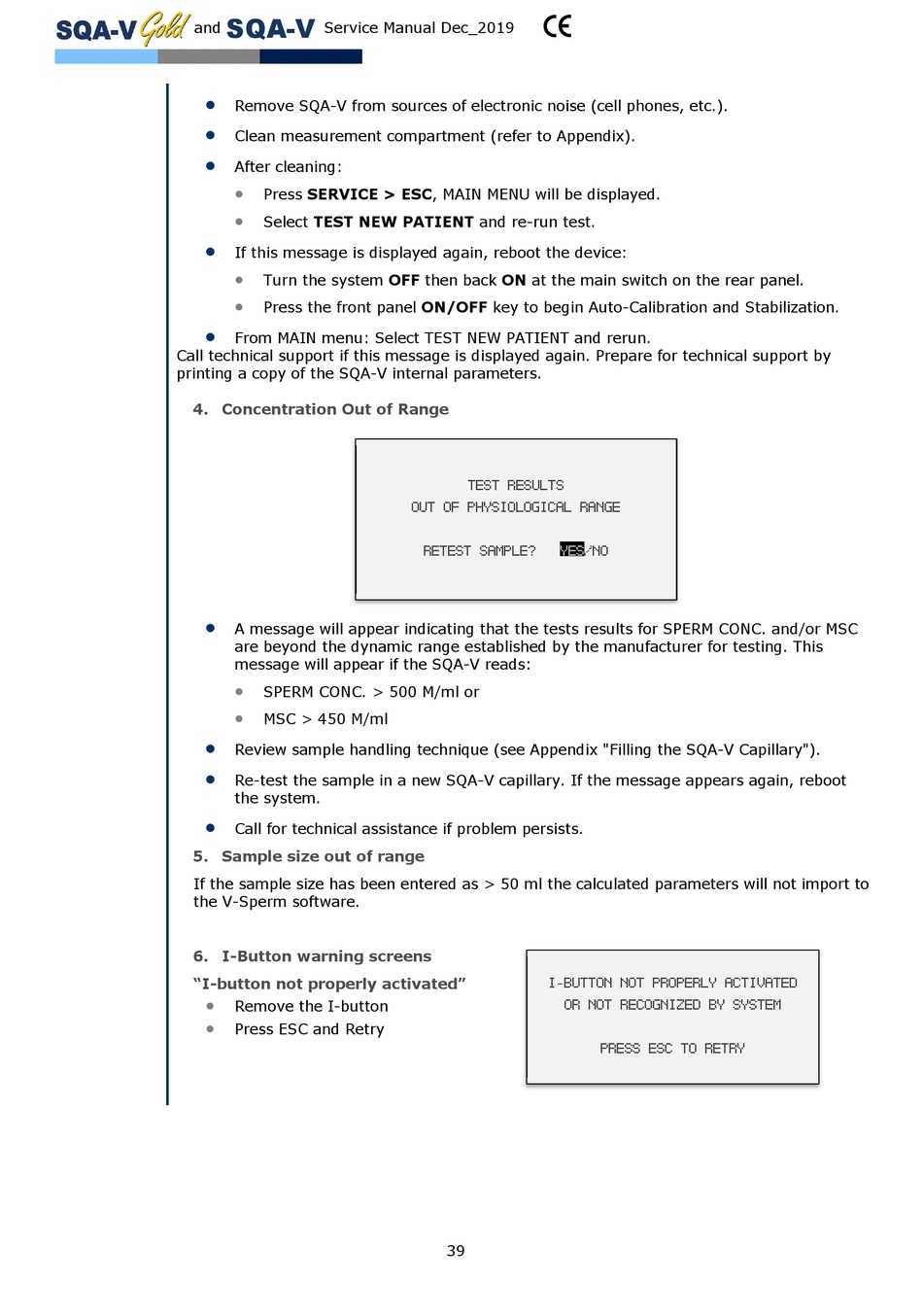

Remove SQA-V from sources of electronic noise (cell phones, etc.).

Clean measurement compartment (refer to Appendix).

After cleaning:

Press SERVICE > ESC, MAIN MENU will be displayed.

Select TEST NEW PATIENT and re-run test.

If this message is displayed again, reboot the device:

Turn the system OFF then back ON at the main switch on the rear panel.

Press the front panel ON/OFF key to begin Auto-Calibration and Stabilization.

From MAIN menu: Select TEST NEW PATIENT and rerun.
Call technical support if this message is displayed again. Prepare for technical support by
printing a copy of the SQA-V internal parameters.
4. Concentration Out of Range

A message will appear indicating that the tests results for SPERM CONC. and/or MSC
are beyond the dynamic range established by the manufacturer for testing. This
message will appear if the SQA-V reads:

SPERM CONC. > 500 M/ml or

MSC > 450 M/ml

Review sample handling technique (see Appendix "Filling the SQA-V Capillary").

Re-test the sample in a new SQA-V capillary. If the message appears again, reboot
the system.

Call for technical assistance if problem persists.
5. Sample size out of range
If the sample size has been entered as > 50 ml the calculated parameters will not import to
the V-Sperm software.
6. I-Button warning screens
"I-button not properly activated"

Remove the I-button

Press ESC and Retry
TEST RESULTS
OUT OF PHYSIOLOGICAL RANGE
RETEST SAMPLE? YES/NO
I-BUTTON NOT PROPERLY ACTIVATED
OR NOT RECOGNIZED BY SYSTEM
39
PRESS ESC TO RETRY
