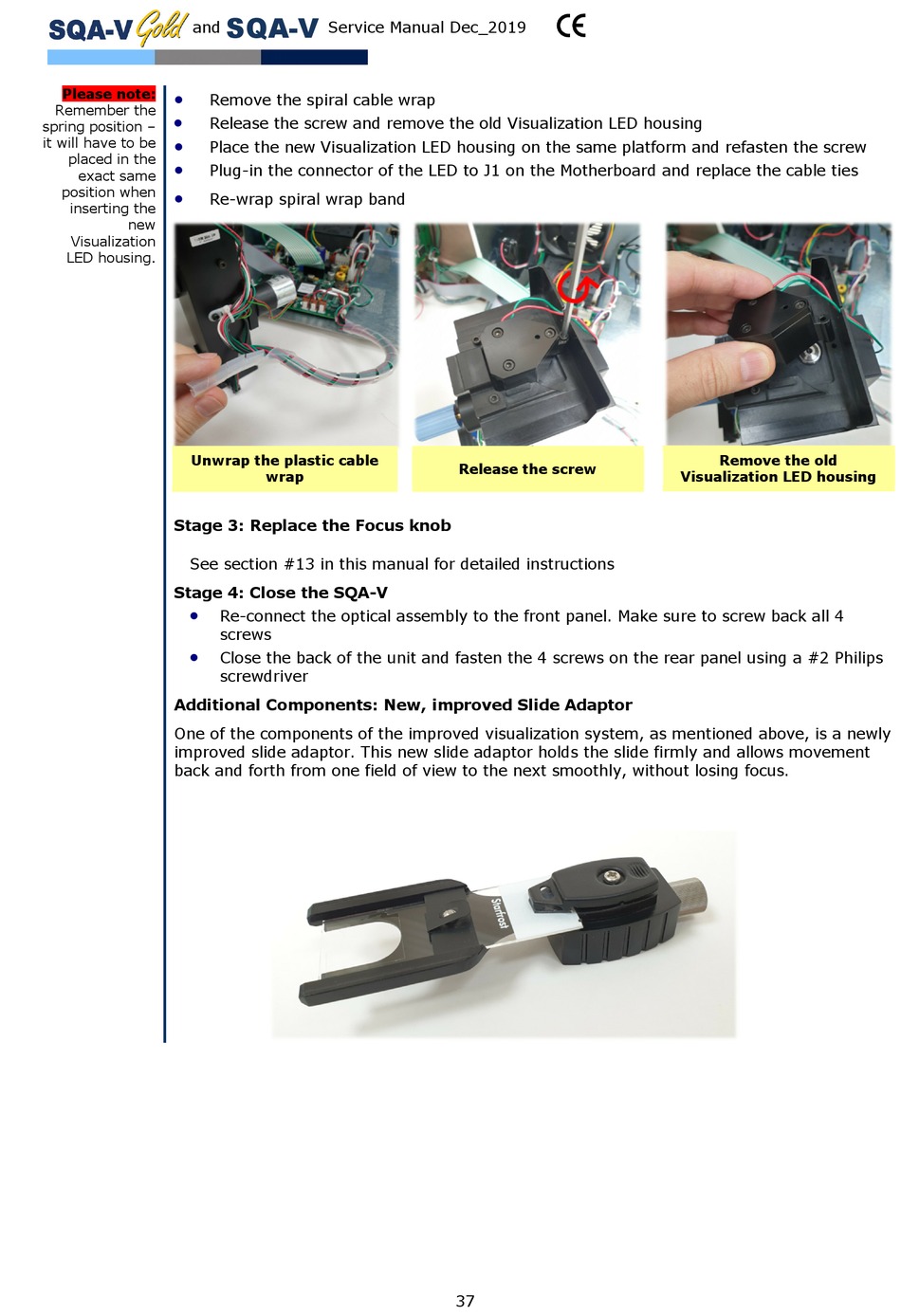

MES SQA-V Gold Service Manual page 37

and
Please note:

Remove the spiral cable wrap
Remember the

Release the screw and remove the old Visualization LED housing
spring position –
it will have to be

Place the new Visualization LED housing on the same platform and refasten the screw
placed in the

Plug-in the connector of the LED to J1 on the Motherboard and replace the cable ties
exact same
position when

Re-wrap spiral wrap band
inserting the
new
Visualization
LED housing.
Unwrap the plastic cable
Stage 3: Replace the Focus knob
See section #13 in this manual for detailed instructions
Stage 4: Close the SQA-V


Additional Components: New, improved Slide Adaptor
One of the components of the improved visualization system, as mentioned above, is a newly
improved slide adaptor. This new slide adaptor holds the slide firmly and allows movement
back and forth from one field of view to the next smoothly, without losing focus.
SQA-V
Service Manual Dec_2019
wrap
Re-connect the optical assembly to the front panel. Make sure to screw back all 4
screws
Close the back of the unit and fasten the 4 screws on the rear panel using a #2 Philips
screwdriver
Release the screw
37
Remove the old
Visualization LED housing
