and
Operation 12.
Monitor

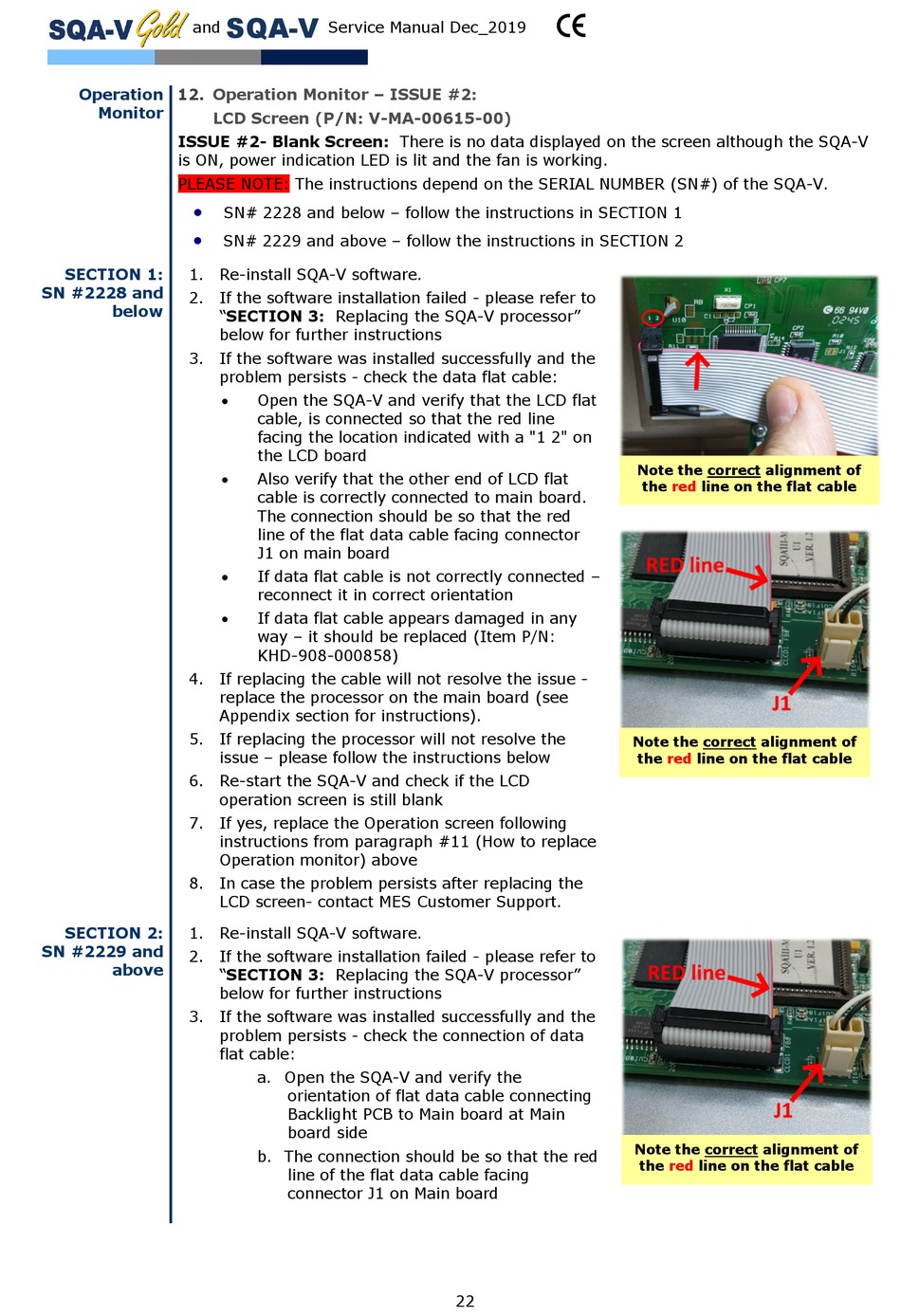

ISSUE #2- Blank Screen: There is no data displayed on the screen although the SQA-V
is ON, power indication LED is lit and the fan is working.
PLEASE NOTE: The instructions depend on the SERIAL NUMBER (SN#) of the SQA-V.


SECTION 1: 1. Re-install SQA-V software.
SN #2228 and
2. If the software installation failed - please refer to
below
3. If the software was installed successfully and the
4. If replacing the cable will not resolve the issue -
5. If replacing the processor will not resolve the
6. Re-start the SQA-V and check if the LCD
7. If yes, replace the Operation screen following
8. In case the problem persists after replacing the
SECTION 2: 1. Re-install SQA-V software.
SN #2229 and
2. If the software installation failed - please refer to
above
3. If the software was installed successfully and the
SQA-V
Service Manual Dec_2019
Operation Monitor – ISSUE #2:
LCD Screen (P/N: V-MA-00615-00)
SN# 2228 and below – follow the instructions in SECTION 1
SN# 2229 and above – follow the instructions in SECTION 2
"SECTION 3: Replacing the SQA-V processor"
below for further instructions
problem persists - check the data flat cable:
Open the SQA-V and verify that the LCD flat

cable, is connected so that the red line
facing the location indicated with a "1 2" on
the LCD board
Also verify that the other end of LCD flat

cable is correctly connected to main board.
The connection should be so that the red
line of the flat data cable facing connector
J1 on main board
If data flat cable is not correctly connected –

reconnect it in correct orientation
If data flat cable appears damaged in any

way – it should be replaced (Item P/N:
KHD-908-000858)
replace the processor on the main board (see
Appendix section for instructions).
issue – please follow the instructions below
operation screen is still blank
instructions from paragraph #11 (How to replace
Operation monitor) above
LCD screen- contact MES Customer Support.
"SECTION 3: Replacing the SQA-V processor"
below for further instructions
problem persists - check the connection of data
flat cable:
a. Open the SQA-V and verify the
orientation of flat data cable connecting
Backlight PCB to Main board at Main
board side
b. The connection should be so that the red
line of the flat data cable facing
connector J1 on Main board
22
Note the correct alignment of
the red line on the flat cable
Note the correct alignment of
the red line on the flat cable
Note the correct alignment of
the red line on the flat cable
