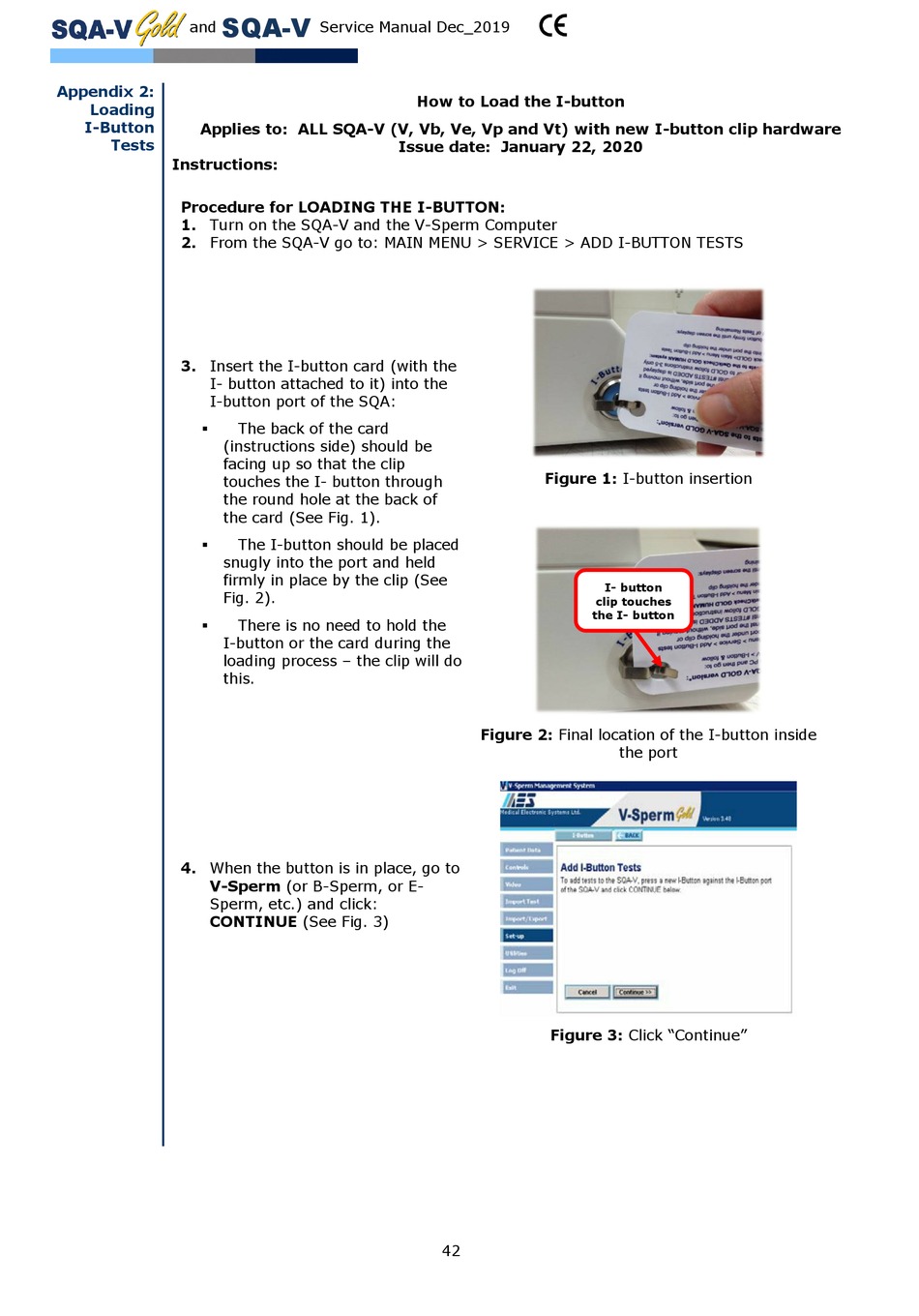

MES SQA-V Gold Service Manual page 42

and
Appendix 2:
Loading
I-Button
Applies to: ALL SQA-V (V, Vb, Ve, Vp and Vt) with new I-button clip hardware
Tests
Instructions:
Procedure for LOADING THE I-BUTTON:
1. Turn on the SQA-V and the V-Sperm Computer
2. From the SQA-V go to: MAIN MENU > SERVICE > ADD I-BUTTON TESTS
3. Insert the I-button card (with the
I- button attached to it) into the
I-button port of the SQA:



4. When the button is in place, go to
V-Sperm (or B-Sperm, or E-
Sperm, etc.) and click:
CONTINUE (See Fig. 3)
SQA-V
Service Manual Dec_2019
The back of the card
(instructions side) should be
facing up so that the clip
touches the I- button through
the round hole at the back of
the card (See Fig. 1).
The I-button should be placed
snugly into the port and held
firmly in place by the clip (See
Fig. 2).
There is no need to hold the
I-button or the card during the
loading process – the clip will do
this.
How to Load the I-button
Issue date: January 22, 2020
Figure 1: I-button insertion
Figure 2: Final location of the I-button inside
Figure 3: Click "Continue"
42
I- button
clip touches
the I- button
the port
